Lynn Cove Foundry [BKIT102] Aluminum Sliding Bahama Shutter Hardware Kit - 48" Sliding Hinge & 22" Hooks - Flat Black

Sliding Bahama Shutter Hardware Kit

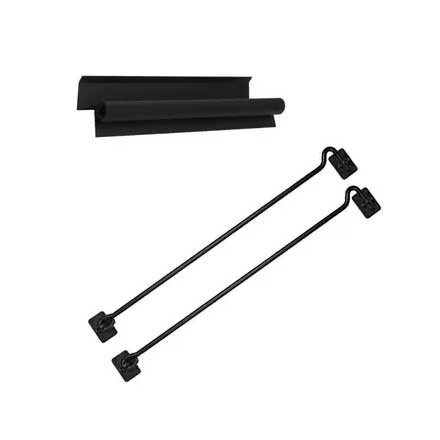

This Sliding Aluminum Bahama Shutter Hardware Kit by Lynn Cove Foundry includes all you need to hang 1 Bahama Shutter and keep open with a pair of Fixed Length 22" Bermuda Shutter Hooks.

Extruded Aluminum Sliding Bahama Shutter Hinge Set:

• Extruded Aluminum Sliding Bahama Shutter Hinge Set - Powder Coat Black
• 48" Long - Field Cut To Length
• FASTENERS NOT INCLUDED
• FASTENER HOLES NOT PRE-DRILLED - Field Drill to Suit
• Set consists of 2 components - when combined, assembly provides 1 1/2" gap from surface (see diagram below for typical installation)
• Traditional installation mounts bar to face of shutter

INSTALLATION SUGGESTIONS:

• Hinge Set will support a shutter weight of up to 200 lbs.
• Structure Hinge - Recommend a screw along the length mounting to the structure every 9” with at least 2” of penetration
• Shutter Hinge - Recommend a screw along the length mounting to the shutter every 12” with at least 3/4” penetration
• The structure & shutter hinge center-line is marked with small groove for fastener positioning

Stainless Steel Shutter Hook

• Shutter Hook with Plate Mounts - Mostly used for holding bahama shutters open
• Stainless Steel, Black Powder Coat
• 22" x 3/8" Bar Width x 1 1/2" Hook
• 1 1/2" x 2" Receiver Plates
• Kit Includes 1 Pair

E-HNG-01 Specifications

Lynn Cove Foundry [E-HNG-01] Sliding Bahama Shutter Hinge Set

Bahama Shutter Set Typical Installation

KS BH22 Specifications

Lynn Cove Foundry [KS BH22] Galvanized Steel Shutter Hook
