Coastal Bronze [400-00-S-LH] Solid Bronze Gate Case Latch Set - Left Hand - 5 1/4" H x 3 1/4" W

Coastal Bronze [400-00-SET-LH] Solid Bronze Gate Case Latch Set - Left Hand - 5 1/4" H x 3 1/4" W

SKU: CB-400-00-S-LH

Your Price: $468.35 + FREE SHIPPING!
List Price: $551.00 You Save: $82.65
QTY:
Print this page.
Average Rating  5 stars | Based on 1 Reviews

Product Details

  • Product Type:Door Case Latch
  • Manufacturer:Coastal Bronze
  • MPN:400-00-S-LH
  • Style:Case Latch
  • Metal:Bronze
  • Size:5" H x 3" W x 3/4" D
  • Function:Passage
  • Handing:Left
  • Fits:Outswing Gates
  • Color:Dark Bronze
  • Finish:Patina

Solid Bronze Drop Bar Gate Case Latch

This Solid Bronze Gate Drop Bar Case Latch Set features a square plate design and is perfect for outswing gates that have narrow stiles and includes your choice of lever, knob or ring turn. This case latch is for left hand door configurations. The drop bar extends 1 1/2" beyond the square plate and latch is operable from both sides.

True to Rustic Gate Hardware Styling, the gate latch set by Coastal Bronze, once installed outdoors, will darken to an old-penny brown then eventually to a greenish/blue patina. These colors compliment the browns and greens in nature and do not distract from the natural beauty of the landscape.

  • Solid Bronze Gate Drop Bar Case Latch Set
  • Left Handed Configuration
  • Use on out swinging gates
  • Drop bar is operable from both sides
  • Pick & Choose Levers, Knobs or Ring
  • 3 1/4" W x 5 1/4" H Case, 3/4" TH
  • Drop Bar extends 1 1/2"
  • Use with gates up to 6" thick - selection required
  • Fasteners included for mounting (1" Oval | #10 Stainless)

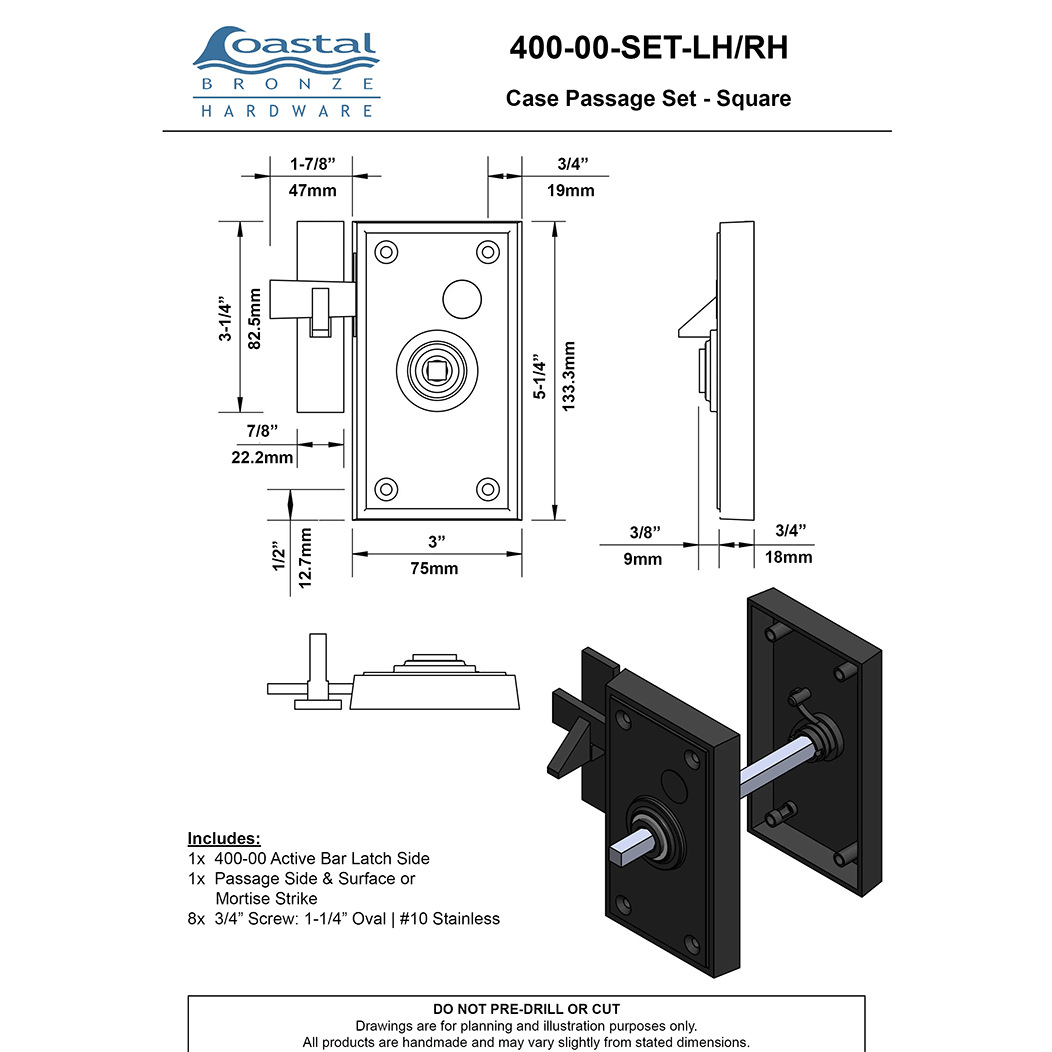

Coastal Bronze 400-00-SET-LH Gate Drop Bar Case Latch:

Coastal Bronze [400-00-SET-LH] Gate Drop Bar Latch

Drop Bar Strike Options:

Drop Bar Strike Options

Ring Option Advisory:

We do not suggest using the "50 - Ring" option on the opposite side as the ring will be too large for the stile and hit the door jamb during the door's outswing. The installation below illustrates the concept.

Coastal Bronze Gate Case Latch Set

Coastal Bronze Gate Case Latch Set

Knob/Lever Options:

  • 10 - Square Lever
  • 10 - Square Lever
  • 4 3/4" L x 2 1/2" Proj.
  • 15 - Square Twist
  • 15 - Square Twist
  • 4 1/8" L x 2 1/2" Proj.
  • 20 - Round Lever
  • 20 - Round Lever
  • 4 3/4" L x 2 1/4" Proj.
  • 30 - Beaver Tail Lever
  • 30 - Beaver Tail Lever
  • 4 1/2" L x 2 1/4" Proj.
  • 40 - Octagonal Lever
  • 40 - Octagonal Lever
  • 6" L x 3" Proj.
  • 50 - Ring
  • 50 - Ring
  • 3 1/2" Dia. x 2 1/4" Proj.
  • 60 - Oval Knob
  • 60 - Oval Knob
  • 2 1/2" W x 1 1/2" H x 2 3/4" Proj.
  • 70 - Small Mushroom Knob
  • 70 - Small Mushroom Knob
  • 2" Dia. x 2 1/2" Proj.
  • 75 - Large Mushroom Knob
  • 75 - Large Mushroom Knob
  • 2 1/4" Dia. x 2 1/2" Proj.

Door Handing

Quick and easy method to determine this, open the door and place your back against the hinges. Which one of your hands is touching the open door?

Door Handing

Gate Stop Warranty Advisory

Potential Damage

The need for a proper gate stop is made apparent when viewing this image of one of our bronze gate handles. The gate stop is an alignment device that can prevent hinge, latch and gate damage and will also help prolong the life of your gate.

Potential Damage

If a gate stop is not installed on your gate, the risk of damage to the gate and its hardware is increased and as a result, normal usage of the gate can result in fractured handles and hinges. The image demonstrates the kind of fracture that can occur when a strong gust of wind or a heavy hand closes the gate without a gate stop.

If installing a gate with Coastal Bronze gate hardware, keep in mind the necessity for the Gate Stop to increase the integrity and life of your gate. This simple piece of hardware can help prevent unnecessary damage to your gate and gate hardware. Additionally, using a gate stop ensures the Coastal Bronze warranty remains intact.

Coastal Bronze Finishes & Lead Times

All of these architectural hardware items by Coastal Bronze are available in 4 finishes: Original (Bronze), Champagne, Midnight and Platinum. Each one fits a different personality and home, bringing a sense of cohesiveness and continuity to your design.

Champagne, Midnight and Platinum finishes are custom order only. Subject to a custom price quote with 8 week lead with a $300 order minimum. Please contact us to discuss order selections and cost details.

Forever Hardware - Finishes

What is bronze?

Bronze is an alloy that contains mostly copper, tin and some lead. It's introduction over 5,000 years ago revolutionized metal work and launched the Bronze Age. By adding tin to copper, workers created a metal that was stronger and impervious to corrosion. Bronze artifacts have been found dating from as early as 3,500 BC.

Coastal Bronze Hardware is pure bronze; 90% Copper and 10% Tin.

Is bronze hardware more beautiful?

Moving from the scientific to the aesthetic, we can assess the superiority of bronze as a feature in the landscape. Bronze has a long history of use as the preferred material for outdoor hardware, partly because of its durability but mainly because it weathers so beautifully.

Once installed outdoors, the metallic bronze hardware darkens to an old-penny brown then eventually to a greenish/blue patina. These colors compliment the browns and greens in nature and do not distract from the natural beauty of the landscape.

About Coastal Bronze

Coastal Bronze - Door, Gate, Barn & Shutter Hardware

Traditional Bronze Hardware for Gates, Doors, Shutter, Barns, Window, and Carriage Doors.

Coastal Bronze specializes in gate hardware for wood or metal gates, door hardware along with barn hardware and a complete line of strap hinges that will accent any gate or door. You will find a complete line of window and shutter hardware.

With a focus on gate hardware, Coastal Bronze fills a gap in the hardware industry for a product that will never rust in extreme outdoor conditions. As the bronze hardware ages, the product will form a greenish patina.
