Cast Iron Curved Offset Shutter Hinge
- Curved Offset Butt Hinge - Loose Pin
- Cast Iron with WeatherWright™ powder coat black for corrosion resistance
- 3" H x 5" Open Width - 1 1/4" Offset
- Can be installed edge mounted (mortised) or surface mounted
- Fasteners Included - #8 x 1 1/4" Black-Zinc Plated
- Sold As Pair - Hangs one (1) shutter

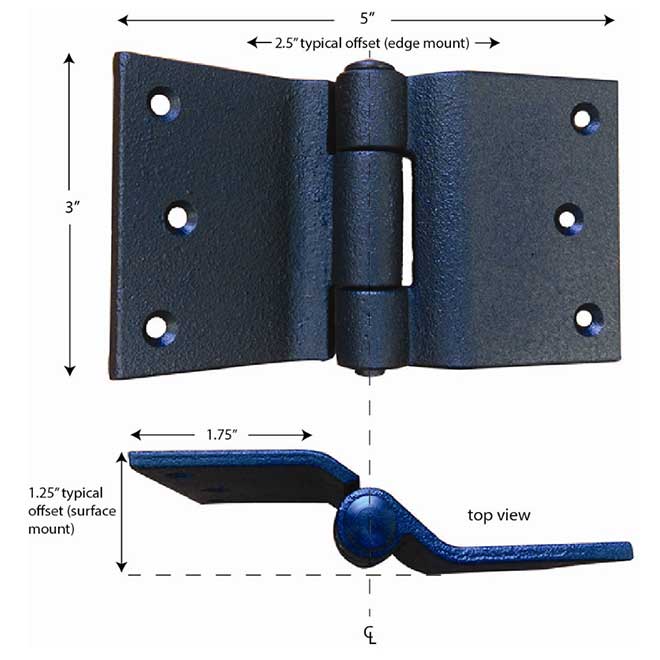

John Wright [088385] Curved Offset Shutter Hinge Specifications:
Typically provides 2 1/2” of throw when edge mounted or 1 1/4” when surface mounted.
![John Wright [088385] Curved Offset Shutter Hinge](/Hardware/John-Wright/Diagrams/Offset-Hinges/John-Wright-088385-Shutter-Offset-Hinge.jpg "John Wright [088385] Curved Offset Shutter Hinge")

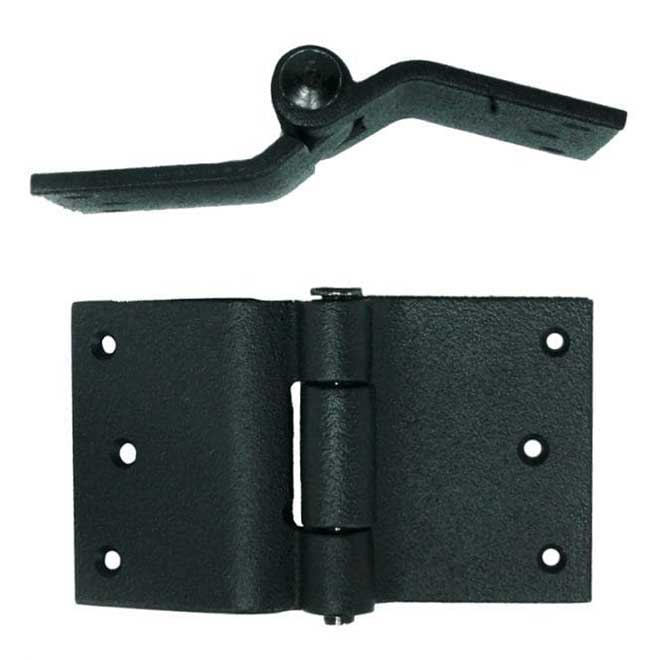

John Wright [088385] Offset Shutter Hinge:
![John Wright [088385] Curved Offset Shutter Hinge](/Hardware/John-Wright/Large/Shutter-Hardware/Offset-Hinges/John-Wright-088385-Shutter-Offset-Hinge.jpg "John Wright [088385] Curved Offset Shutter Hinge")
