Sliding Bahama Shutter Hinge Set
- Extruded Aluminum Sliding Bahama Shutter Hinge Set - Powder Coat White
- 48" Long - Field Cut To Length
- FASTENERS NOT INCLUDED
- FASTENER HOLES NOT PRE-DRILLED - Field Drill to Suit
- Set consists of 2 components - when combined, assembly provides 1 1/2" gap from surface (see diagram below for typical installation)
- Traditional installation mounts bar to face of shutter
INSTALLATION SUGGESTIONS:
- Hinge Set will support a shutter weight of up to 200 lbs.
- Structure Hinge - Recommend a screw along the length mounting to the structure every 9”
with at least 2” of penetration
- Shutter Hinge - Recommend a screw along the length mounting to the shutter every 12” with at least 3/4” penetration
- The structure & shutter hinge center-line is marked with small groove for fastener positioning
E-HNG-01 Specifications
![Lynn Cove Foundry [E-HNG-01] Extruded Aluminum Sliding Bahama Shutter Hinge Set](/Hardware/Lynn-Cove-Foundry/Diagrams/Shutter-Hinges/Lynn-Cove-Foundry-E-HNG-01-Extruded-Aluminum-Bahama-Shutter-Hinge-001.png "Lynn Cove Foundry [E-HNG-01] Extruded Aluminum Sliding Bahama Shutter Hinge Set")
![Lynn Cove Foundry [E-HNG-01] Extruded Aluminum Sliding Bahama Shutter Hinge Set](/Hardware/Lynn-Cove-Foundry/Diagrams/Shutter-Hinges/Lynn-Cove-Foundry-E-HNG-01-Extruded-Aluminum-Bahama-Shutter-Hinge-002.png "Lynn Cove Foundry [E-HNG-01] Extruded Aluminum Sliding Bahama Shutter Hinge Set")

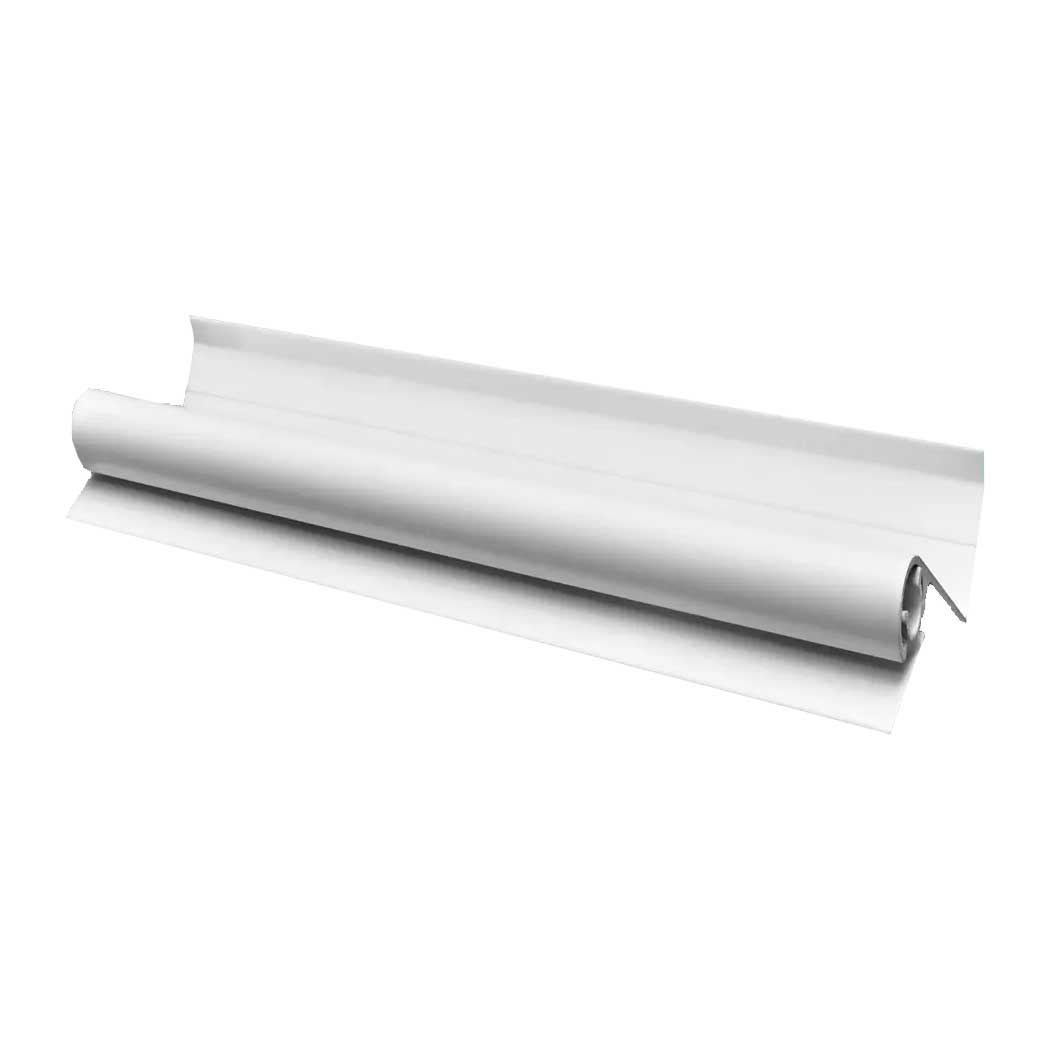

Lynn Cove Foundry [E-HNG-01-W] Sliding Bahama Shutter Hinge Set
![Lynn Cove Foundry [E-HNG-01-W] Extruded Aluminum Sliding Bahama Shutter Hinge Set](/Hardware/Lynn-Cove-Foundry/Large/Bahama-Shutter/Hinges/Lynn-Cove-Foundry-EHNG01W-Bahama-Shutter-Hinge.jpg "Lynn Cove Foundry [E-HNG-01-W] Extruded Aluminum Sliding Bahama Shutter Hinge Set")
Bahama Shutter Set Typical Installation
