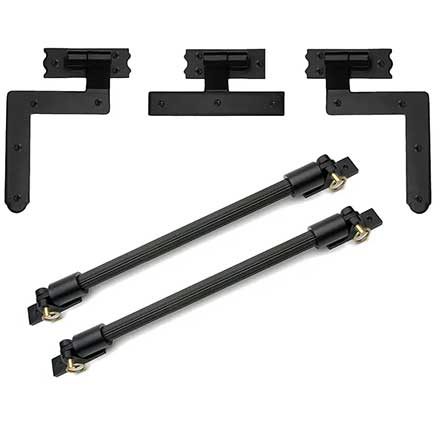

Lynn Cove Foundry [BKIT110] Galvanized Steel Bahama Shutter Hardware Kit - New York Style Pintle / Hinge & 14" Fixed Stays - Flat Black

Galvanized Steel Bahama Shutter Hardware Kit

This Galvanized Steel Bahama Shutter Hardware Kit by Lynn Cove Foundry includes all you need to hang 1 Bahama Shutter and keep open with a pair of Fixed Length 14" Bermuda Shutter Cast Aluminum Stays.

Galvanized Steel Bahama Shutter New York Style Hinge & Pintle Set:

• Galvanized Steel Bahama Shutter Hinge and Pintle Set
• New York Style Hardware - 3/8" Dia. Pin
• 1 Pair of "L" Hinges with 0" Offset
• 1 Single Center Hinge with 0" Offset
• 1.5 Pair of NY Plate Pintles with 1 1/4" offset
• Complete set for 1 bahama shutter
• Traditional installation mounts hinges on face of bahama shutter
• Includes: (12) #8 x 3/4" Panhead Phillips Black SS
• Includes: (10) #8 x 1 1/2" Panhead Phillips Black SS

Item Dimensions:

• (2) 4 1/4" H x 4 5/8" W L Hinges (0" Offset)
• (1) 4 1/4" H x 2 1/2" W Center Hinge (0" Offset)
• (3) 3 3/4" H x 1 1/4" W x 3/8" Dia. Pintles (1 1/4" Offset)

Cast Aluminum Bahama Shutter Stay:

• Fixed Bahama Shutter Stay - 14" L
• Cast Aluminum, Black Powder Coat
• 14" x 3 1/2" x 1 1/8" Horizontal Sill Mount x 1 1/8" x 3 1/2" Vertical Wall Mount
• 1 1/2" Projection
• 1" Diameter Bar
• Optional sill mounts included
• Includes (12) #8 x 1" Panhead Phillips Black Stainless Steel
• Kit Includes 1 Pair

E-HNG-05 Specifications

Lynn Cove Foundry [E-HNG-05] Galvanized Steel Bahama Shutter Hinge Set

Bahama Shutter Set Typical Installation

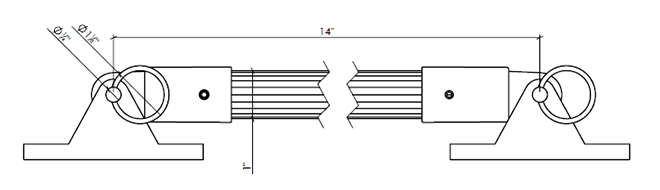

BAHM-S0 Specifications

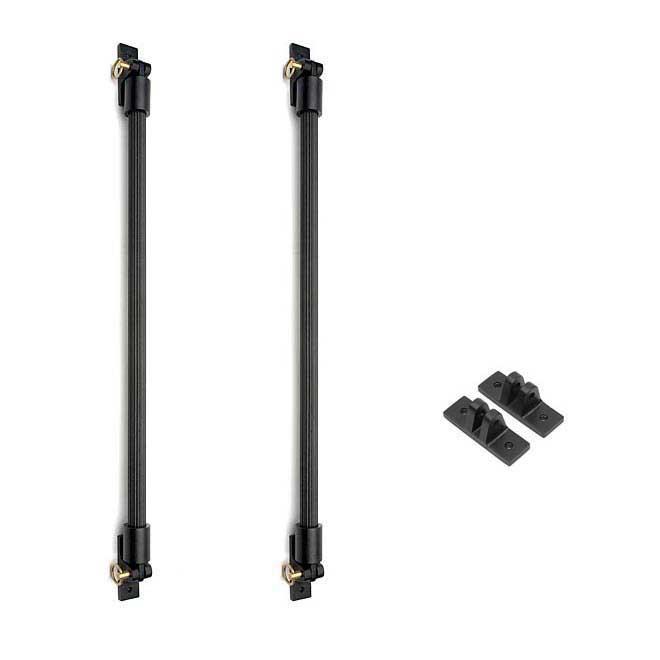

Lynn Cove Foundry [BAHM-S0] Cast Aluminum Bahama Shutter Stay

Bahama Shutter Stay Brackets

Weather resistant; These Bahama shutter stays also feature locking mounting brackets so that the shutter can be closed and fastened if a storm approaches. 1 Pair of shutter stays includes the following brackets below.

Bahama Shutter Stay Cut To Length

These Bahama Shutter Stays can be field cut to length. The bracket shoulder can be removed by loosening the set screw with an allen key (included) and bar can be cut to any desired length.
