Lynn Cove Foundry [BKIT109] Galvanized Steel Bahama Shutter Hardware Kit - New York Style Pintle / Hinge & 22" Hooks - Flat Black

Galvanized Steel Bahama Shutter Hardware Kit

This Galvanized Steel Bahama Shutter Hardware Kit by Lynn Cove Foundry includes all you need to hang 1 Bahama Shutter and keep open with a pair of Fixed Length 22" Bermuda Shutter Hooks.

Galvanized Steel Bahama Shutter New York Style Hinge & Pintle Set:

• Galvanized Steel Bahama Shutter Hinge and Pintle Set
• New York Style Hardware - 3/8" Dia. Pin
• 1 Pair of "L" Hinges with 0" Offset
• 1 Single Center Hinge with 0" Offset
• 1.5 Pair of NY Plate Pintles with 1 1/4" offset
• Complete set for 1 bahama shutter
• Traditional installation mounts hinges on face of bahama shutter
• Includes: (12) #8 x 3/4" Panhead Phillips Black SS
• Includes: (10) #8 x 1 1/2" Panhead Phillips Black SS

Item Dimensions:

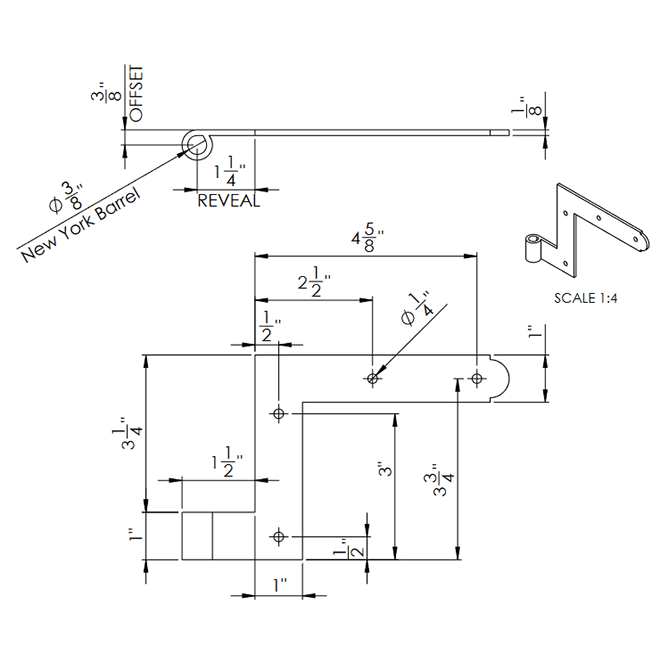

• (2) 4 1/4" H x 4 5/8" W L Hinges (0" Offset)

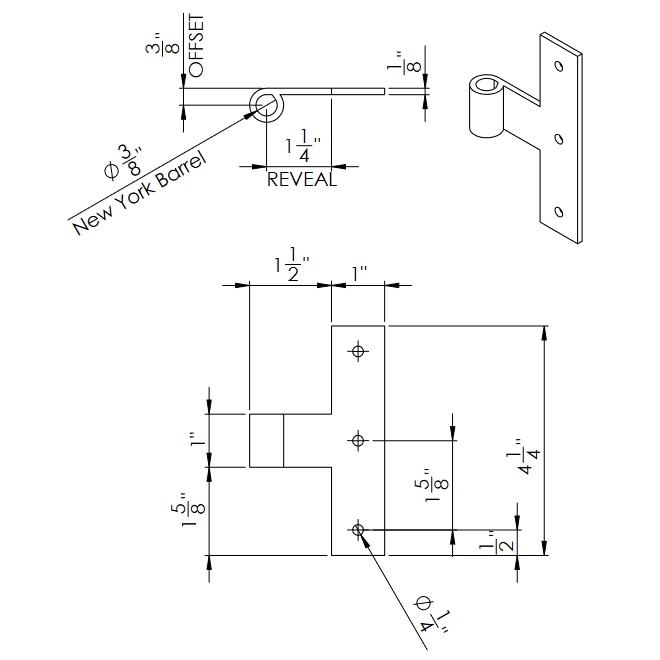

• (1) 4 1/4" H x 2 1/2" W Center Hinge (0" Offset)

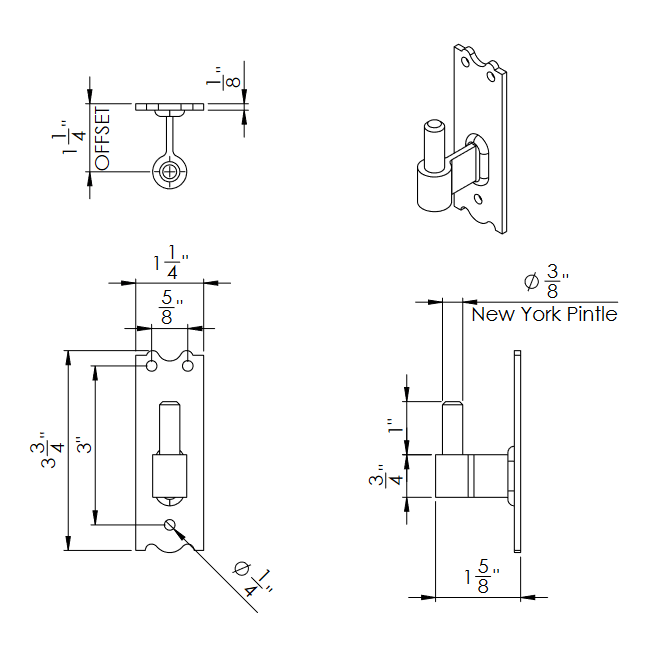

• (3) 3 3/4" H x 1 1/4" W x 3/8" Dia. Pintles (1 1/4" Offset)

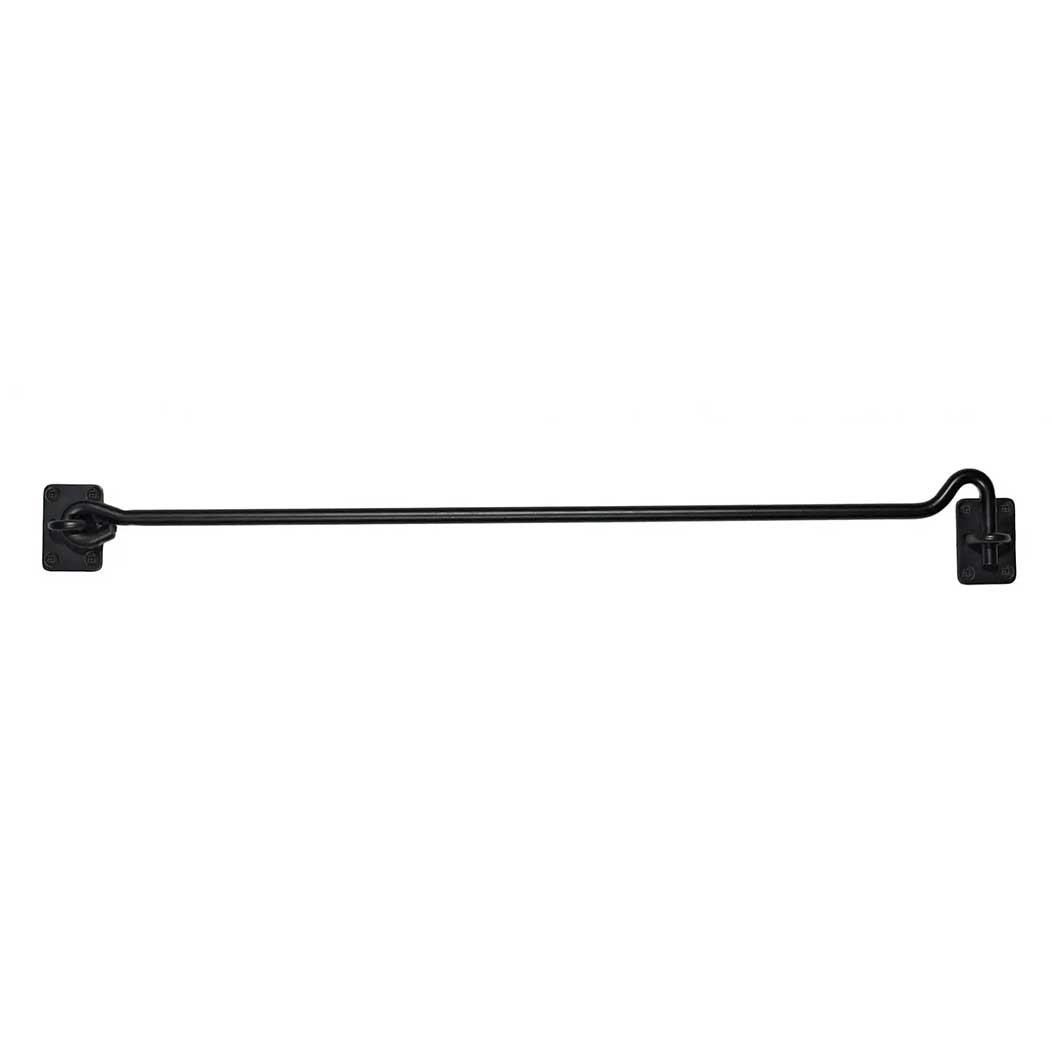

Stainless Steel Shutter Hook

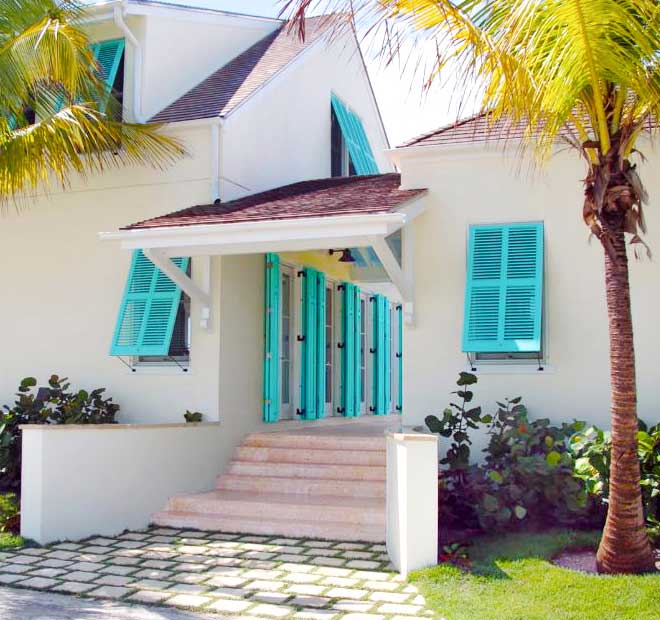

• Shutter Hook with Plate Mounts - Mostly used for holding bahama shutters open
• Stainless Steel, Black Powder Coat
• 22" x 3/8" Bar Width x 1 1/2" Hook
• 1 1/2" x 2" Receiver Plates
• Kit Includes 1 Pair

E-HNG-05 Specifications

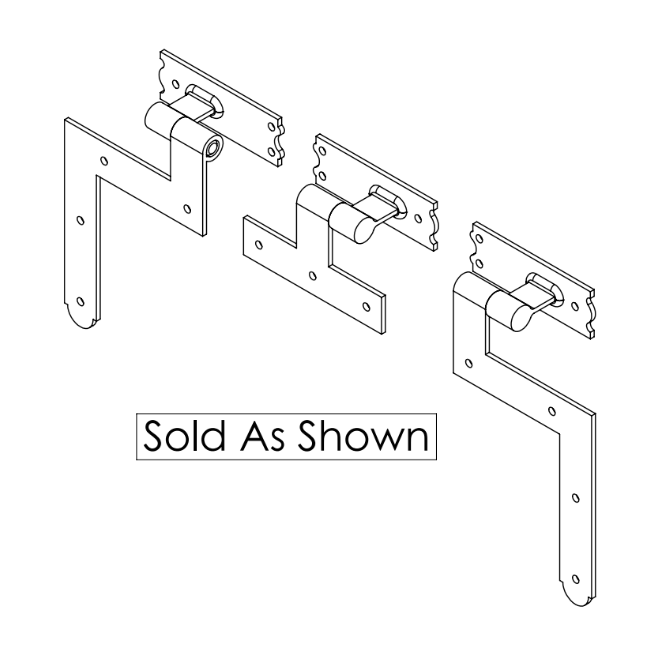

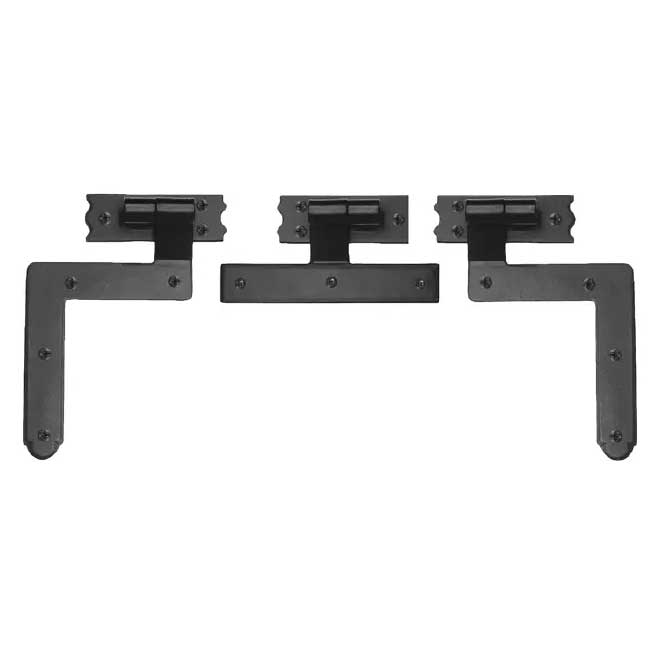

Lynn Cove Foundry [E-HNG-05] Galvanized Steel Bahama Shutter Hinge Set

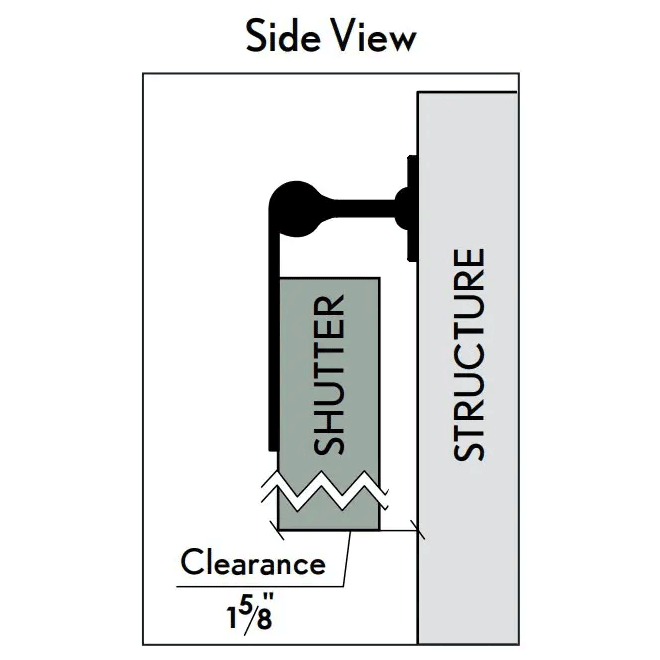

Bahama Shutter Set Typical Installation

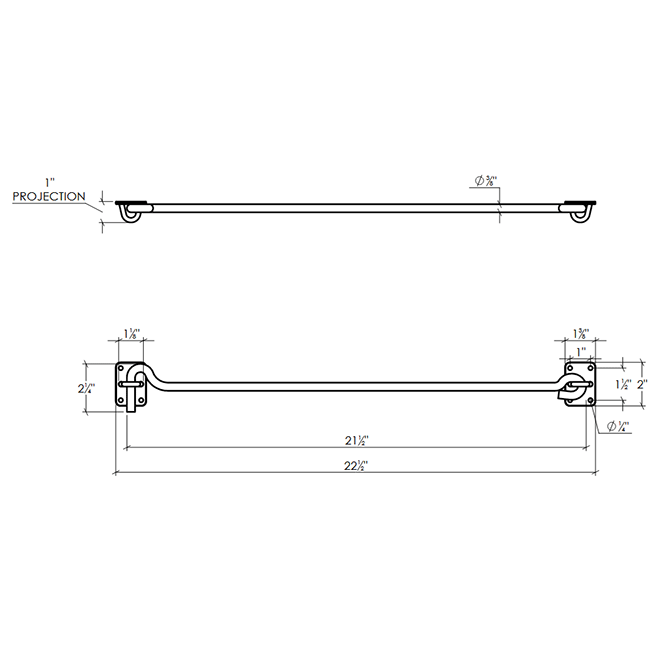

KS BH22 Specifications

Lynn Cove Foundry [KS BH22] Galvanized Steel Shutter Hook
