Lynn Cove Foundry [BKIT104] Galvanized Steel Bahama Shutter Hardware Kit - Pintle / Hinge & Adjustable Stays - Flat Black

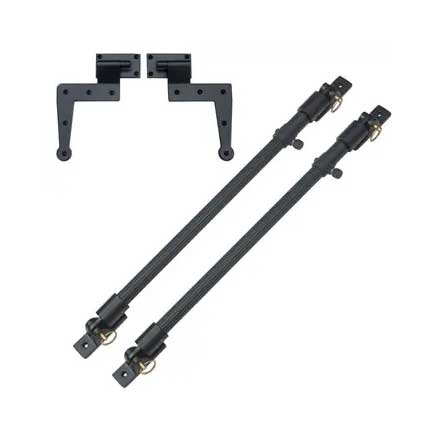

Galvanized Steel Bahama Shutter Hardware Kit

This Galvanized Steel Bahama Shutter Hardware Kit by Lynn Cove Foundry includes all you need to hang 1 Bahama Shutter and keep open with a pair of Adjustable Length 22"-34" Bermuda Shutter Stays.

Galvanized Steel Bahama Shutter Hinge and Pintle Set:

• 1 Pair of "L" Hinges with 1/2" Offset
• 1 Pair of Square Plate Pintles with 1" offset
• Complete set for 1 bahama shutter
• Traditional installation mounts shutter on face of L Hinge
• Includes: (10) #8 x 3/4" Panhead Phillips Black SS
• Includes: (8) #8 x 1 1/2" Panhead Phillips Black SS

Item Dimensions:

• (2) 6" L x 5" W Hinges (1/2" Offset)
• (2) 3 1/2" H x 2" W x 1/2" Dia. Pintles (1" Offset)

Cast Aluminum Bahama Shutter Stay:

• Telescoping Bahama Shutter Stay - 22-34" L
• Cast Aluminum, Black Powder Coat
• 22-34" x 3 1/2" x 1 1/8" Horizontal Sill Mount x 1 1/8" x 3 1/2" Vertical Wall Mount
• 1 1/2" Projection
• 1" Diameter Bar
• Optional sill mounts included
• Includes (12) #8 x 1" Panhead Phillips Black Stainless Steel
• Kit Includes 1 Pair

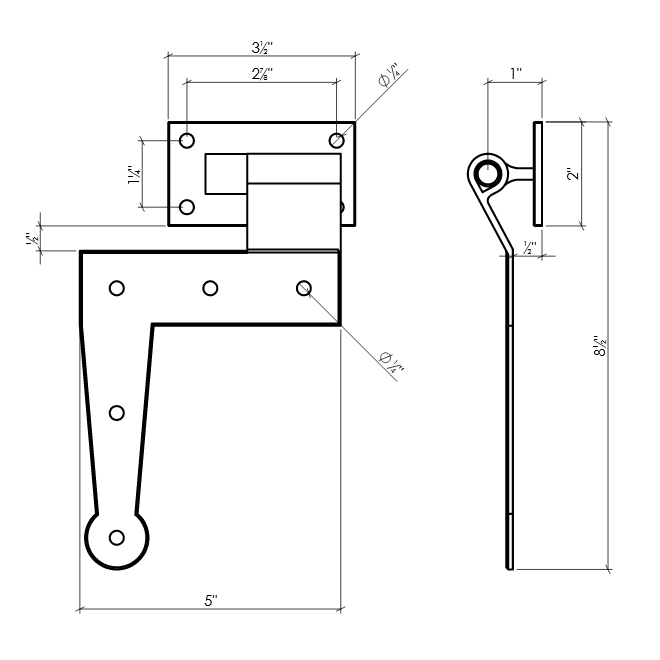

E-HNG-02 Specifications

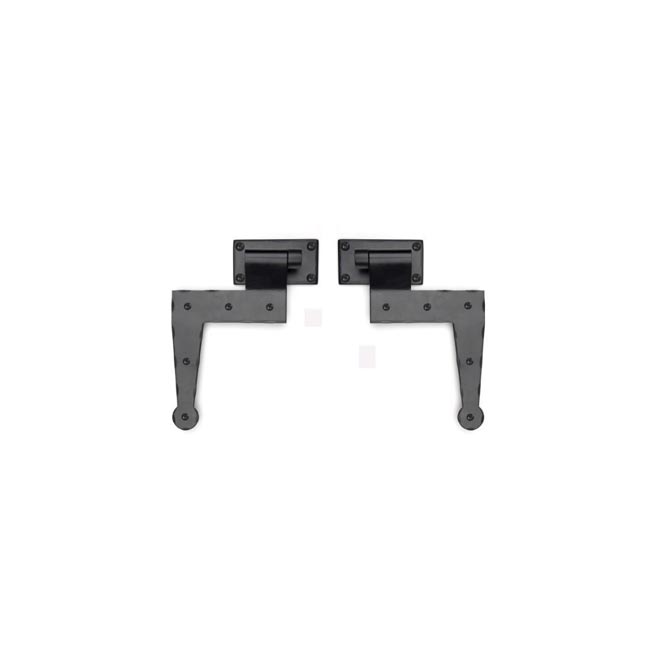

Lynn Cove Foundry [E-HNG-02] Galvanized Steel Bahama Shutter Hinge Set

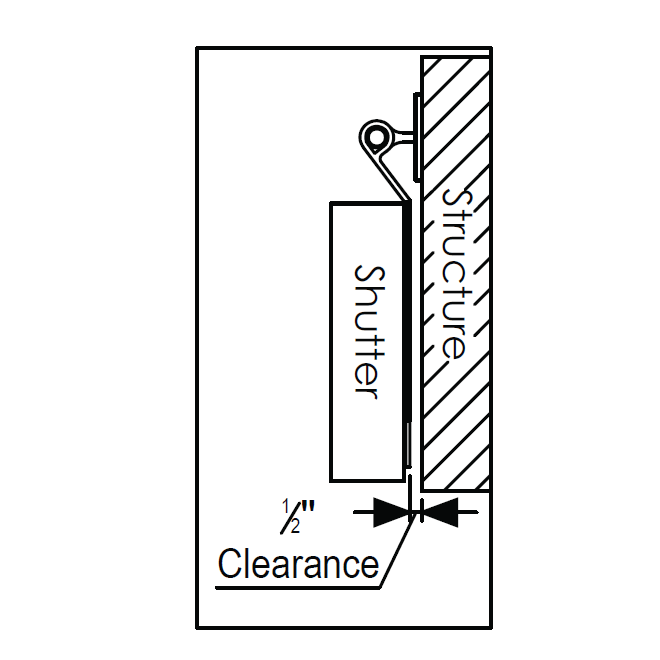

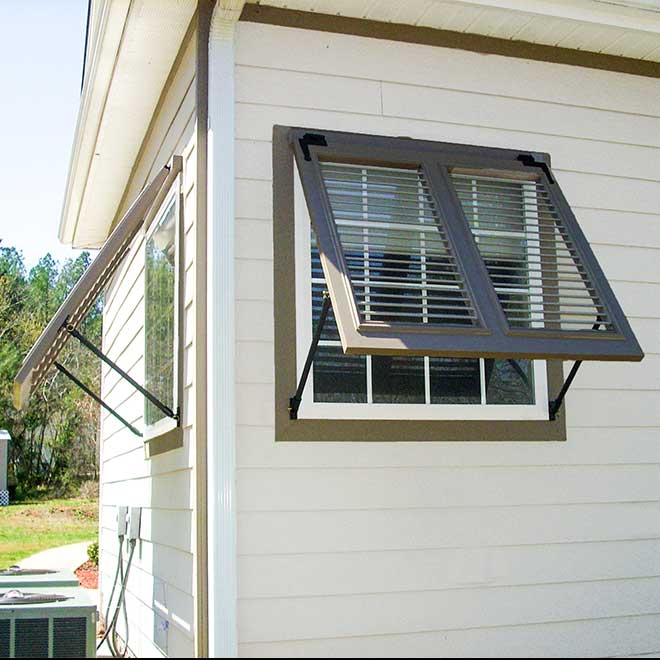

Bahama Shutter Set Typical Installation

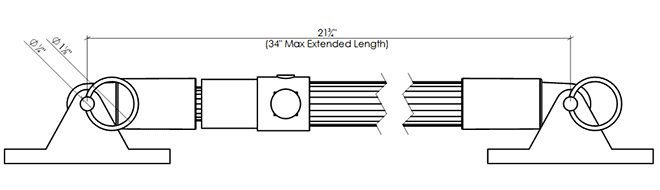

BAHM-S3 Specifications

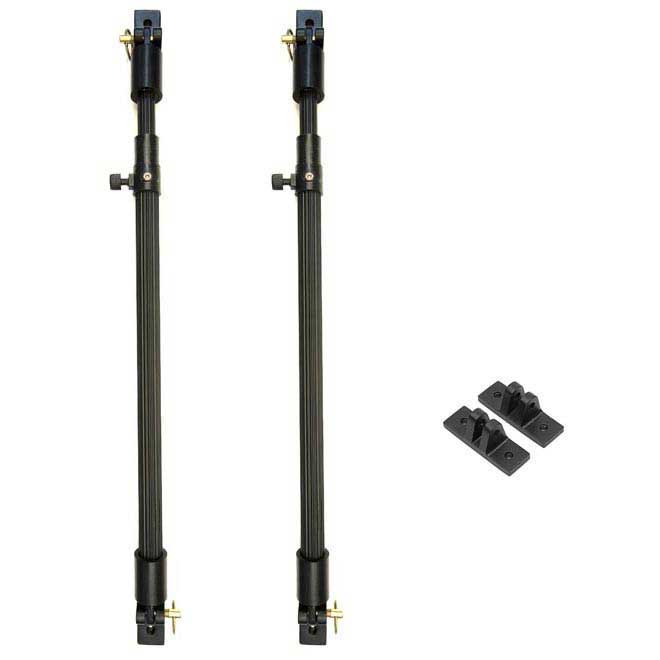

Lynn Cove Foundry [BAHM-S3] Cast Aluminum Bahama Shutter Stay

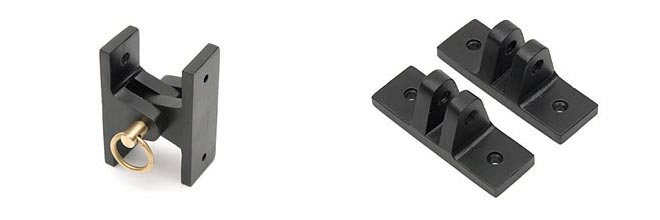

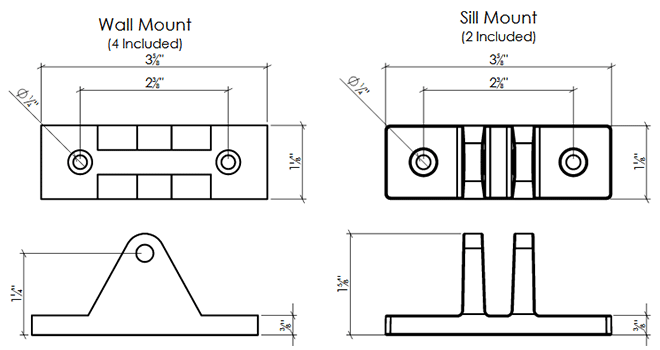

Bahama Shutter Stay Brackets

Weather resistant; These Bahama shutter stays also feature locking mounting brackets so that the shutter can be closed and fastened if a storm approaches.

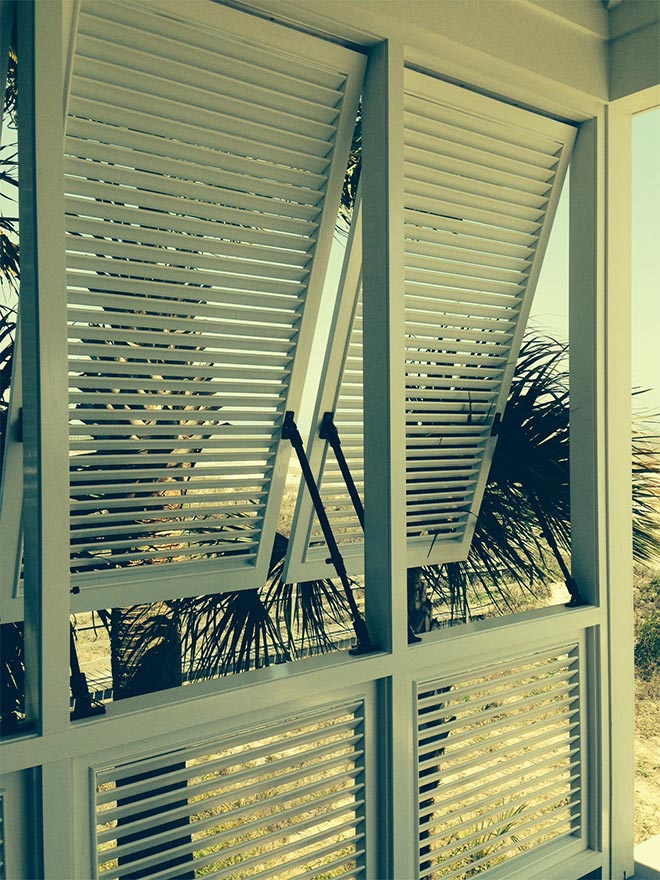

Bahama Shutter Stay Typical Installation

These Bahama Shutter Stays allow the shutters to be positioned at various angles. They can be opened just a little to allow airflow, or more to provide shade.
