Heavy Duty Gate Strap Hinge
- Heavy Duty Gate Strap Hinge - Flat - 24" L
- Black (BPPCG) Finish
- Strap: 24" L x 2 1/4" W, 3/16" TH
- Forged steel construction
- Pair with 3/4" dia. pintles
- Fasteners not included - see related items
- Priced Per Pair
CARRIAGE BOLTS - Carriage bolts are required for each hinge. The first hole in each hinge uses a 1/2" dia. bolt. The remaining holes use 3/8” dia. bolts. These are not included with the hinge pairs because the length of bolt needed will vary with each installation. Order bolts 1” longer than the overall thickness of your gate or door.
Straps and bolts are sold in pairs. Each pair of straps will require:
- 12" Strap: 1 Pair @ 1/2" Dia. & 2 Pairs @ 3/8" Dia.
- 18" Strap: 1 Pair @ 1/2" Dia. & 2 Pairs @ 3/8" Dia.
- 24" Strap: 1 Pair @ 1/2" Dia. & 2 Pairs @ 3/8" Dia.
- 36" Strap: 1 Pair @ 1/2" Dia. & 3 Pairs @ 3/8" Dia.
FINISH - BPPCG is an acronym for Black Polyester Powder Coat over Galvanize. In addition to our Hot Dipped Galvanize Finish and Black / White Powder Coat Finishes, we also offer a wide range of our hardware with a BPPCG Finish. Our carbon steel products are hot dip galvanized, cleaned, e-coated and then powder coated as part of the BPPCG process. In the event of surface damage, this multi-layered protective coating minimizes the potential spread of corrosion. The Snug Cottage Hardware BPPCG finishing process is far superior to products coated over raw carbon steel and allows us to offer a wide range of larger hardware options, that are rust free, without the extra cost of producing them from stainless steel.

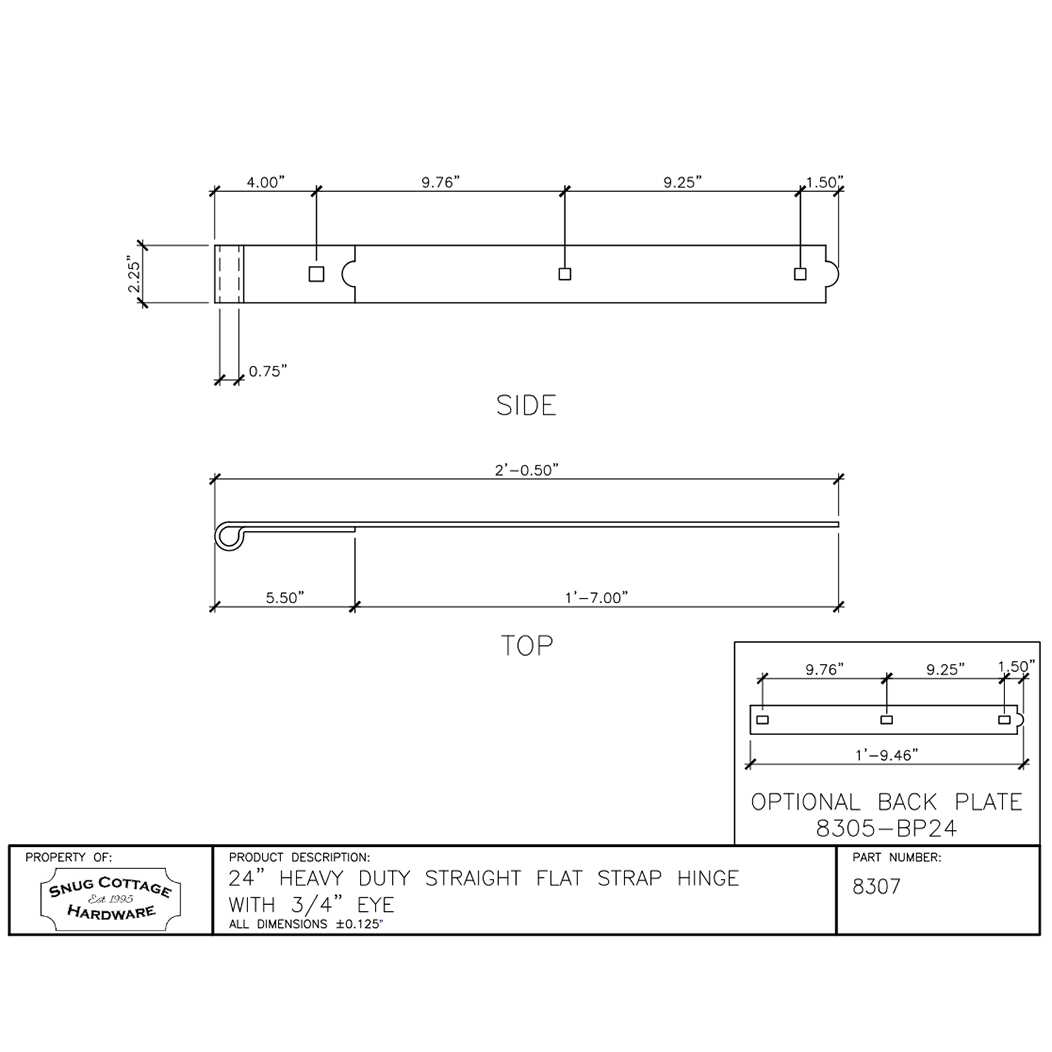

Snug Cottage [8307-24] Gate Strap Hinge Specifications:
