Steel Gate Strap Hinge
This Black (BPPCG) Finish 7" forged heavy steel gate strap hinge set from the Signature Collection by Snug Cottage Hardware features a traditional design originating back in the 1800’s and are incredibly strong. Intended for wood applications including gates, barns, garages, garden sheds, outdoor showers and carriage houses.
- Forged Heavy Duty Steel Strap Hinge Set w/ Cast Iron Cups
- Black (BPPCG) Finish
- Strap: 12" L x 1 1/2" W, 1/2" Dia. Pin
- Cup: 2 3/8" W
- Non-Handed - Reversible
- Install Flush or Offset
- Fasteners Included - #12 x 2" SS Wood Screws
- Price Per Pair - Carriage bolts not included - See related items below
CARRIAGE BOLTS - A carriage bolt is required for each hinge. Hinge sizes 7” to 16” require 3/8” dia. bolts and 18” to 36” require ½” dia. bolts. These are not included with the hinge pairs because the length of bolt needed will vary with each installation. Order bolts 1” longer than the overall thickness of your gate or door.
FINISH - BPPCG is an acronym for Black Polyester Powder Coat over Galvanize. Snug Cottage carbon steel products are hot dip galvanized, cleaned, e-coated and then powder coated as part of the BPPCG process. In the event of surface damage, this multi-layered protective coating minimizes the potential spread of corrosion. The Snug Cottage Hardware BPPCG finishing process is far superior to products coated over raw carbon steel and allows them to offer a wide range of larger hardware options, that are rust free, without the extra cost of producing them from stainless steel.
Snug Cottage [8292-12SP] Gate Strap Hinge:
Snug Cottage Old Fashioned Gate Strap Hinges:

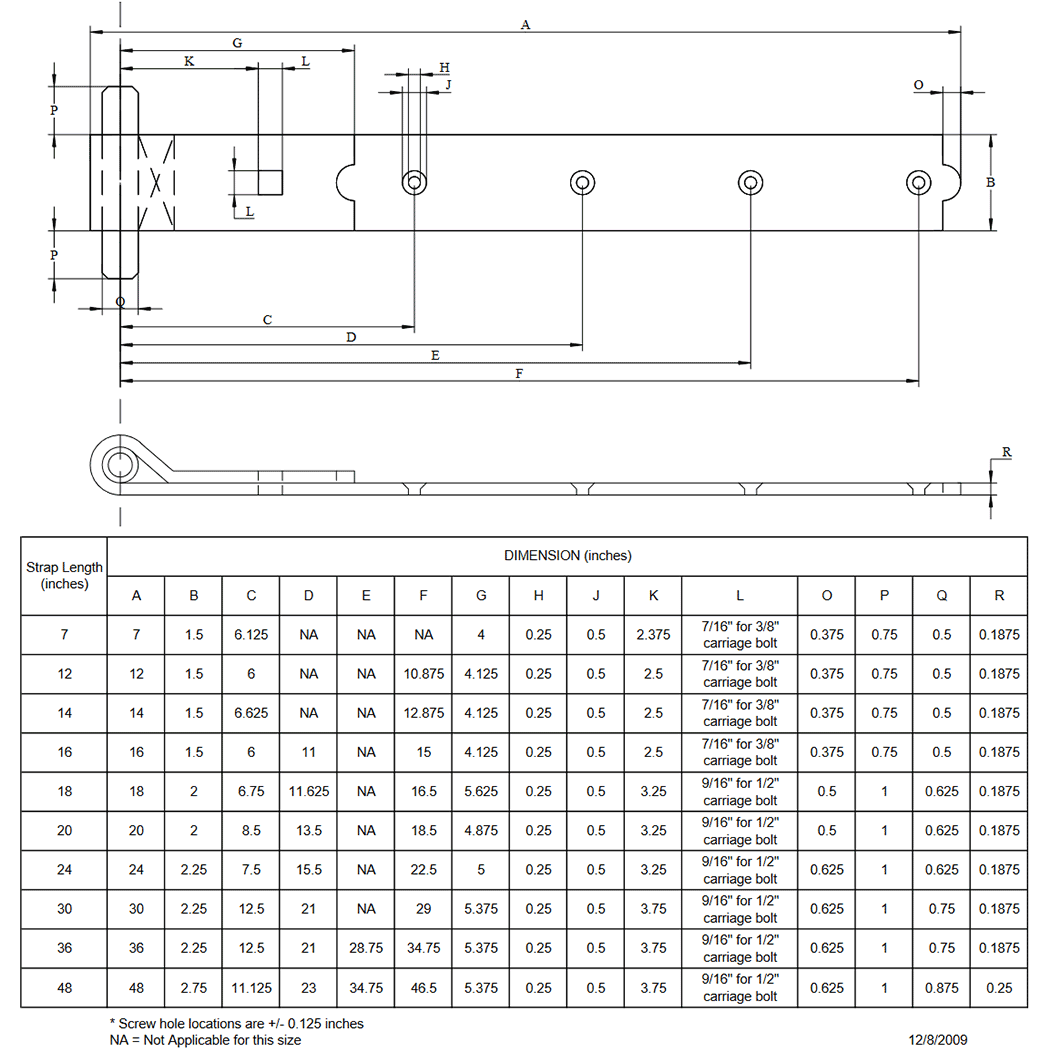

Snug Cottage 8292 Gate Strap Hinge Specifications:

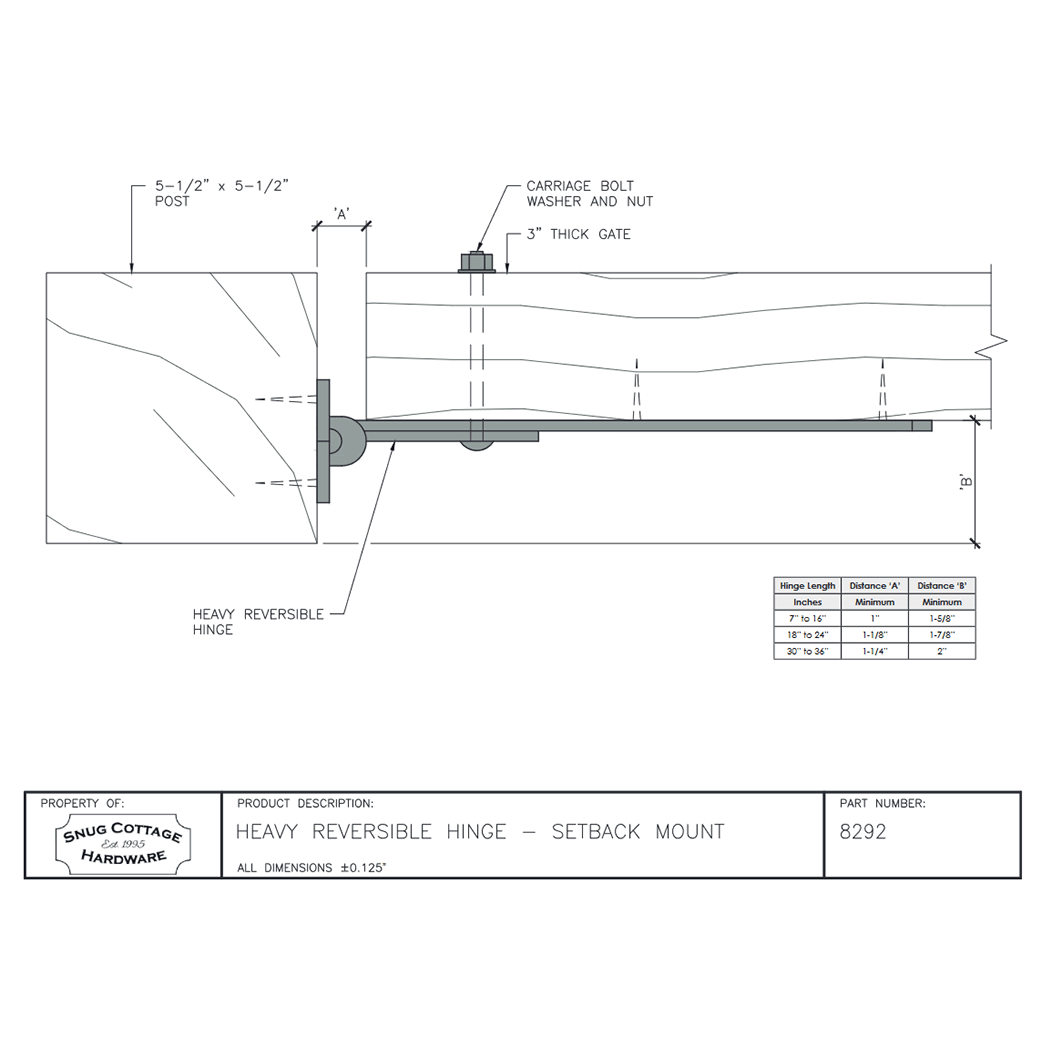

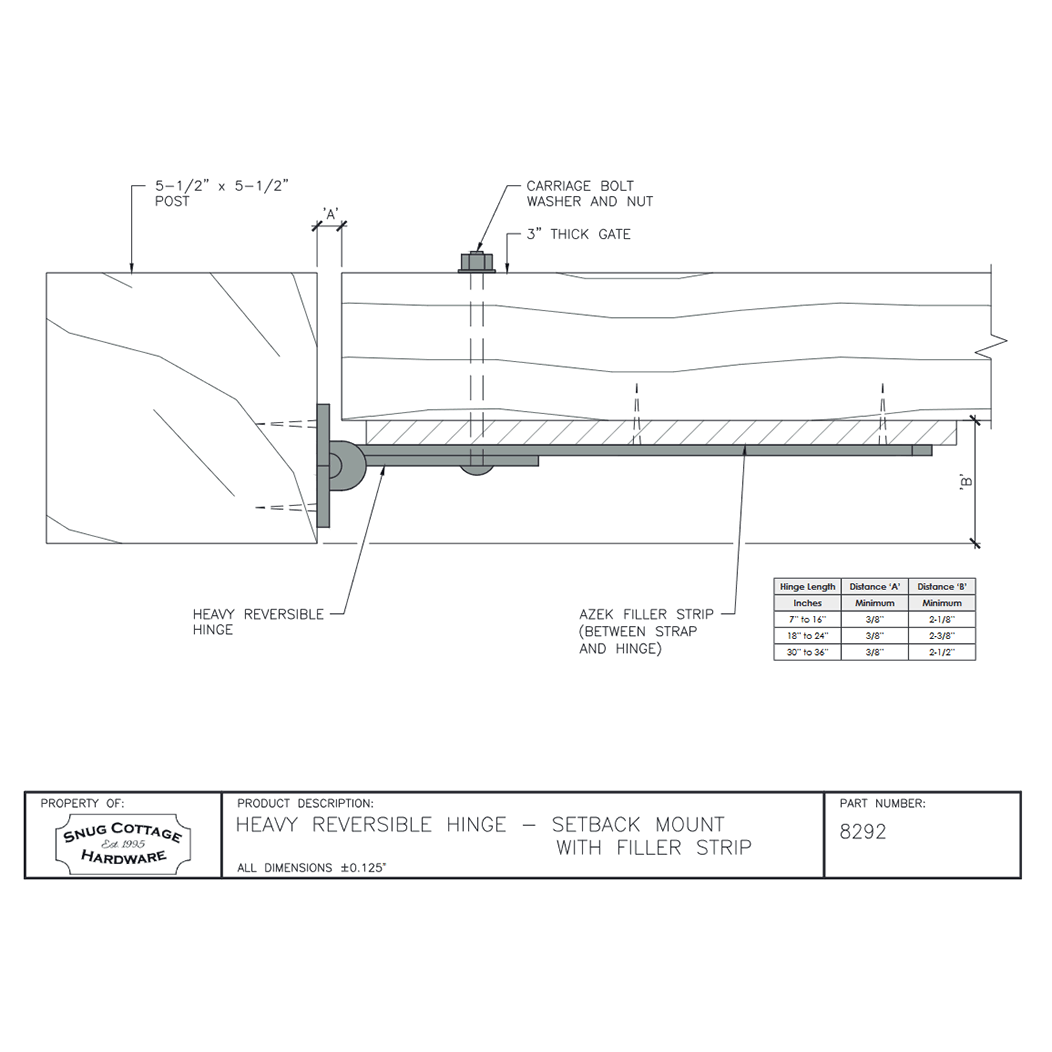

Snug Cottage 8292 Gate Strap Hinge Typical Installaion:
