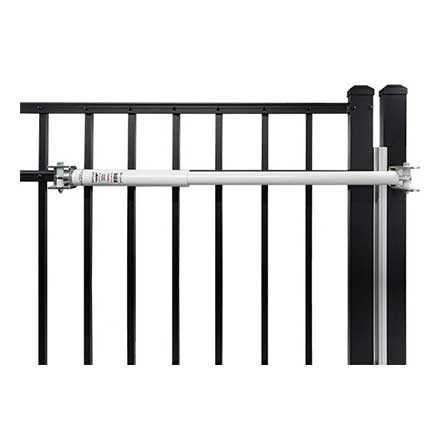

LockeyUSA [TB450-W] SUMO® Steel Turtleback Hydraulic Gate Closer - Adjustable - White - Gates 75-175 lbs.

Hydraulic Gate Closer

The SUMO® TB450 Turtle Back Adjustable Hydraulic Gate Closer by LockeyUSA offers firm, quiet hydraulic action for easy closing of pedestrian gates. This turtle back gate closer features a top-of-the-line design with improved seals and a higher performing cylinder for a superior product.

Hotel pool gates, parking lot access gates, beach access gates, office complex gates, resort gates, and barrier gates highlight a few of the many places this gate closer can be applied. The TB200 automatic gate closer is also recommended for gates which lock by maglock or electric strike because of its steady and stable closing action.

• SUMO® TB450-W Turtleback Series Hydraulic Gate Closer
• White Finish
• Use on Metal, Vinyl & Wood gates between 40" ~ 64"
• Closes small and large gates from 75-175 lbs.
• Adjustable Hydraulic/Nitrogen Gas controlled closing speed

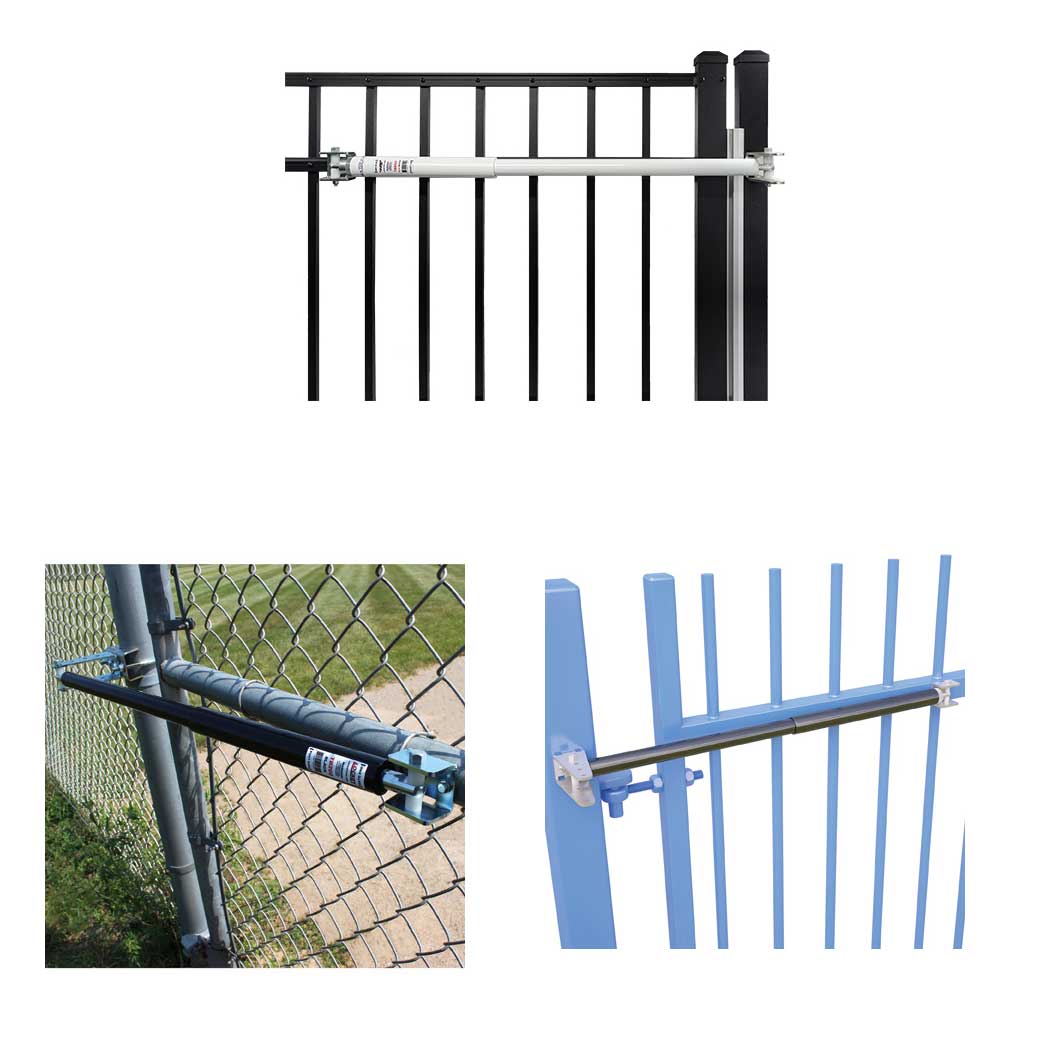

• Installs on top/middle/bottom
• Works with left and right hand gates
• Mounts on opening side of gate
• Pushes the gate closed
• Mounting brackets and fitting bar included - Chain Link requires additional adapter
• Not compatible with gates less than 30 inches wide
• Priced Per Each
• Lifetime Mechanical Warranty

Closer Dimensions & Specifications:

• Gate Weight: 75-175 lbs.
• Gate Width: 40-64″
• Max. Opening Angle: 100 degrees
• Min. Operating Temperature: 15 degrees Fahrenheit
• Max. Operating Temperature: 122 degrees Fahrenheit
• Type of Gate Material: Vinyl, Steel, Wood, Chain Link (Adapter Required)
• Closing/Latch Method: Hydraulic/Nitrogen Gas
• Material: Steel
• Color: Black
• Finish: PVC Wrapped
• Hinge Arrangements: In-line or Offset
• Opening Pressure: Approx. 3-7 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed.

LockeyUSA [TB450-W] SUMO® Turtle Back Adjustable Hydraulic Gate Closer:

LockeyUSA TB450 Specifications:

LockeyUSA SUMO® Turtle Back Hydraulic Gate Closer Accessories:
