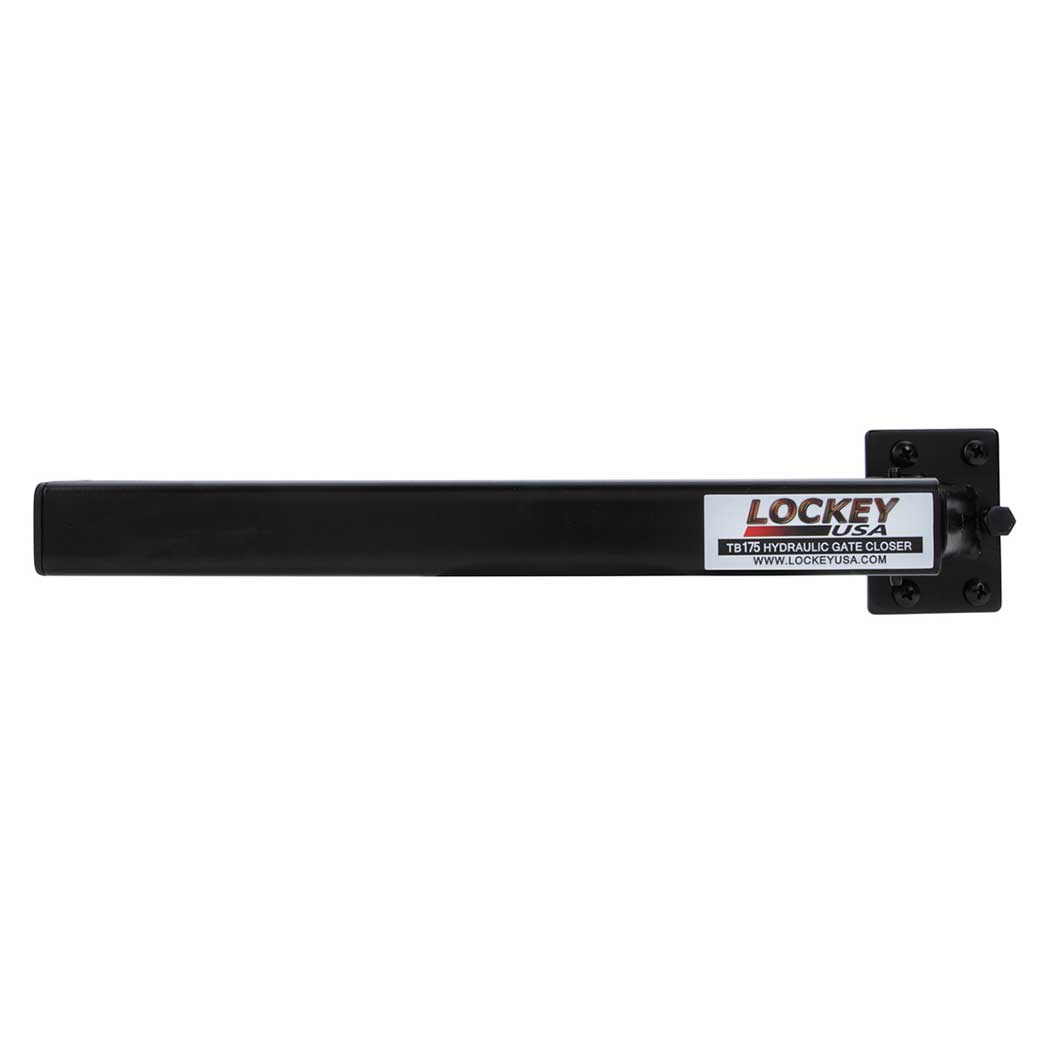

LockeyUSA [TB175-B] Steel Hydraulic Garden Gate Closer - Black - 12 1/2" L

Hydraulic Gate Closer

• TB175 Series Hydraulic Garden Gate Closer
• Powder Coat Black Finish
• Dimensions: 12 1/2″ L x 2 1/2″ W x 2 3/8″ D
• Use on Metal, Vinyl & Wood gates
• Flush mount closer
• Closes gates up to 110 lbs. easily and gently
• Hold open feature
• Installs on top, middle or bottom of either right or left hand of gate
• Mounts on opening side of gate, pushing it closed
• Priced Per Each
• Lifetime Mechanical Warranty

The TB175 may not be compatible with offset hinge arrangements or arrangements that create more than 2″ between gate post and gate, as it is critical to mount the closer as close as possible to the gate’s pivot point. To retain product warranty & restrict gate opening angle, a gate stop must be installed.

Closer Dimensions & Specifications:

• Dimensions: 12 1/2″ L x 2 1/2″ W x 2 3/8″ D
• Max. Gate Weight: 110 lbs.
• Max. Gate Width: 54″
• Max. Opening Angle: 90 degrees
• Closing/Latching: Adjustable
• Material: Steel
• Hinge Arrangements: In-line
• Opening Pressure: Variable depending on gate size
