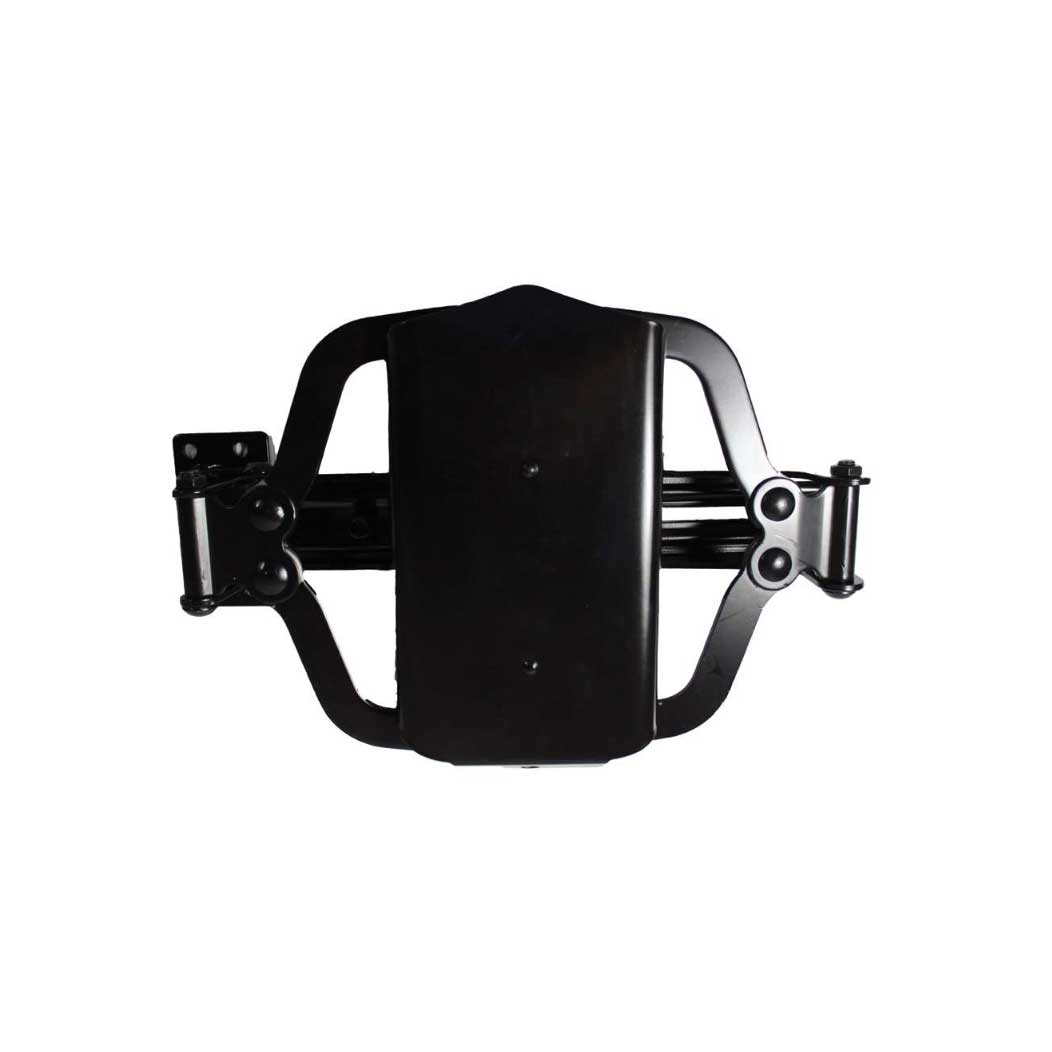

LockeyUSA [TB100] Steel Turtleback Hydraulic Gate Closer - Black - 7 1/2" L

Hydraulic Gate Closer

The Turtle Back TB100 hydraulic gate closer by LockeyUSA designed to push a gate closed with adjustable hydraulic speed control.

The LockeyUSA Turtle Back TB100 must mount on the hinge side/pull side of the gate in order to push the gate closed. The TB100 works best if the gate has in-line/flush/butt hinges flush with the gate post with 1” or less gap. For gates with offset hinges or more than a 1” gap, modifications will be needed

• TB100 Turtleback Series Hydraulic Gate Closer
• Powder Coat Black Finish
• Dimensions: 7 1/2″ L x 13″ W x 2 1/2″ D
• Bracket Dimensions: 3 1/4″ x 1 3/4″
• Use on Metal, Vinyl & Wood gates
• Flush mount closer
• Closes gates up to 125 lbs. easily and gently
• Installs on top, middle or bottom of either right or left hand of gate
• Mounts on opening side of gate, pushing it closed
• Priced Per Each
• Lifetime Mechanical Warranty

Closer Dimensions & Specifications:

• Dimensions: 7 1/2″ L x 13″ W x 2 1/2″ D
• Bracket Dimensions: 3 1/4″ x 1 3/4″
• Max. Gate Weight: 125 lbs.
• Max. Gate Width: 54″
• Max. Opening Angle: 90 degrees
• Min. Operating Temperature: 10 degrees
• Max. Operating Temperature: 110 degrees
• Closing/Latching: Hydraulic
• Material: Steel
• Hinge Arrangements: In-line
• Opening Pressure: Variable depending on gate size
