Iron Valley [T-81-901] Cast Iron Gate Thumb Latch Kit - Light Duty - Bean End - Flat Black Finish - 7 1/4" L

Iron Valley [T-81-901] Cast Iron Gate Thumb Latch Kit - Light Duty - Bean End - Flat Black Finish - 7 1/4" L
More Pictures

SKU: IV-T-81-901

Your Price: $56.70
List Price: $63.00 You Save: $6.30
QTY:
Print this page.
Average Rating  | Based on 0 Reviews

Product Details

  • Product Type:Gate Thumblatch Kit
  • Manufacturer:Iron Valley Hardware
  • MPN:T-81-901
  • Style:Light Duty, Bean End
  • Metal:Cast Iron
  • Size:7 1/4" L Handle, 2" W, 3" L Tail Piece, 1 1/2" Proj.
  • Fits:Gates up to 2 3/4" Thick
  • Finish:Flat Black

Cast Iron Gate Thumb Latch Kit

This flat black finish cast iron thumb latch kit with bean end handle design is designed to fit light duty gates up to 2 3/4" thick and can be thumb activated on one side of the door. Can be installed on in-swing and out-swing gates.

Using up to 30% recycled material, individual pieces are handmade and hand cast, resulting in each one being a little different then the rest, special if you will.

  • Install on gates up to 2 3/4" thick
  • Bean End Handle Design
  • 7 1/4" L x 2" W, 1 1/2" Proj. with 3" L Tail Piece
  • Includes 6 1/2" L Cast Iron Light Duty Drop Bar Latch - Knob - Square End
  • Includes 2" H x 2" W Gate Stop - Please read disclaimer below
  • Includes all necessary fasteners - 1" Round | #10 / 1" Flat | #10

Iron Valley [T-81-901] Cast Iron Gate Thumb Latch Kit:

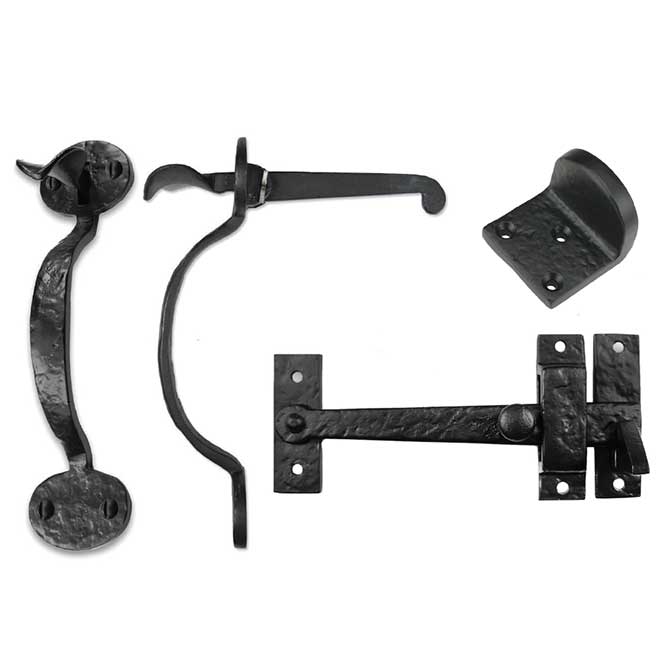

PLEASE NOTE: Kit includes one (1) thumb latch. Photo below illustrates the front and side view of one (1) single thumb latch.

Iron Valley [T-81-901] Cast Iron Gate Hasp Latch

Iron Valley Gate Thumb Latch Kit Typical Installation:

WARRANTY ADVISORY - All gates require a physical stop to eliminate the gate from swinging inwards and losing the battle to physics. Hinges will snap or compromise the jamb. Drop bars will break or bend as a result of an improperly installed gate.

This kit includes a gate stop that can be installed in various spots to eliminate the gate swinging beyond the point of no return or slamming the drop bar against the jamb. If you use this drop bar as the sole closing device for your gate without a stop in place, the drop bar will be damaged. It cannot withstand a heavy gate closing onto it. This latch set is designed to be used with a gate stop in place to stop the gate slightly before the drop bar connects with the back of the catch. This prevents breakage and bending of the drop bar.

If a weather strip or other device is installed to stop the gate in the proper way, the included gate stop is not necessary.

Iron Valley Gate Thumb Latch Kit

Cast Iron Installation & Care Information

Once the product is cast, cleaned, and rough edges sanded, we then can drill, cut, counter sink, and powder coat all of our products in a thick and rich black powder coat. This gives the product a high rust resistance and will allow the product to withstand severe weather much longer than other traditionally waxed or thin powder coated hardware.

Because this product is Cast Iron it will eventually rust if exposed to water or extreme outside environments. It is impossible to define a time frame on this naturally occurring process. The powder coat process works to prevent this as long as possible but take care to prevent scratches and damage that might speed up the formation of rust. Oiling the hardware can help delay this process.

Under no circumstances should a power drill or battery operated screw driver be used for fastener installation - Pilot holes and a handheld screw driver is enough to get any job done,

About Iron Valley Hardware

Iron Valley Hardware - Cast Iron Hardware

Iron Valley Hardware began as a way to provide classic and rustic hardware designs in durable Cast Iron as an alternative to the cheap steel and easily rusting hardware on the market.

Using up to 30% recycled material, individual pieces are handmade and hand cast, resulting in each one being a little different then the rest, special if you will. Iron Valley Hardware specializes in functional gate hardware, door hardware and decorative cabinet hardware for various applications throughout your home.

View more Cast Iron Hardware by Iron Valley Hardware.
