Steel Raised Barrel Door Butt Hinge
- Steel Door Butt Hinge - Raised Barrel - Ball Bearing - Standard Weight - Bevel
- Full Mortise
- 4 1/2" W x 4 1/2" H, .134" TH
- US10B / 640 Oil Rubbed Bronze Finish
- Steel - ANSI A8112
- ANSI Template
- Offset barrel moves pivot point away from jamb
- For doors in deep reveals requiring 90° to 110° swing
- Wood & Metal Fasteners included - #12 x 1-1/4" / 12-24 x 1/2"
- Priced Per Each
HINGE SWAGING: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves.

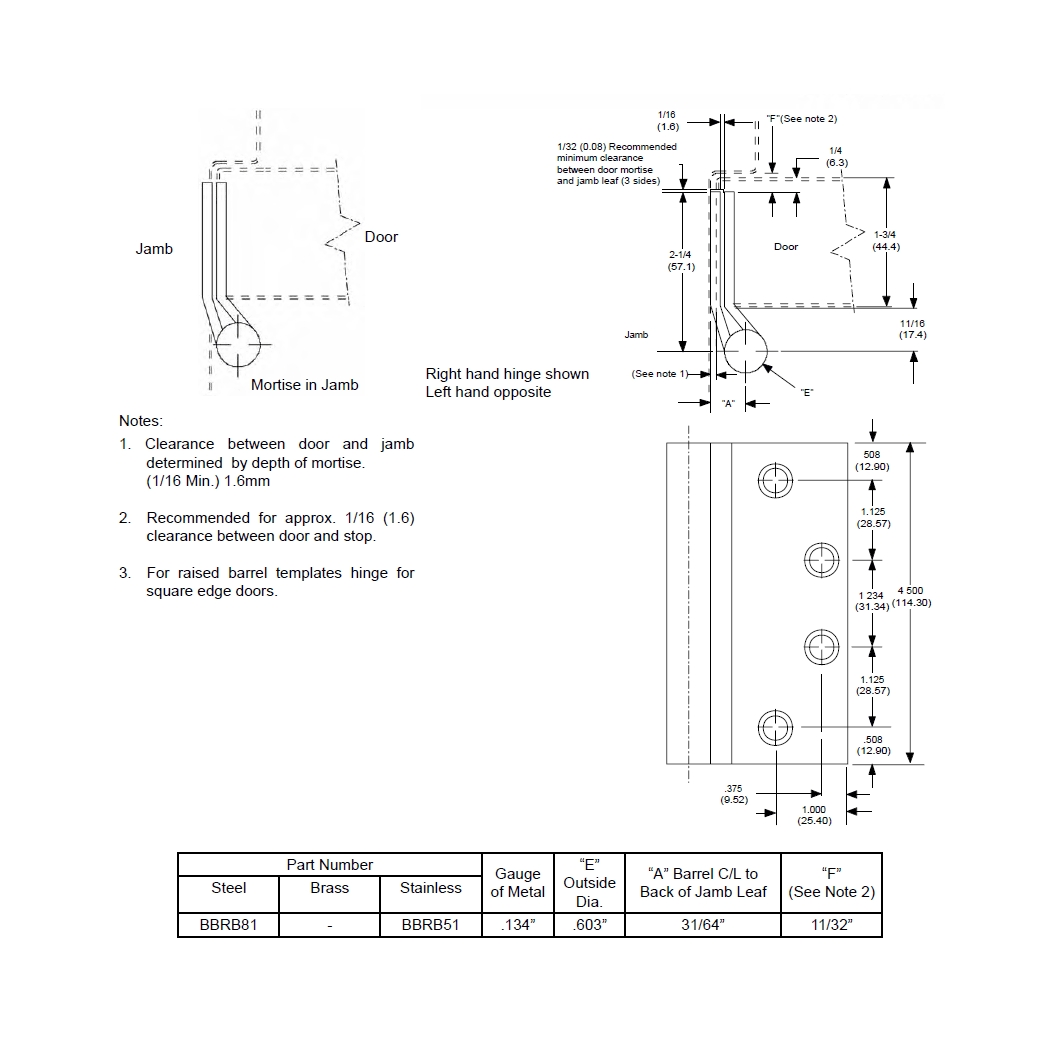

PBB BB-45 Door Butt Hinge Specifications:

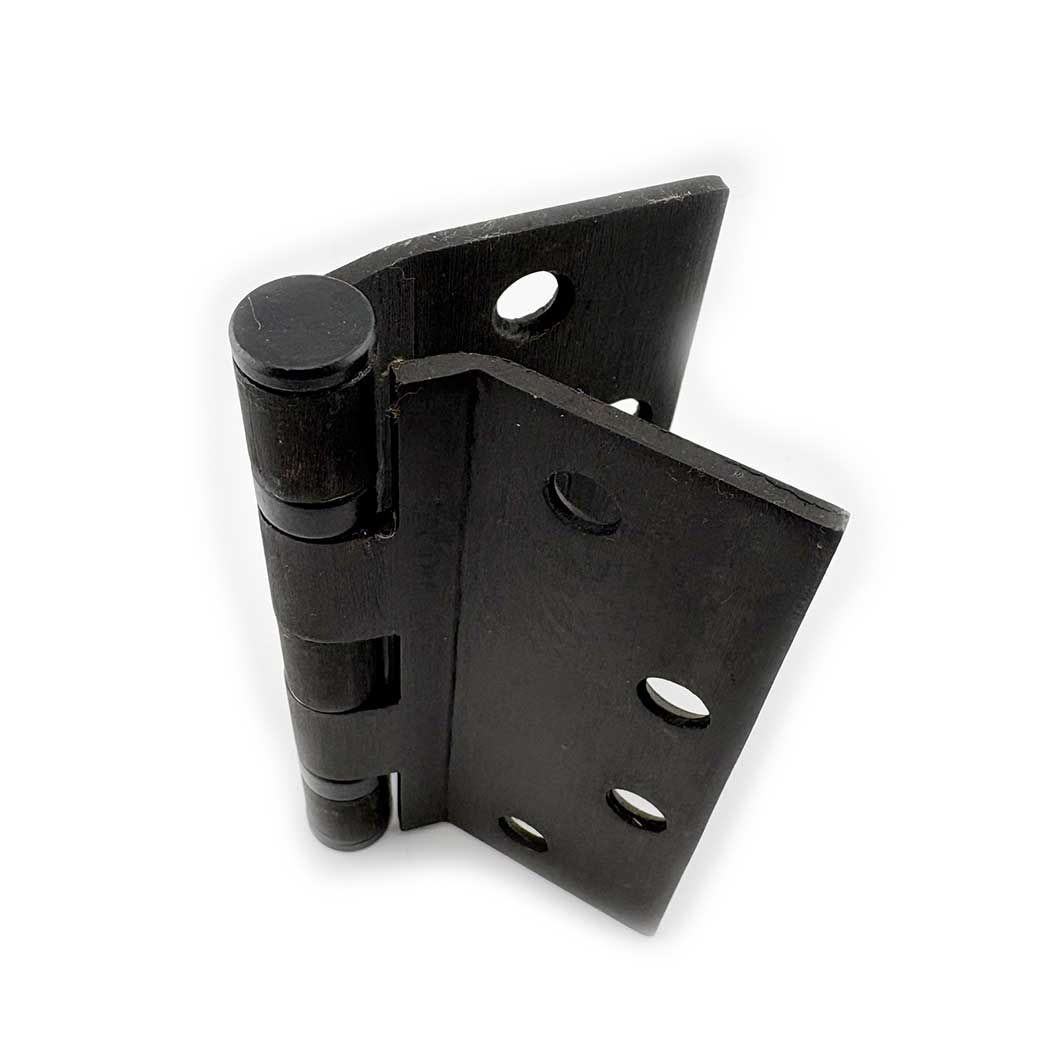

PBB Architectural [BB8R4545640BEV] Raised Barrel Door Butt Hinge:
