Deltana [SS44058B32DLH-S] Stainless Steel Door Butt Hinge - Ball Bearing - Security - Button Tip - 5/8" Radius & Square Corner - Left Hand - Brushed Finish - Pair - 4" H x 4" W

Deltana [SS44058B32DLH-S] Stainless Steel Door Butt Hinge - Ball Bearing - Security - Button Tip - 5/8" Radius & Square Corner - Left Hand - Brushed Finish - Pair - 4" H x 4" W
More Pictures


Your Price: $43.46
List Price: $57.95 You Save: $14.49
Print this page.
Average Rating  | Based on 0 Reviews

Product Details

  • Product Type:Door Hinge
  • Manufacturer:Deltana Enterprises
  • MPN:SS44058B32DLH-S
  • Style:5/8" Radius & Square Corner / Security
  • Metal:304 Stainless Steel
  • Size:4" W x 4" H, 3/32" TH (0.097mm)
  • Tip:Button Finial
  • Finish:Brushed
  • UPC:760923487646

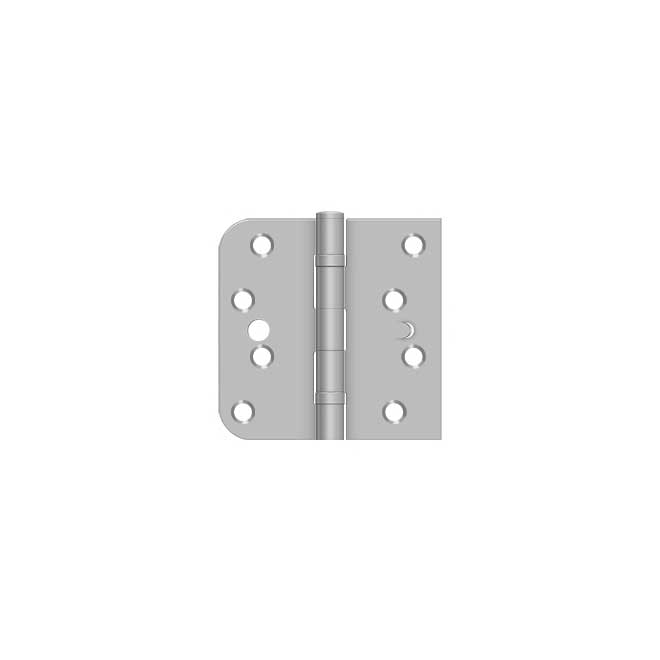

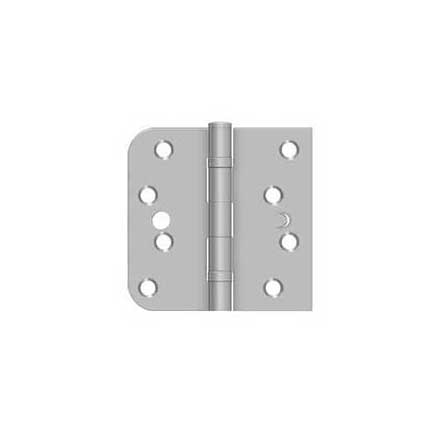

Stainless Steel Door Hinge

This brushed finish stainless steel door butt hinge by Deltana Enterprises features 5/8" radius corners a button tip and a unique security feature. These 304 stainless steel hinges are great for waterside properties and outdoor use. They have excellent corrosion resistance compared to regular steel hinges.

Ball Bearing hinges feature less wear and tear between the contact points of the hinge barrels. This increases the lifetime performance of the hinge and creates a smoother swinging hinge in the process.

The security feature of this hinge includes a tab and cutout to allow for the hinge leaves to interlock when closed. This eliminates the ability for a door to be lifted off the hinges of an outswing door when it is closed.

  • 304 Grade Stainless Steel Door Butt Hinge - 5/8" Radius & Square Corner - Ball Bearing - Security
  • Left Hand
  • Brushed Finish
  • 4" W x 4" H, 3/32" TH (0.097mm)
  • Button Tip Finial
  • Wood Fasteners included - #10 x 3/4"
  • Priced Per Pair - See door hinge guide below for suggested use

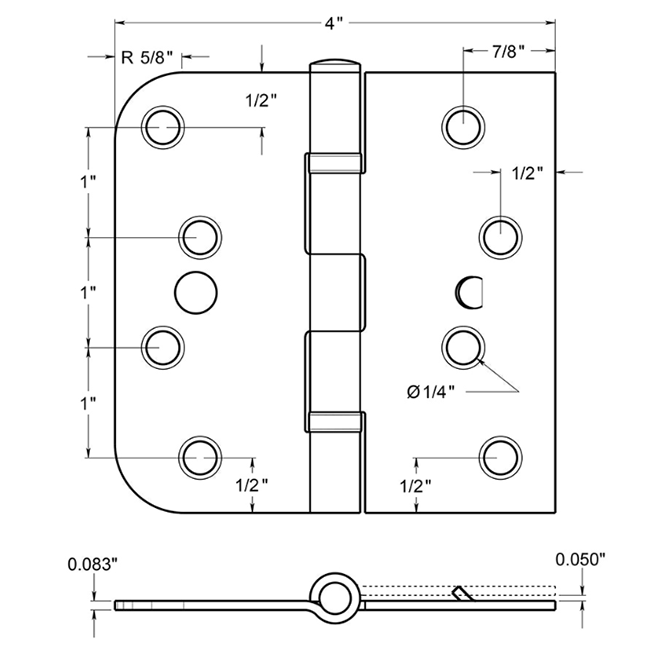

Deltana SS44058B-LH Door Butt Hinge Specifications:

Deltana SS44058B-LH Door Butt Hinge

Deltana SS44058B32DLH-S Door Butt Hinge:

Deltana [SS44058B32DLH-S] Door Butt Hinge

Door Hinge Selection Guide:

To choose the proper hinge size consider the following:

Suggested Door Hinge Size

Number of Hinges per Door - As a general rule you will want to use 1 hinge per every 30" of door or fraction thereof. Referring to door height:

Suggested # of Door Hinges

Radius of a Hinge - To determine if you have a 1/4" or 5/8" radius corner hinge, measure the beginning of the curve to where the corner of the hinge would be if it were square.

Door Hinge Radius

About Deltana Enterprises - Architectural Hardware

Deltana - Architectural Hardware

Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories America's largest selection of architectural and door hardware in over nine fine finishes made from solid brass, zinc, aluminum, steel and stainless steel.

View more Architectural & Door Hardware from Deltana Enterprises.
