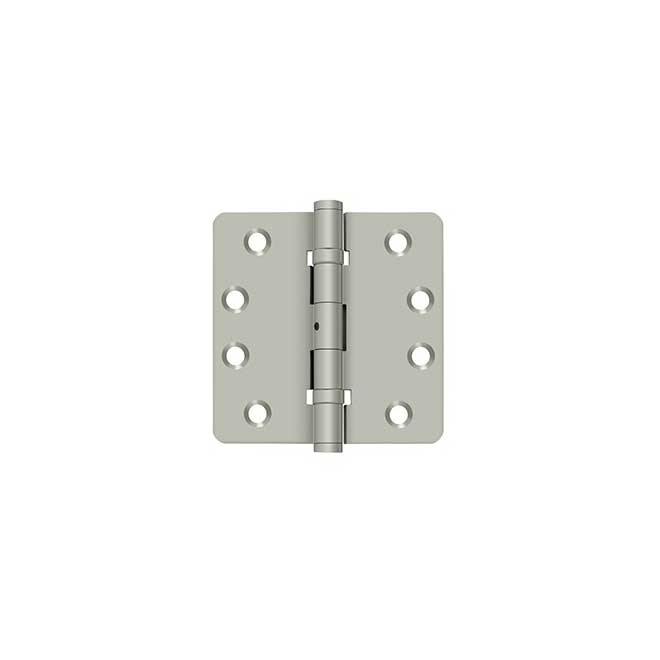

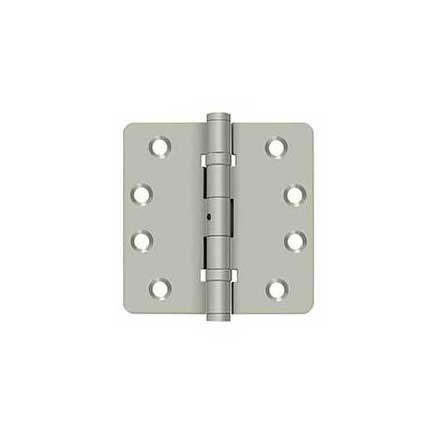

Deltana [DSB4R4NB15] Solid Brass Door Butt Hinge - Ball Bearing - Non-Removable Pin - Button Tip - 1/4" Radius Corner - Brushed Nickel Finish - Pair - 4" H x 4" W

Deltana [DSB4R4NB15] Solid Brass Door Butt Hinge - Ball Bearing - Non-Removable Pin - Button Tip - 1/4" Radius Corner - Brushed Nickel Finish - Pair - 4" H x 4" W
More Pictures


Your Price: $72.11
List Price: $96.15 You Save: $24.04
Print this page.
Average Rating  | Based on 0 Reviews

Product Details

  • Product Type:Door Hinge
  • Manufacturer:Deltana Enterprises
  • MPN:DSB4R4NB15
  • Style:1/4" Radius Corner
  • Metal:Brass
  • Size:4" W x 4" H, 1/8" TH (.129mm)
  • Tip:Button Finial
  • Finish:Brushed Nickel
  • UPC:760923490547

Solid Brass Door Hinge

This solid brass door butt hinge by Deltana Enterprises features 1/4" radius corners, ball bearings, non-removable pin and is a residential grade door hinge. All Deltana hinges are resistant to oxidation and come standard with button tip finials, stainless steel barrel pins, true solid brass screws and can be upgraded with a beautiful selection of decorative finials (sold separately).

Ball Bearing hinges feature less wear and tear between the contact points of the hinge barrels. This increases the lifetime performance of the hinge and creates a smoother swinging hinge in the process.

NRP - A hinge equipped with a non-removable pin cannot be disassembled without first opening the hinge to reveal the set-screw embedded perpendicularly on its inside face. NRP Door Hinges are commonly found on outswing exterior doors that require their pin barrels to be exposed on the outside of the installation.

  • Solid Brass Door Butt Hinge - 1/4" Radius Corner - Ball Bearing
  • Non-Removable Pin
  • Brushed Nickel Finish
  • 4" W x 4" H, 1/8" TH (.129mm)
  • Button Tip Finial - Alternate finials sold separately
  • Fasteners included - #12 x 1-1/4
  • Priced Per Pair - See door hinge guide below for suggested use

Deltana DSB4R4NB Door Butt Hinge Specifications:

Deltana DSB4R4NB Door Butt Hinge

Deltana DSB4R4NB15 Door Butt Hinge:

Deltana [DSB4R4NB15] Door Butt Hinge

Door Hinge Selection Guide:

To choose the proper hinge size consider the following:

Suggested Door Hinge Size

Number of Hinges per Door - As a general rule you will want to use 1 hinge per every 30" of door or fraction thereof. Referring to door height:

Suggested # of Door Hinges

Radius of a Hinge - To determine if you have a 1/4" or 5/8" radius corner hinge, measure the beginning of the curve to where the corner of the hinge would be if it were square.

Door Hinge Radius

About Deltana Enterprises - Architectural Hardware

Deltana - Architectural Hardware

Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories America's largest selection of architectural and door hardware in over nine fine finishes made from solid brass, zinc, aluminum, steel and stainless steel.

View more Architectural & Door Hardware from Deltana Enterprises.
