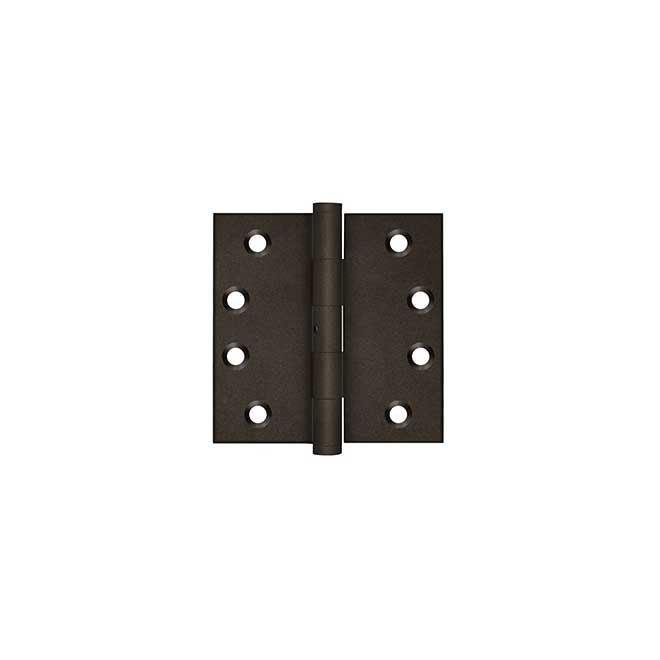

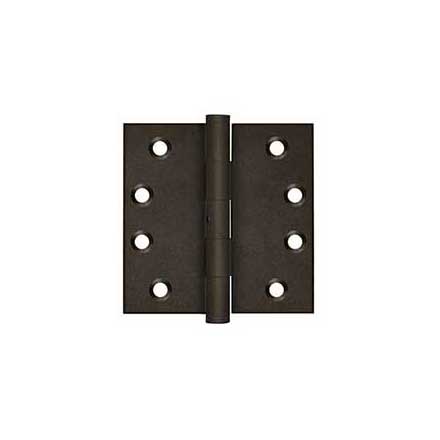

Deltana [DSB4N10BD] Solid Brass Door Butt Hinge - Non-Removable Pin - Button Tip - Square Corner - Bronze Dark Finish - Pair - 4" H x 4" W

Deltana [DSB4N10BD] Solid Brass Door Butt Hinge - Non-Removable Pin - Button Tip - Square Corner - Bronze Dark Finish - Pair - 4" H x 4" W
More Pictures

SKU: DEL-DSB4N10BD

Your Price: $79.69
List Price: $106.25 You Save: $26.56
QTY:
Print this page.
Average Rating  | Based on 0 Reviews

Product Details

  • Product Type:Door Hinge
  • Manufacturer:Deltana Enterprises
  • MPN:DSB4N10BD
  • Style:Square Corner
  • Metal:Brass
  • Size:4" W x 4" H, 1/8" TH
  • Tip:Button Finial
  • Finish:Bronze Dark
  • UPC:760923484980

Solid Brass Door Hinge

This solid brass door butt hinge by Deltana Enterprises features square corners, a button tip and non-removable pin. All Deltana hinges are resistant to oxidation and come standard with button tip finials, stainless steel barrel pins, true solid brass screws and can be upgraded with a beautiful selection of decorative finials (sold separately).

NRP - A hinge equipped with a non-removable pin cannot be disassembled without first opening the hinge to reveal the set-screw embedded perpendicularly on its inside face. NRP Door Hinges are commonly found on outswing exterior doors that require their pin barrels to be exposed on the outside of the installation.

  • Solid Brass Door Butt Hinge - Square Corner - Non-Removable Pin
  • Bronze Dark Finish
  • 4" W x 4" H, 1/8" TH
  • Button Tip Finial - Alternate finials sold separately
  • Fasteners included - #12 x 1 1/4"
  • Priced Per Pair - See door hinge guide below for suggested use

Deltana DSB4N Door Butt Hinge Specifications:

Deltana DSB4N Door Butt Hinge

Deltana DSB4N10BD Door Butt Hinge:

Deltana [DSB4N10BD] Door Butt Hinge

Door Hinge Selection Guide:

To choose the proper hinge size consider the following:

Suggested Door Hinge Size

Number of Hinges per Door - As a general rule you will want to use 1 hinge per every 30" of door or fraction thereof. Referring to door height:

Suggested # of Door Hinges

Radius of a Hinge - To determine if you have a 1/4" or 5/8" radius corner hinge, measure the beginning of the curve to where the corner of the hinge would be if it were square.

Door Hinge Radius

About Deltana Enterprises - Architectural Hardware

Deltana - Architectural Hardware

Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories America's largest selection of architectural and door hardware in over nine fine finishes made from solid brass, zinc, aluminum, steel and stainless steel.

View more Architectural & Door Hardware from Deltana Enterprises.
