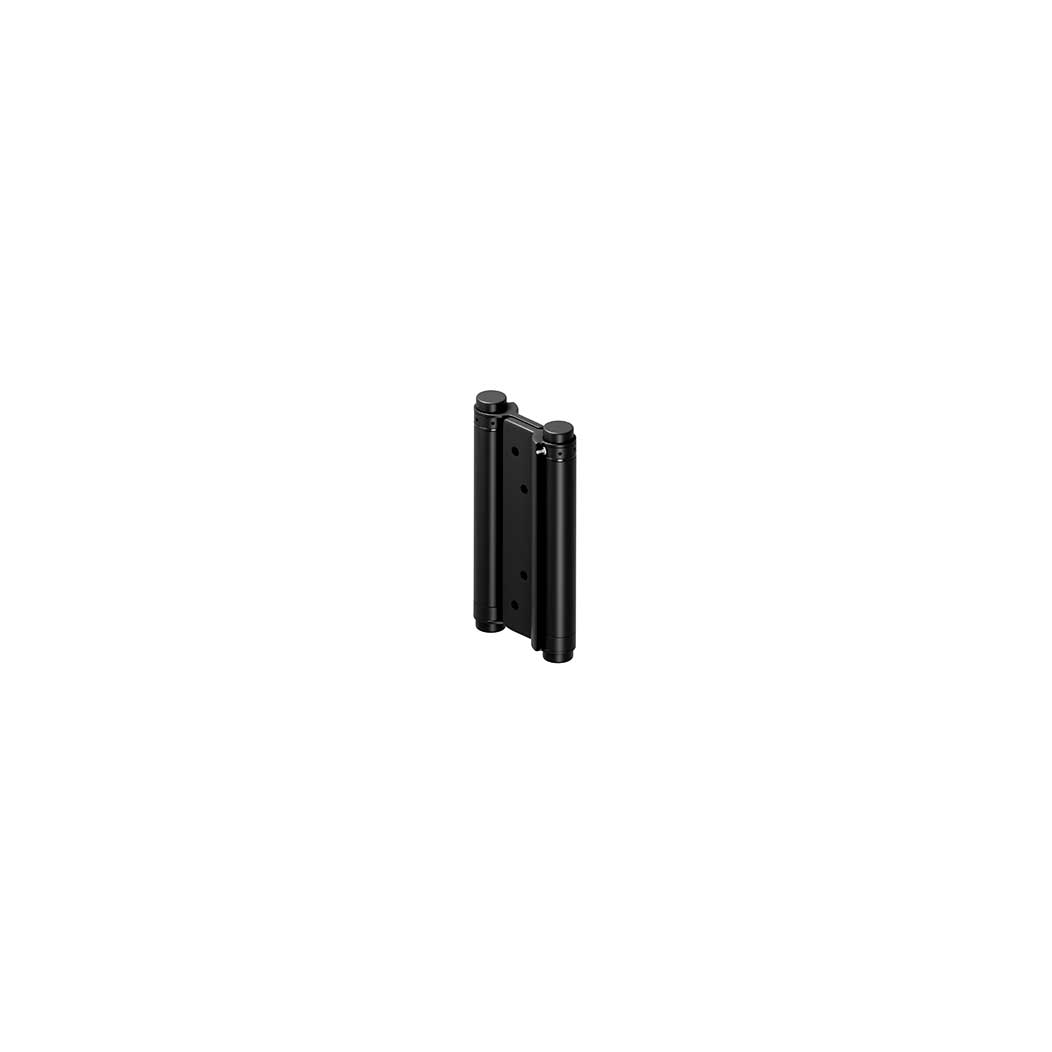

Deltana [DASHS6U19] Stainless Steel Double Action Saloon Door Spring Hinge - Paint Black Finish - 6" H x 2 1/2" W

Double Action Saloon Door Spring Hinge

• Stainless Steel Dual Action Saloon Door Spring Hinge
• 6" H x 2 1/2" W (Closed)
• Paint Black Finish
• Adjustable spring tension
• Universal handing
• Fits doors 1 1/4" ~ 1 3/4"
• Priced Per Each - Includes (1) hinge and wood screws (#9 x 1")

HINGE GUIDE

• USING 2 HINGES: 32" Max Door Width, 70 lbs. Max Weight, 84" Max Door Height
• USING 3 HINGES: 36" Max Door Width, 100 lbs. Max Weight, 84" Max Door Height

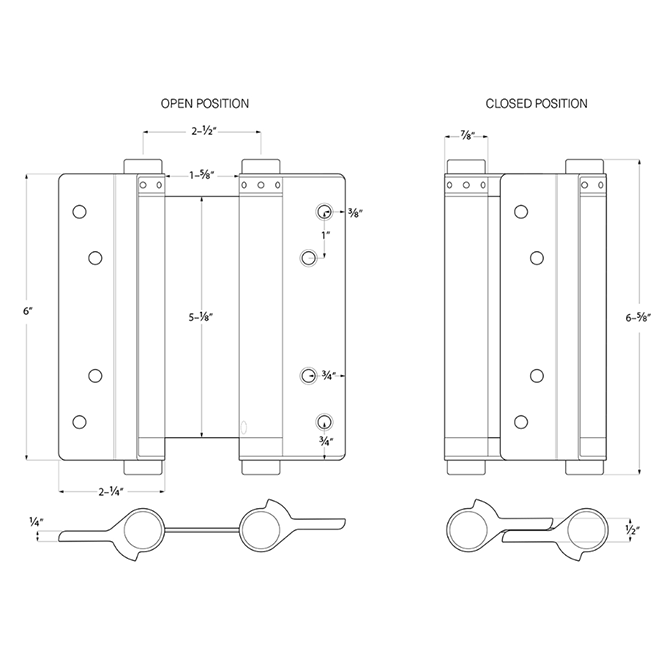

Deltana DASHS Double Action Spring Hinge Specifications:

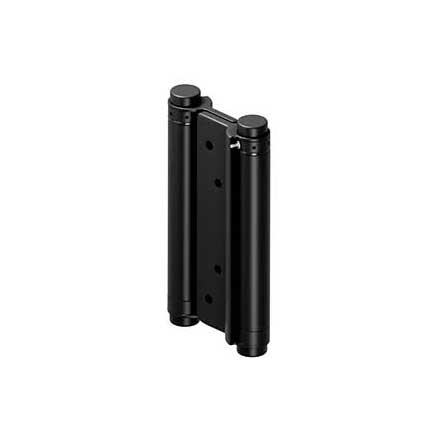

Deltana DASHS6U19 Door Double Action Spring Hinge:

Typical Installation:
