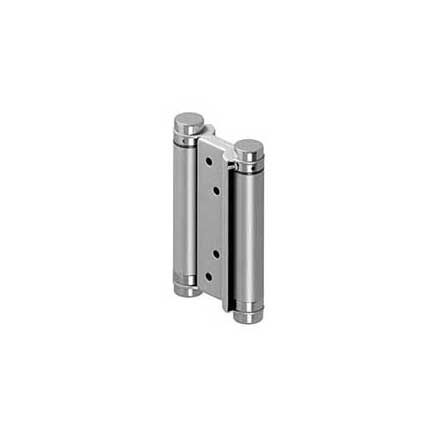

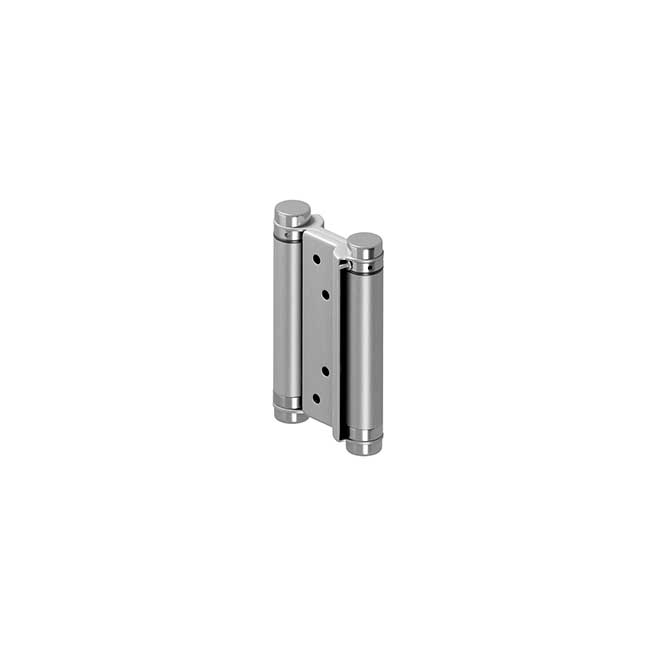

Deltana [DASHS4U32D] Stainless Steel Double Action Saloon Door Spring Hinge - Brushed Finish - 4" H x 2" W

Double Action Saloon Door Spring Hinge

• Stainless Steel Dual Action Saloon Door Spring Hinge
• 4" H x 2" W (Closed)
• Brushed Finish
• Adjustable spring tension
• Universal handing
• Fits doors 7/8" ~ 1 1/4"
• Priced Per Each - Includes (1) hinge and wood screws (#9 x 1")

HINGE GUIDE

• USING 2 HINGES: 28" Max Door Width, 55 lbs. Max Weight, 80" Max Door Height
• USING 3 HINGES: 32" Max Door Width, 70 lbs. Max Weight, 80" Max Door Height

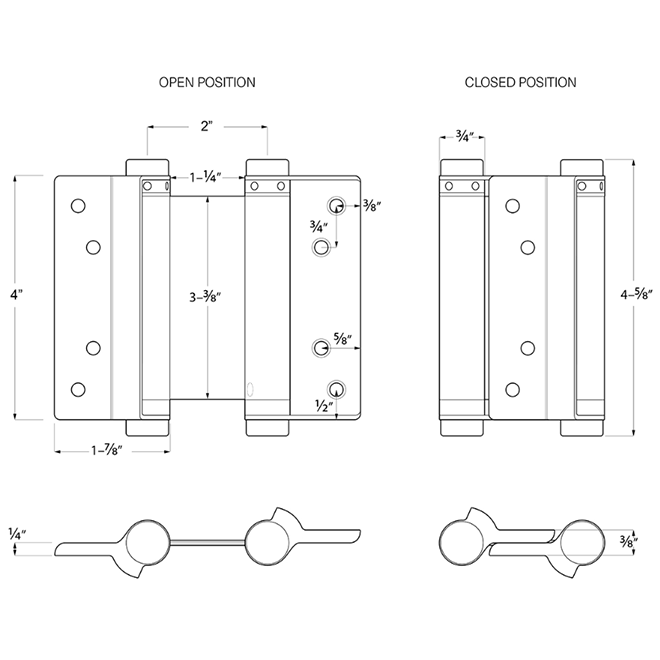

Deltana DASHS Double Action Spring Hinge Specifications:

Deltana DASHS4U32D Door Double Action Spring Hinge:

Typical Installation:
