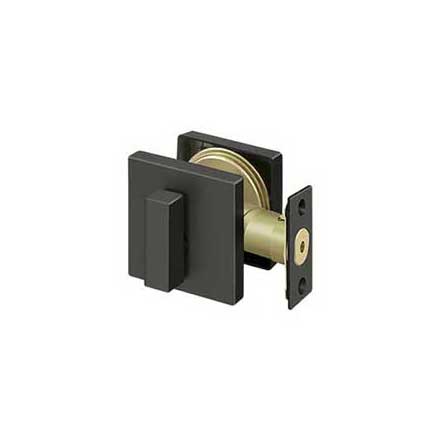

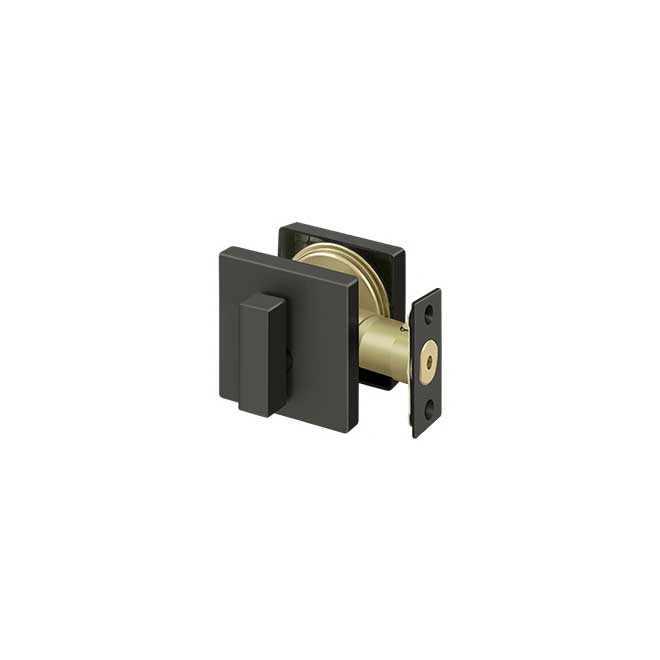

Deltana [ZDSU10B] Die Cast Zinc Door Deadbolt - Square Plate - Single Cylinder - Oil Rubbed Bronze Finish - 2 5/8" Sq.

Deltana [ZDSU10B] Die Cast Zinc Door Deadbolt - Square Plate - Single Cylinder - Oil Rubbed Bronze Finish - 2 5/8" Sq.
More Pictures

SKU: DEL-ZDSU10B

Your Price: $68.33
List Price: $91.10 You Save: $22.77
QTY:
Print this page.
Average Rating  | Based on 0 Reviews

Product Details

  • Product Type:Door Deadbolt
  • Manufacturer:Deltana Enterprises
  • MPN:ZDSU10B
  • Style:Square Plate
  • Metal:Bronze
  • Size:2 5/8" Sq.
  • Function:Single Cylinder
  • Finish:Oil Rubbed Bronze
  • UPC:760923481262

Solid Brass Door Deadbolt

The Oil Rubbed Bronze Finish Square Plate Door Deadbolt within the Elite Residential Door Lock Collection by Deltana Enterpises features solid brass construction and a 2 5/8" square escutcheon.

All Deltana residential grade door deadbolts include a 3-year mechanical and 1-year finish limited warranty. All bolts come with adjustable backsets (2 3/8" - 2 3/4") and work with a standard bore hole door preparation (2 1/8" Dia.).

  • Grade 3 - Single Cylinder - key cylinder on the outside and a thumb-turn on the inside
  • 2 5/8" Sq. Escutcheon
  • 1 1/4" Projection
  • Use with interior doors 1 3/8" ~ 1 3/4" in thickness
  • Adjustable backset of 2 3/8" ~ 2 3/4"
  • Sold as complete set; Includes Latch and Strike Plate
  • Schlage C Keyway - Standard Door Prep (2 1/8)" and Installation

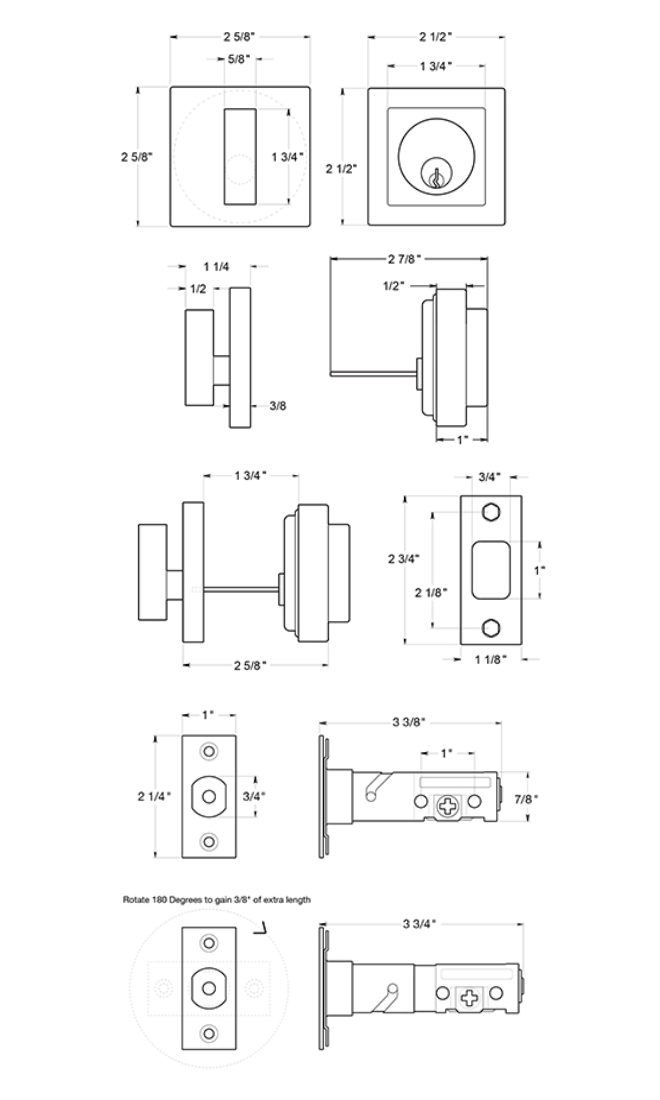

Deltana ZDS Door Deadbolt Specifications:

Deltana [ZDS] Door Deadbolt

Deltana ZDSU10B Door Deadbolt:

Deltana ZDSU10B Door Deadbolt

About Deltana Enterprises - Architectural Hardware

Deltana - Architectural Hardware

Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories America's largest selection of architectural and door hardware in over nine fine finishes made from solid brass, zinc, aluminum, steel and stainless steel.

View more Architectural & Door Hardware from Deltana Enterprises.
