Commercial Grade Door Lever
- Grade 1 - Classroom Standard - Clarendon Lever
- Brushed Chrome Finish
- 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
- IC Core - Prepped for small format interchangeable core cylinders
- 3 1/2" Dia. Escutcheon
- 3" Projection
- Thickness: 1 3/8" ~ 2"
- Latch: UL Listed 1" Throw
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Handing: Universal
- Fixed Through-bolts
PLEASE NOTE: Locks are supplied without a cylinder core. Set is compatible with Arrow, Best, Falcon and Schlage cores.
ANSI CODE F84 - Latchbolt operated by lever from either side. Inside lever is always unlocked. Outside lever can be locked by key from the outside. Outside lever can be unlocked by key from outside or turning inside lever.

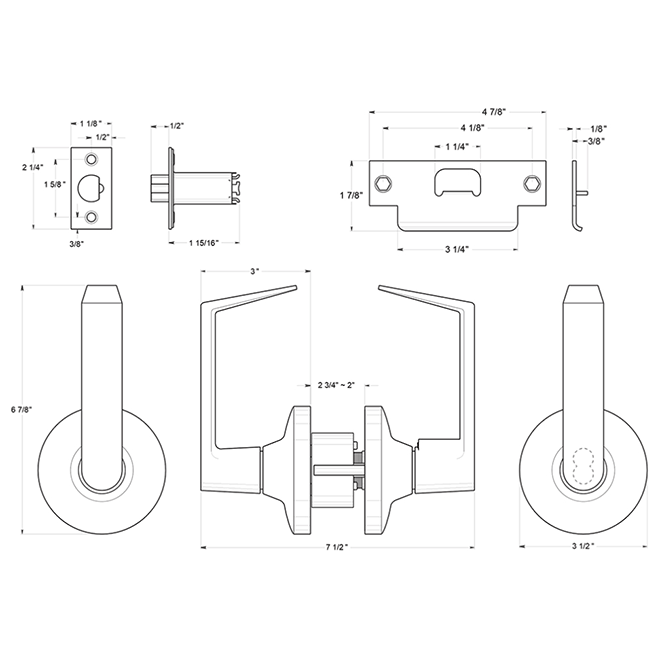

Deltana CL509FRCNC Door Lever Specifications:
Deltana CL509FRCNC-26D Door Lever:
