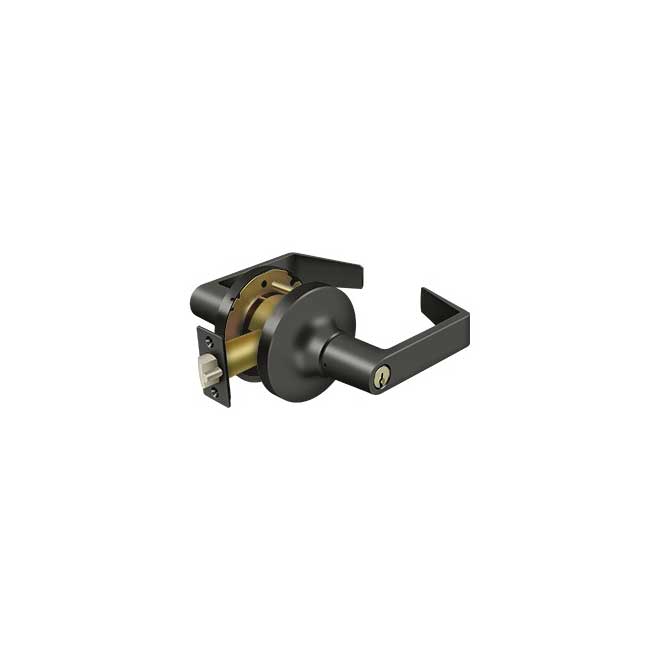

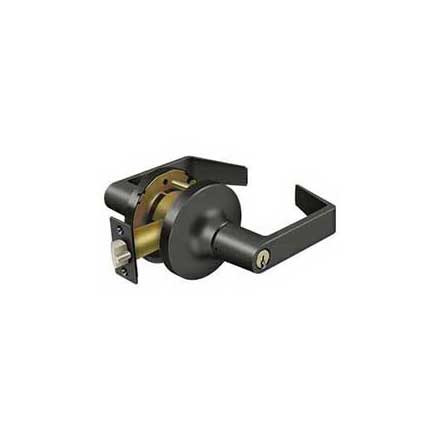

Commercial Grade Door Lever
- Grade 1 - Classroom Standard - Clarendon Lever
- Oil Rubbed Bronze Finish
- 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
- 3 1/2" Dia. Escutcheon
- 3" Projection
- Thickness: 1 3/8" ~ 2"
- Solid Brass 6 Pin Schlage C Keyway - Standard Door Prep (2 1/8)" and Installation
- Latch: UL Listed 1" Throw
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Handing: Universal
- Fixed Through-bolts
ANSI CODE F84 - Latchbolt operated by lever from either side. Inside lever is always unlocked. Outside lever can be locked by key from the outside. Outside lever can be unlocked by key from outside or turning inside lever.
Deltana CL509FLC Door Lever Specifications:
![Deltana [CL509FLC] Door Lever](/Hardware/Deltana/Diagrams/Door-Locks/commercial/CL509FLC.png "Deltana [CL509FLC] Door Lever")
