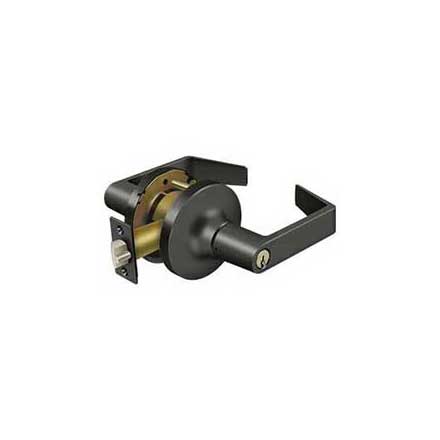

Commercial Grade Door Lever
- Grade 1 - Storeroom Standard - Clarendon Lever
- Oil Rubbed Bronze Finish
- 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
- 3 1/2" Dia. Escutcheon
- 3" Projection
- Thickness: 1 3/8" ~ 2"
- Solid Brass 6 Pin Schlage C Keyway - Standard Door Prep (2 1/8)" and Installation
- Latch: UL Listed 1/2" Throw
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Handing: Universal
- Fixed Through-bolts
ANSI CODE F86 - Latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked and inside lever is always unlocked.

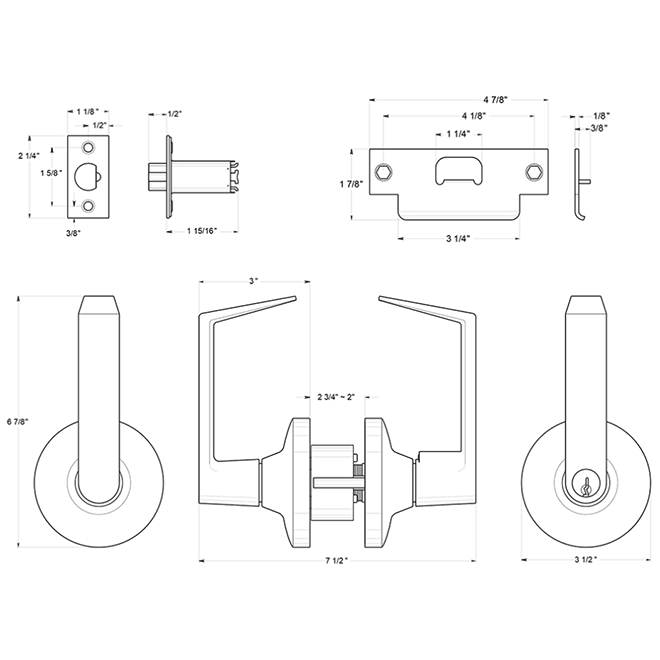

Deltana CL504FLC Door Lever Specifications:

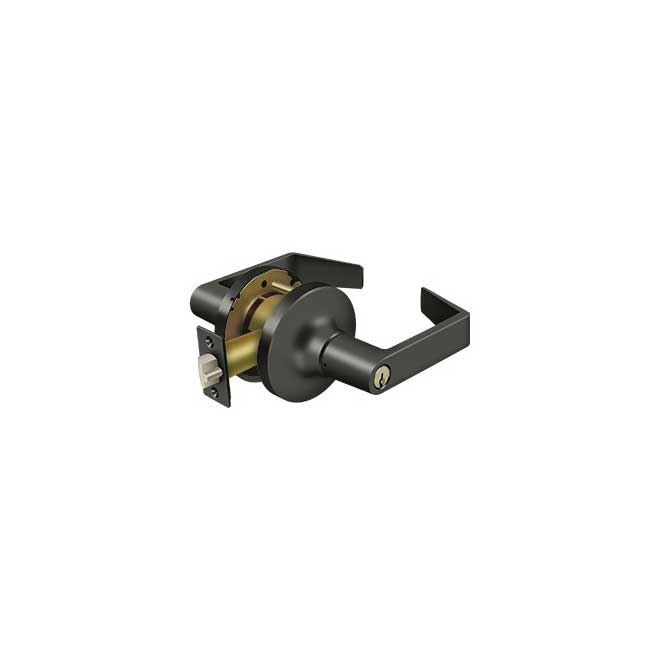

Deltana CL504FLC-10B Door Lever:
