Commercial Grade Door Lever
- Grade 1 - Privacy Standard - Clarendon Lever
- Oil Rubbed Bronze Finish
- 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
- 3 1/2" Dia. Escutcheon
- 3" Projection
- Thickness: 1 3/8" ~ 2"
- Solid Brass 6 Pin Schlage C Keyway - Standard Door Prep (2 1/8)" and Installation
- Latch: UL Listed 1/2" Throw
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Handing: Universal
- Fixed Through-bolts
ANSI CODE F76 - Latchbolt operated by lever from either side. Outside lever can be locked by a locking Push-button located inside, can be unlocked from outside with the emergency release or from inside by turning lever or closing door.

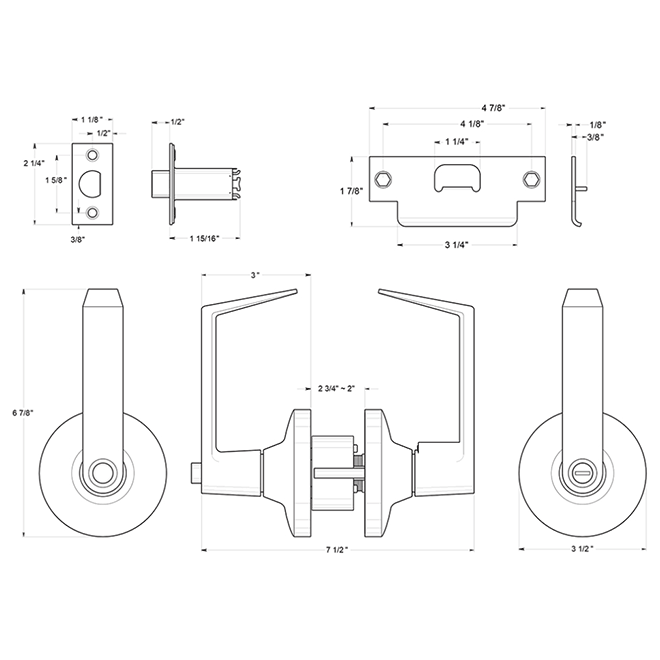

Deltana CL502FLC Door Lever Specifications:
![Deltana [CL502FLC] Door Lever](/Hardware/Deltana/Diagrams/Door-Locks/commercial/CL502FLC.png "Deltana [CL502FLC] Door Lever")

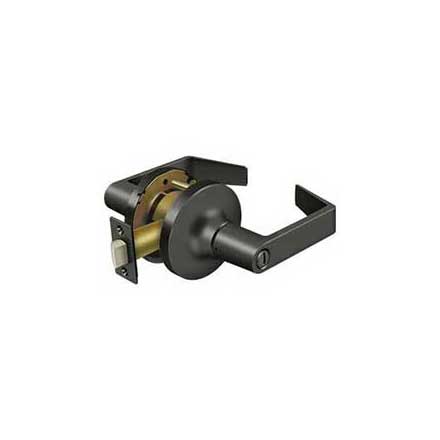

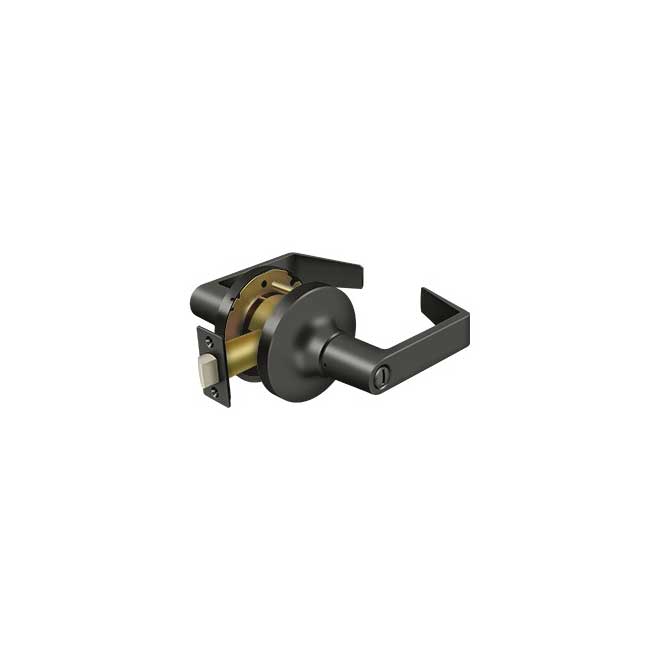

Deltana CL502FLC-10B Door Lever:
