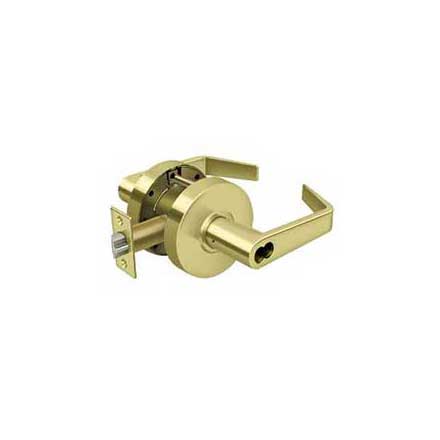

Deltana [CL500ECCNC-3] Commercial Door Lever - Grade 2 - Entry - IC Core - Clarendon Lever - Polished Brass Finish

Commercial Grade Door Lever

• Grade 2 - Entry Standard - Clarendon Lever
• Polished Brass Finish
• 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
• IC Core - Prepped for small format interchangeable core cylinders
• 3 1/2" Dia. Escutcheon
• 3" Projection
• Thickness: 1 3/8" ~ 2"
• Latch: UL Listed 1/2" Throw
• Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
• Handing: Universal
• Removable Through-bolts

PLEASE NOTE: Locks are supplied without a cylinder core. Set is compatible with Arrow, Best, Falcon and Schlage cores.

ANSI CODE F82 - Push-button locking (Auto egress function): pushing button locks outside lever until unlocked by key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

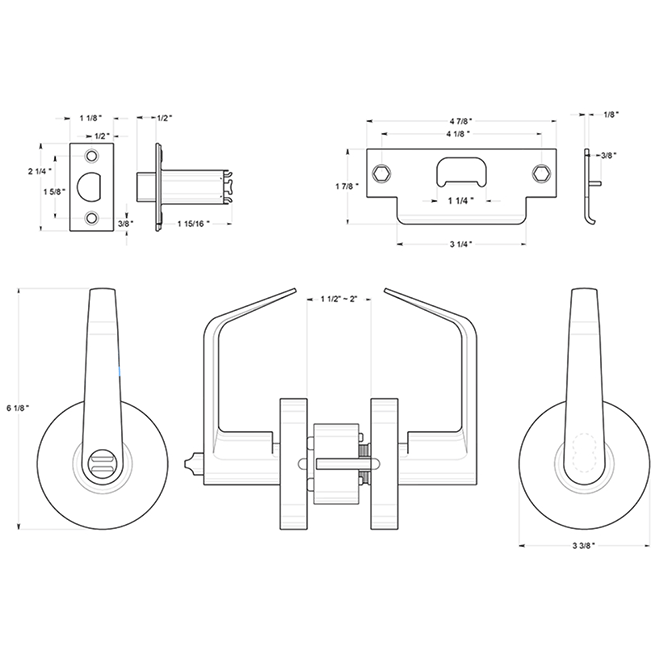

Deltana CL500ECCNC Door Lever Specifications:

Deltana CL500ECCNC-3 Door Lever:
