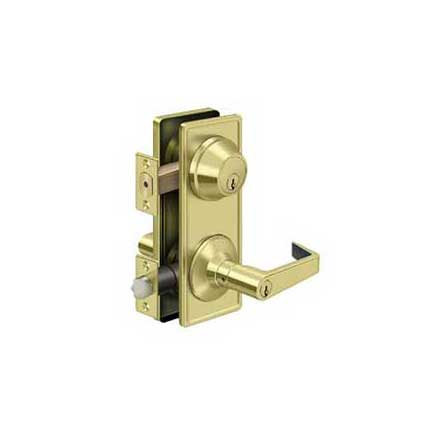

Deltana [CL300ILC-3] Commercial Door Interconnected Lever Lock - Grade 2 - Entry - Clarendon Lever - Polished Brass Finish

Commercial Grade Door Interconnected Lock

• Grade 2 - Entry Standard - Clarendon Lever
• Polished Brass Finish
• 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
• 3 1/4" x 8" Plates, 4" C/C
• Thickness: 1 3/8" ~ 1 3/4"
• Solid Brass 6 Pin Schlage C Keyway - Door Prep 2 1/8" Bore
• Deadbolt Latch: UL Listed 1/2" Throw
• Latch Bolt: UL Listed, Chrome Plates, 1/2" Throw
• Handing: Universal
• Non-Clutch

ANSI CODE F82 - Push-button locking (Auto egress function): pushing button locks outside lever until unlocked by key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

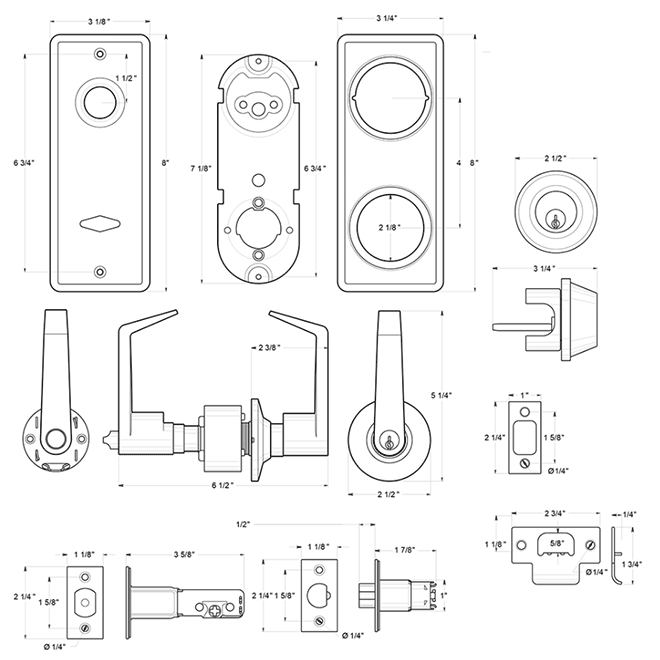

Deltana CL300ILC Door Interconnected Lock Specifications:

Deltana CL300ILC-3 Door Interconnected Lock:
