Commercial Grade Door Lever
- Grade 2 - Classroom Standard - Round Knob
- Stainless Steel - Brushed Finish
- 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
- 3" Dia. Escutcheon
- 2 1/8" Dia. Knob
- Thickness: 1 3/8" ~ 2"
- Solid Brass 6 Pin Schlage C Keyway - Standard Door Prep (2 1/8)" and Installation
- Latch: UL Listed 1/2" Throw
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Handing: Universal
- Removable Through-bolts
ANSI CODE F84 - Latchbolt operated by lever from either side. Inside lever is always unlocked. Outside lever can be locked by key from the outside. Outside lever can be unlocked by key from outside or turning inside lever.

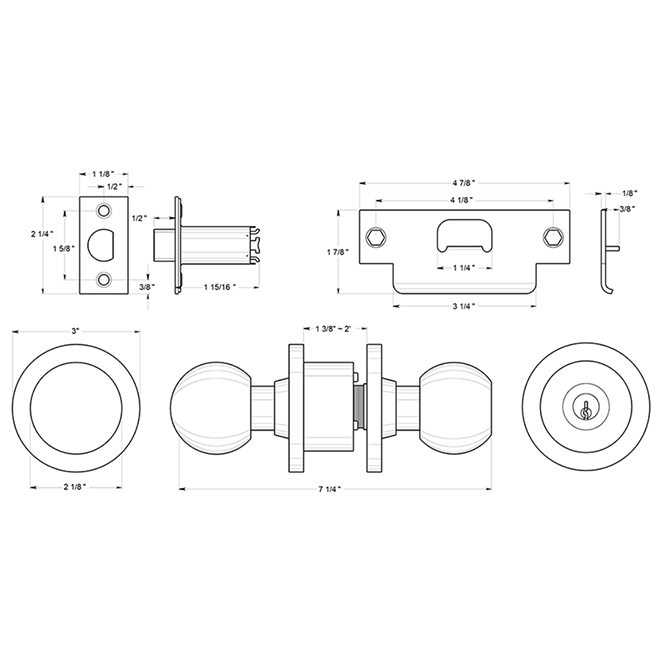

Deltana CL109EAC Door Lever Specifications:
![Deltana [CL109EAC] Door Lever](/Hardware/Deltana/Diagrams/Door-Locks/commercial/CL109EAC.png "Deltana [CL109EAC] Door Lever")

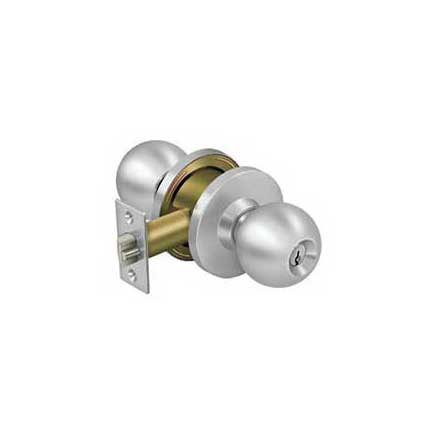

Deltana CL109EAC-32D Door Lever:
