Commercial Grade Door Lever
- Grade 2 - Privacy Standard - Round Knob
- Stainless Steel - Brushed Finish
- 2 3/4" Backset Standard - 2 3/8" Backset optional (specify during checkout)
- 2 1/8" Dia. Knob
- 3" Dia. Escutcheon
- Thickness: 1 3/8" ~ 2"
- Solid Brass 6 Pin Schlage C Keyway - Standard Door Prep (2 1/8)" and Installation
- Latch: UL Listed 1/2" Throw
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Handing: Universal
- Removable Through-bolts
ANSI CODE F76 - Latchbolt operated by lever from either side. Outside lever can be locked by a locking Push-button located inside, can be unlocked from outside with the emergency release or from inside by turning lever or closing door.

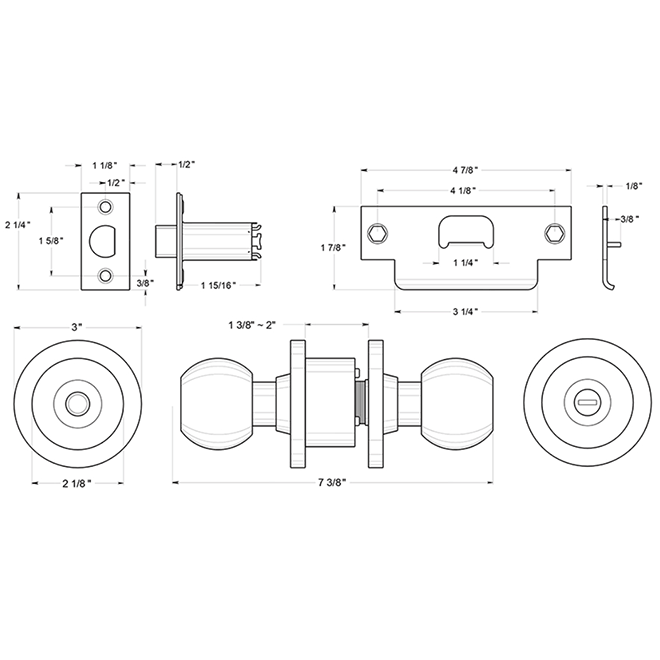

Deltana CL102EAC Door Knob Specifications:
![Deltana [CL102EAC] Door Knob](/Hardware/Deltana/Diagrams/Door-Locks/commercial/CL102EAC.png "Deltana [CL102EAC] Door Knob")

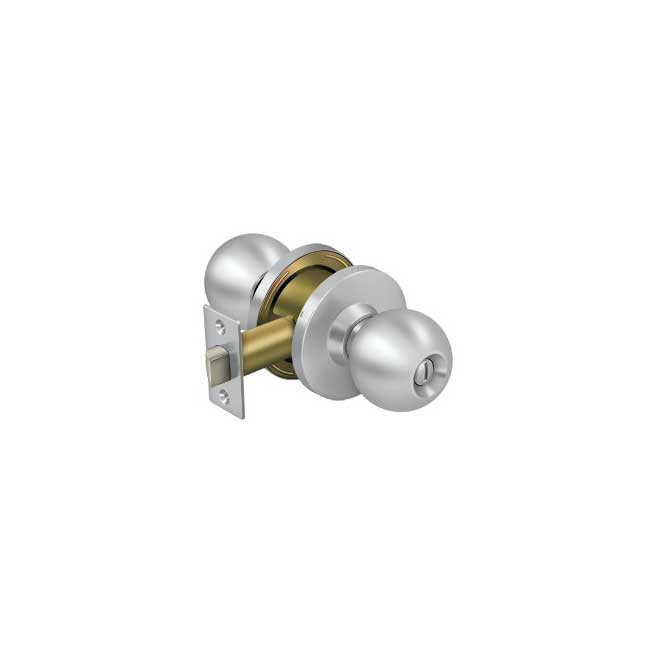

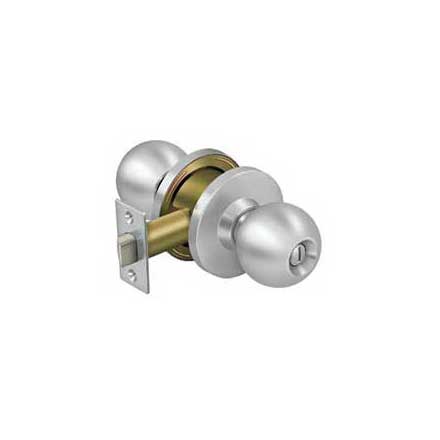

Deltana CL102EAC-32D Door Knob:
