Stainless Steel Hydraulic Door Closer Hinge
ALREX Hydraulic Door Closer Hinges by PBB Architectural contain all the features of an overhead commercial door closer without the installation, service and aesthetic issues. A door closer in a hinge saving you time and money while eliminating unsightly door closers.
These 304 grade stainless steel hydraulic hinges are ADA compliant, meet UL fire rating requirements and Grade 1 1,000,000 cycle requirements (A156.17) for self closing hydraulic hinges. ANSI template hole locations for both wood and metal doors with fasteners included. Providing full adjustability for spring and hydraulic tension and hold open options with a 10 year mechanical warranty.
- Stainless Steel Hydraulic Door Closer Hinge - Full Mortise - Square Corner
- 3 Hinge - Left Hand Set: 2 Hydraulic Hinges, 1 Dummy Hinge
- 4 1/2" L x 4 1/2" H, .134" TH, 6 13/16" Overall
- US19 / 800 Black Finish
- 304 Stainless Steel
- ANSI Template
- Non-Hold Open - 180 degree maximum swing
- Wood & Metal Fasteners included - #12 x 1-1/4" / 12-24 x 1/2"
- Weight Capacity - 115 lbs. (2 Hydraulic & 1 Dummy Center Hinge) - See Hinge Guide below.
- Priced Per Set
ADJUSTABILITY:
- Spring tension (closing sweep speed) can be adjusted with the included tool on the top of the hinge
- Hydraulic tension (latch strenght) can be adjusted with the included tool at the bottom of the hinge
CERTIFICATION:
- Intertek - Meets A156.17 Grade 1 requirements for self closing hydraulic hinges. 1,000,000 cycles
- Intertek W/N. 21710 - Meets UL 10C requirements for 180 minute exposure period with hose stream in accordance with NFPA 252 and UL 10C under positive furnace pressure and CAN/ULC S104 and UL 10B under neutral furnace pressure
- ADA - ADA listed as meeting requirements of 5 lb. maxium opening force
PBB AX45 Door Closer Hinge Specifications:

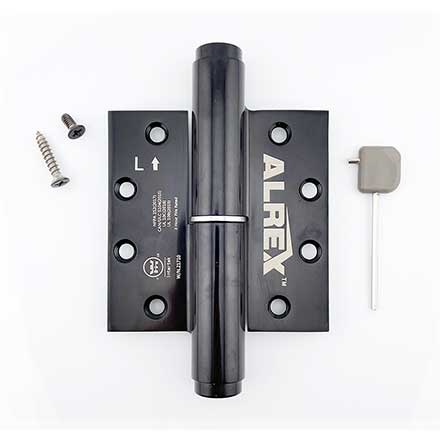

PBB AX-L21S45800 Door Closer Hinge:
![PBB [AX-L21S45800] Hydraulic Door Closer Hinge](/Hardware/PBB-Architectural/Large/Hydraulic-Hinges/Alrex/PBB-Architectural-AX-L21S45800-Hydraulic-Door-Closer-Hinge.jpg "PBB [AX-L21S45800] DHydraulic Door Closer Hinge")
PBB ALREX HINGE GUIDE:
