Martell Hardware > By Manufacturer > Deltana > Door Hinges (Steel) > 3 1/2" x 3 1/2"

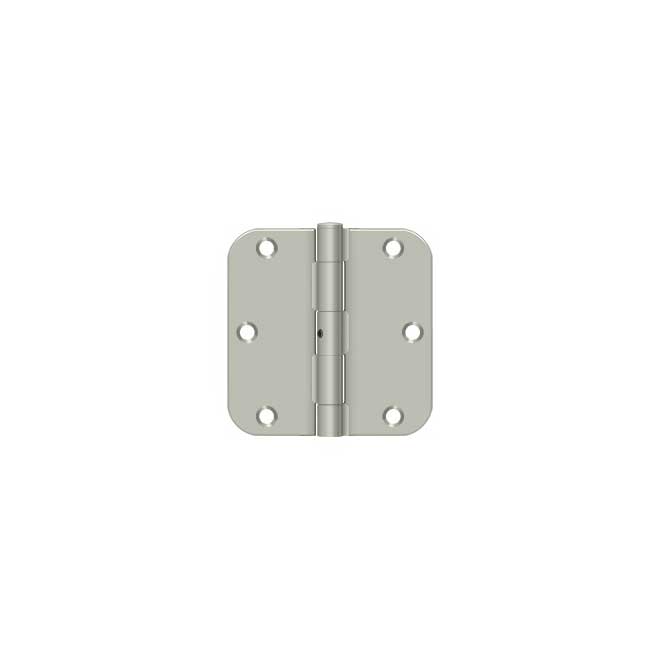

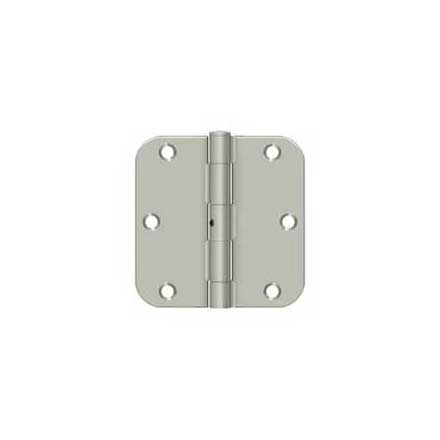

Deltana [S35R5N15] Steel Door Butt Hinge - Residential - 5/8" Radius Corner - Non-Removable Pin - Brushed Nickel Finish - Pair - 3 1/2" H x 3 1/2" W

SKU: DEL-S35R5N15

Your Price: $9.83

List Price: $13.10 You Save: $3.27

QTY:

Average Rating | Based on 0 Reviews

Read Reviews | Write A Review

Product Details

Product Type:Door Hinge
Manufacturer:Deltana Enterprises
MPN:S35R5N15
Style:5/8" Radius Corner / Residential
Metal:Steel
Size:3 1/2" W x 3 1/2" H, .085" TH
Finish:Brushed Nickel
UPC:760923486335

Extruded Steel Door Hinge

Extruded Door Butt Hinge - 5/8" Radius Corner - Residential - Non-Removable Pin
Brushed Nickel Finish
3 1/2" W x 3 1/2" H, .085" TH
Interior Residential Use
Steel Pin
Fasteners included - #10 x 1"
Priced Per Pair - See door hinge guide below for suggested use

NRP - A hinge equipped with a non-removable pin cannot be disassembled without first opening the hinge to reveal the set-screw embedded perpendicularly on its inside face. NRP Door Hinges are commonly found on outswing exterior doors that require their pin barrels to be exposed on the outside of the installation.

Deltana S35R5N Door Butt Hinge Specifications:

Deltana S35R5N Door Butt Hinge

Deltana S35R5N15 Door Butt Hinge:

Deltana [S35R5N15] Door Butt Hinge

Door Hinge Selection Guide:

To choose the proper hinge size consider the following:

Suggested Door Hinge Size

Number of Hinges per Door - As a general rule you will want to use 1 hinge per every 30" of door or fraction thereof. Referring to door height:

Suggested # of Door Hinges

Radius of a Hinge - To determine if you have a 1/4" or 5/8" radius corner hinge, measure the beginning of the curve to where the corner of the hinge would be if it were square.

Door Hinge Radius

About Deltana Enterprises - Architectural Hardware

Deltana - Architectural Hardware

Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories America's largest selection of architectural and door hardware in over nine fine finishes made from solid brass, zinc, aluminum, steel and stainless steel.

View more Architectural & Door Hardware from Deltana Enterprises.
