Forever Hardware Solid Bronze Gate Case Latch & Butt Hinge Kit - Tapered Square Lever - 3 Hinge

Solid Bronze Door/Gate Case Latch Kit

This solid bronze gate case latch hardware kit with square taper handle is designed to fit outswing gates up to 3 1/2" thick and can be activated on both sides.

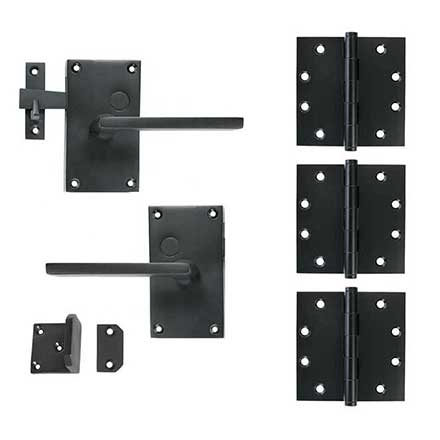

This gate kit includes (3) Butt Hinges, (1) contemporary case latch and (1) gate stop for proper closing.

The kit is available in multiple finishes, lead time applies for special finish selections.

Every piece of hardware from Forever Gate & door Hardware is made with the greatest care & premium materials. Each piece is hand-poured and individually made for the best precision and functionality.

• Install on gates up to 3 1/2" thick
• Case Latch: 5" H x 2 3/4" Case, 3/4" TH - (1 1/4" Oval | #10 Stainless)
• Butt Hinge: 4" H x 4" W x 1/8" D (3.2mm) - Extruded Bronze (#12 x 1 1/4" Brass) - Weight Load (Pair): 80 lbs.
• Gate Stop: 1 3/4" H x 1 3/4" W, 1 3/2" Projection, 1/4" TH (1 1/4" Flat | #10 Stainless Fasteners)
• Latch Drop Bar extends 1 1/2"

Forever Hardware Gate Case Latch Hardware Kit

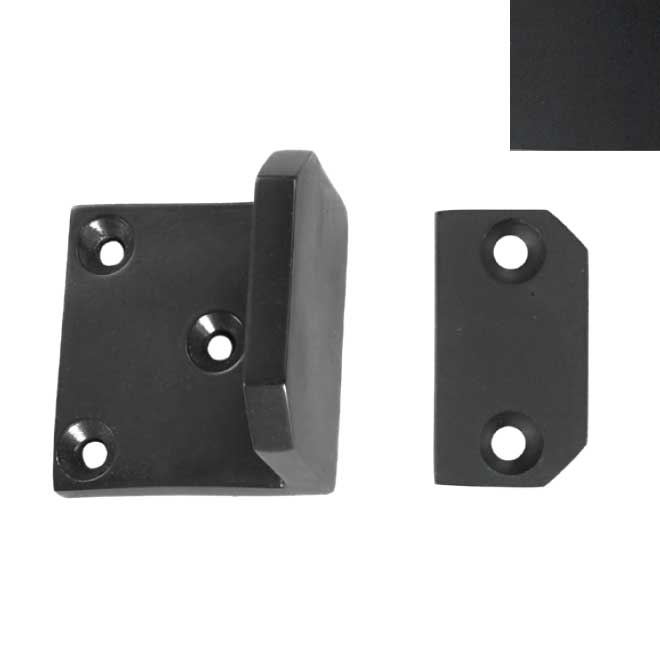

Forever Hardware [F2-550] Solid Bronze Gate Stop

Typical Installation

What can happen when your gate handle is not installed properly?

The need for a proper gate stop is made apparant when viewing this image of one of our bronze gate handles. The gate stop is an alignment device that can prevent hinge, latch and gate damage and will also help prolong the life of your gate.

If a gate stop is not installed on your gate, the risk of damage to the gate and its hardware is increased and as a result, normal usage of the gate can result in fractured handles and hinges. The image demonstrates the kind of fracture that can occur when a strong gust of wind or a heavy hand closes the gate without a gate stop.

If installing a gate with Forever Hardware gate hardware, keep in mind the necessity for the Gate Stop to increase the integrity and life of your gate. This simple piece of hardware can help prevent unnecessary damage to your gate and gate hardware. Additionally, using a gate stop ensures the Forever Hardware warranty remains intact.
