Rolling Barn Door Hardware Kit
This 142 Series flat track rolling barn door hardware kit by Leatherneck Hardware includes all the necessary components to hang doors up to 400 lbs. in standard size openings.

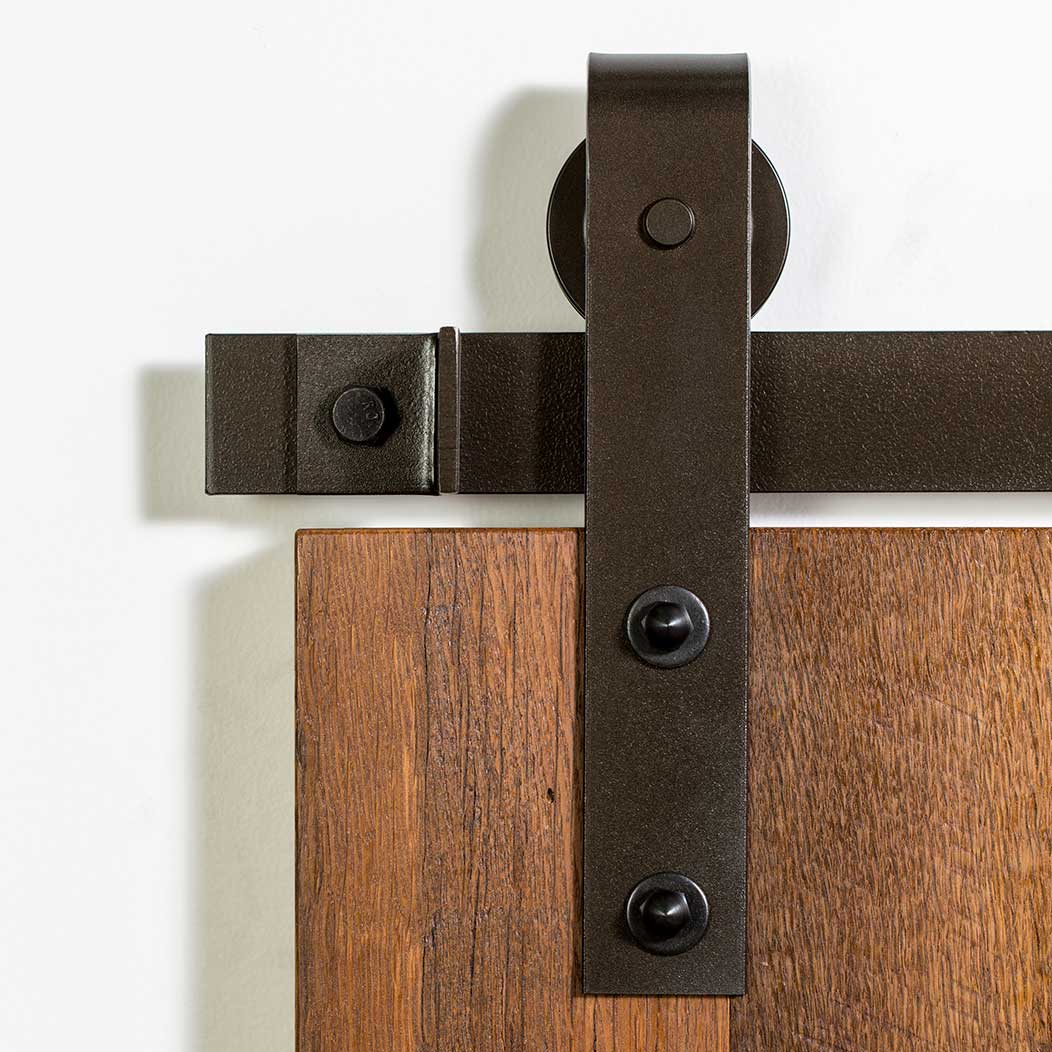

This Single Barn Door track kit uses the 402 Straight Hanger with a 5' overhead flat track and 1 1/8" spacers in a painted bronze finish.
This standard kit is designed to work with a single panel no thicker than 1 3/4". Options available for thicker panels and bi-parting systems.

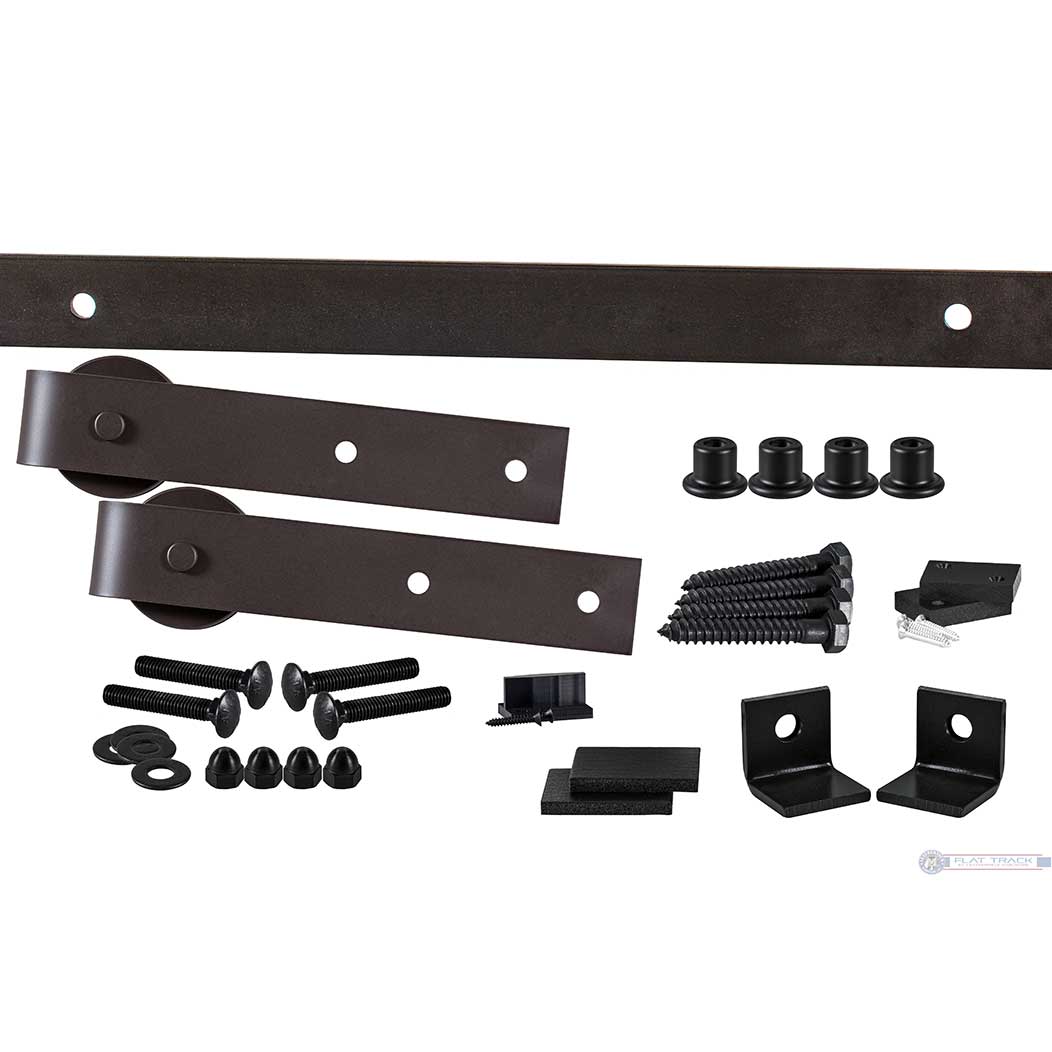

Track Door Kit Includes:
- Painted Bronze Finish - 5 Business Day Lead Time Required
- (1) 5' Flat Track (1/4" TH x 2" W)
- (2) 402 Straight Wheel Hangers
- (4-7*) 1 1/8" Spacer/Washer Combo w/ lag screws (* based on track length)
- (2) Door Stop w/ Cushion
- (2) Anti-Jump Blocks
- (1) Bottom Fin Door Guide (Black UHMW)
- Step-by-Step Installation Instructions
Typical Wheel & Carrier Weight Limit:
Weight limits assume proper installation of Track mounted securely to structural framework.
- 402 Straight Carrier = 400 lbs.
Leatherneck Hardware 1024-8001 Rolling Barn Door Hardware Kit:
Track Kit Specifications:
Typical Installation:
