Snug Cottage [8295-362] Forged Steel Gate Strap Hinge Set - Cranked Band w/ Pin - Hot Dipped Galvanized Finish - 36" L - Pair

Forged Steel Gate Strap Hinge

This Hot Dipped Galvanized Finish forged steel gate strap hinge set from the Signature Collection by Snug Cottage Hardware combines a traditional design with exceptional strength and installation versatility. Intended for wood applications, the band hinge and pintle combination can be mounted flush with the front of the post or are ideal when a gates needs to be setback from the front of the post but still maintain a tight fit.

• Forged Steel Strap Hinge Set - Cranked Band w/ Pintle
• Hot Dipped Galvanized Finish
• Strap: 36 1/2" L x 2 1/4" W, 3/4" Dia. Pin
• Pintle Plate: 7 7/8" H x 2 1/4" W, 3/4" Dia. Pin
• Non-Handed - Reversible
• Install Flush or Offset
• Fasteners Included - #12 x 2" SS Wood Screws
• Price Per Pair - Carriage bolts not included - See related items below

CARRIAGE BOLTS - A carriage bolt is required for each hinge. Hinge sizes 7” to 16” require 3/8” dia. bolts and 18” to 24” require ½” dia. bolts. These are not included with the hinge pairs because the length of bolt needed will vary with each installation. Order bolts 1” longer than the overall thickness of your gate or door.

FINISH - the hot dip galvanizing process, provides primary corrosion prevention for our steel hardware. During this process, the hardware is washed in acid and then dipped into a vat of molten, corrosion-resistant zinc. This process is not exact, and while all parts of our hardware are coated, the coating thickness may vary resulting in slight aesthetic imperfections to the finish. That being said, hot dip galvanizing is an integral step in our superior metal finishing process as it creates a metallurgical bond between the steel and the zinc coating. Therefore, in the event of damage, rust is unable to migrate to other parts of the product.

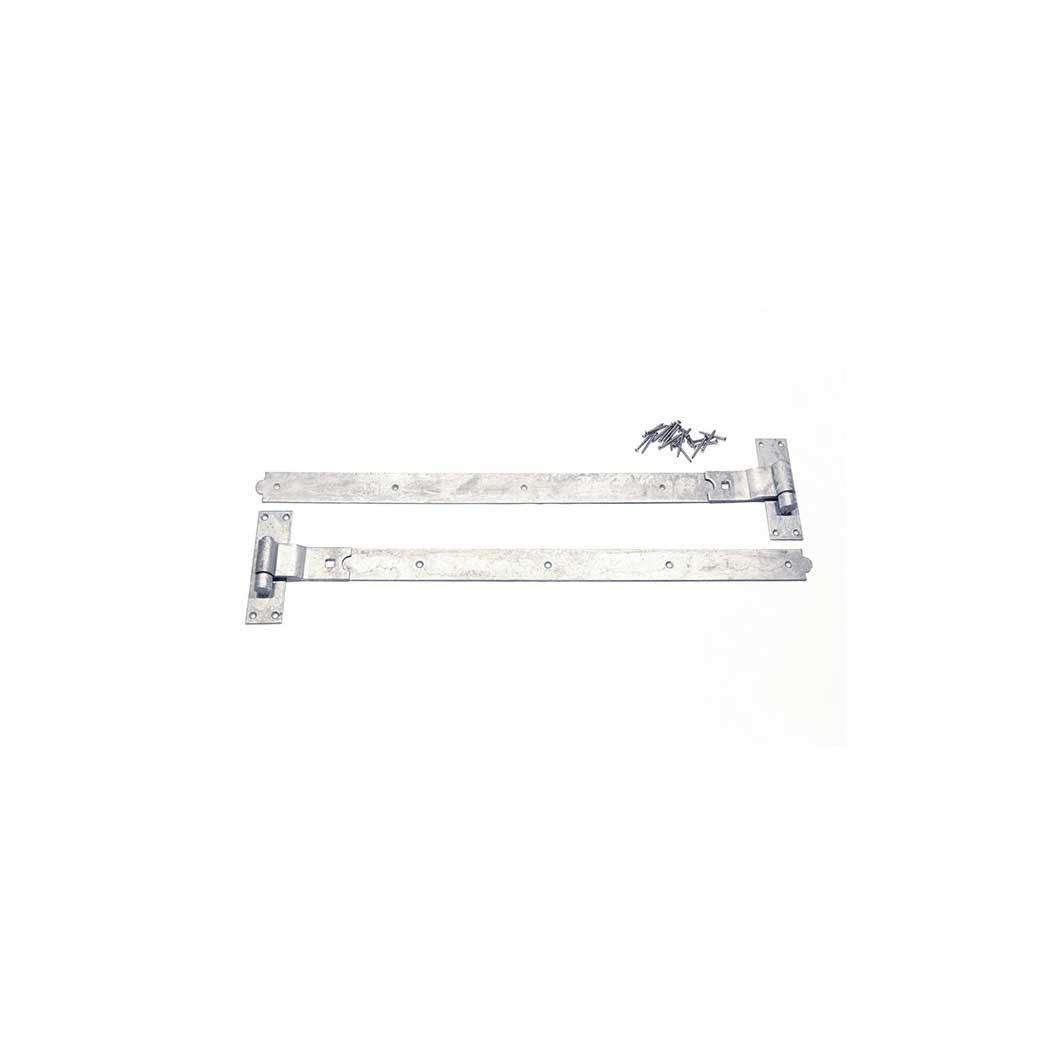

Snug Cottage [8295-362] Gate Strap Hinge:

Snug Cottage Cranked Gate Strap Hinge & Pintle:

Snug Cottage 8295-36 Gate Strap Hinge Specifications:

Snug Cottage 8295 Gate Strap Hinge Typical Installaion:
