Forged Steel Gate Strap Hinge
This Black (BPPCG) Finish forged steel adjustable gate strap hinge set from the Signature Collection by Snug Cottage Hardware is a variation of the traditional cranked bands with pins that allow for easy lateral adjustment in case the post or gate shifts/moves. Intended for use on flush mounted, wood gates and doors.
- Forged Steel Strap Hinge Set - Adjusatble Cranked Band w/ Pintle
- Black (BPPCG) Finish
- Strap: 12 1/4" L x 1 1/2" W, 1/2" Dia. Pin
- Pintle Plate: 5 1/4" H x 1 1/2" W, 1/2" Dia. Pin
- Non-Handed - Reversible
- Install Flush
- Fasteners Included - #12 x 2" SS Wood Screws
- Price Per Pair - Carriage bolts not included - See related items below
CARRIAGE BOLTS - A carriage bolt is required for each hinge. Hinge sizes 7” to 16” require 3/8” dia. bolts and 18” to 24” require ½” dia. bolts. These are not included with the hinge pairs because the length of bolt needed will vary with each installation. Order bolts 1” longer than the overall thickness of your gate or door.
FINISH - BPPCG is an acronym for Black Polyester Powder Coat over Galvanize. In addition to our Hot Dipped Galvanize Finish and Black / White Powder Coat Finishes, we also offer a wide range of our hardware with a BPPCG Finish. Our carbon steel products are hot dip galvanized, cleaned, e-coated and then powder coated as part of the BPPCG process. In the event of surface damage, this multi-layered protective coating minimizes the potential spread of corrosion. The Snug Cottage Hardware BPPCG finishing process is far superior to products coated over raw carbon steel and allows us to offer a wide range of larger hardware options, that are rust free, without the extra cost of producing them from stainless steel.
Snug Cottage [8295-12ASP] Gate Strap Hinge:

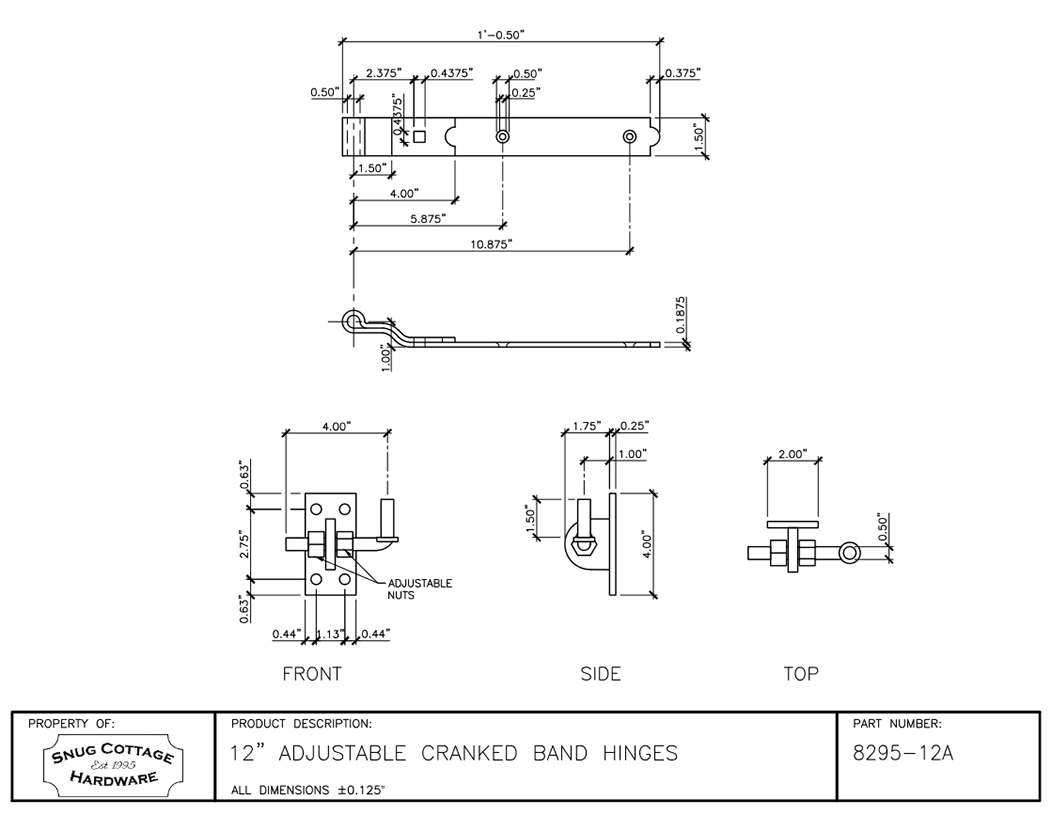

Snug Cottage 8295-12A Gate Strap Hinge Specifications:

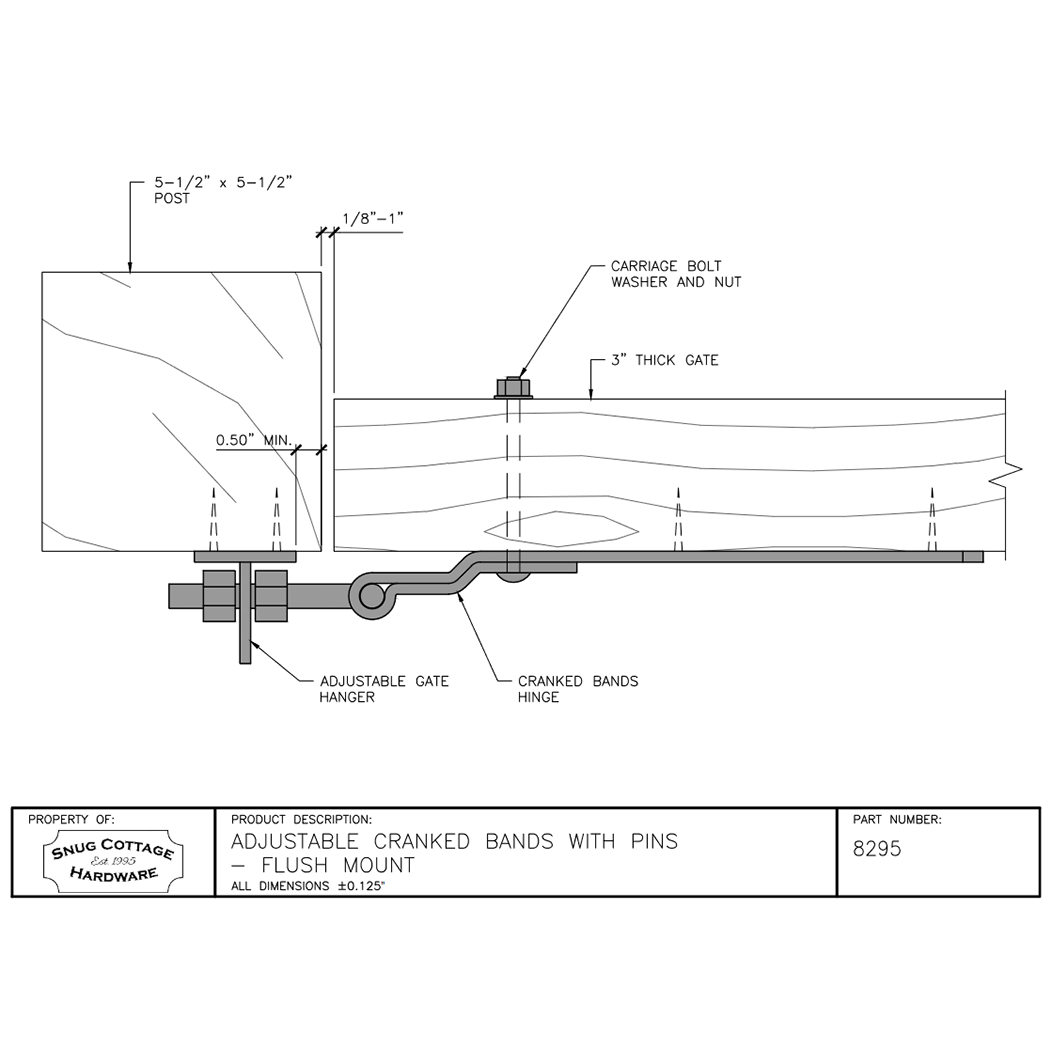

Snug Cottage 8295-12A Gate Strap Hinge Typical Installaion:
