Forged Steel Gate Strap Hinge
This Hot Dipped Galvanized Finish forged steel adjustable gate strap hinge set from the Signature Collection by Snug Cottage Hardware is a variation of the traditional cranked bands with pins that allow for easy lateral adjustment in case the post or gate shifts/moves. Intended for use on flush mounted, wood gates and doors.
- Forged Steel Strap Hinge Set - Adjusatble Cranked Band w/ Pintle
- Hot Dipped Galvanized Finish
- Strap: 12 1/4" L x 1 1/2" W, 1/2" Dia. Pin
- Pintle Plate: 5 1/4" H x 1 1/2" W, 1/2" Dia. Pin
- Non-Handed - Reversible
- Install Flush
- Fasteners Included - #12 x 2" SS Wood Screws
- Price Per Pair - Carriage bolts not included - See related items below
CARRIAGE BOLTS - A carriage bolt is required for each hinge. Hinge sizes 7” to 16” require 3/8” dia. bolts and 18” to 24” require ½” dia. bolts. These are not included with the hinge pairs because the length of bolt needed will vary with each installation. Order bolts 1” longer than the overall thickness of your gate or door.
FINISH - the hot dip galvanizing process, provides primary corrosion prevention for our steel hardware. During this process, the hardware is washed in acid and then dipped into a vat of molten, corrosion-resistant zinc. This process is not exact, and while all parts of our hardware are coated, the coating thickness may vary resulting in slight aesthetic imperfections to the finish. That being said, hot dip galvanizing is an integral step in our superior metal finishing process as it creates a metallurgical bond between the steel and the zinc coating. Therefore, in the event of damage, rust is unable to migrate to other parts of the product.

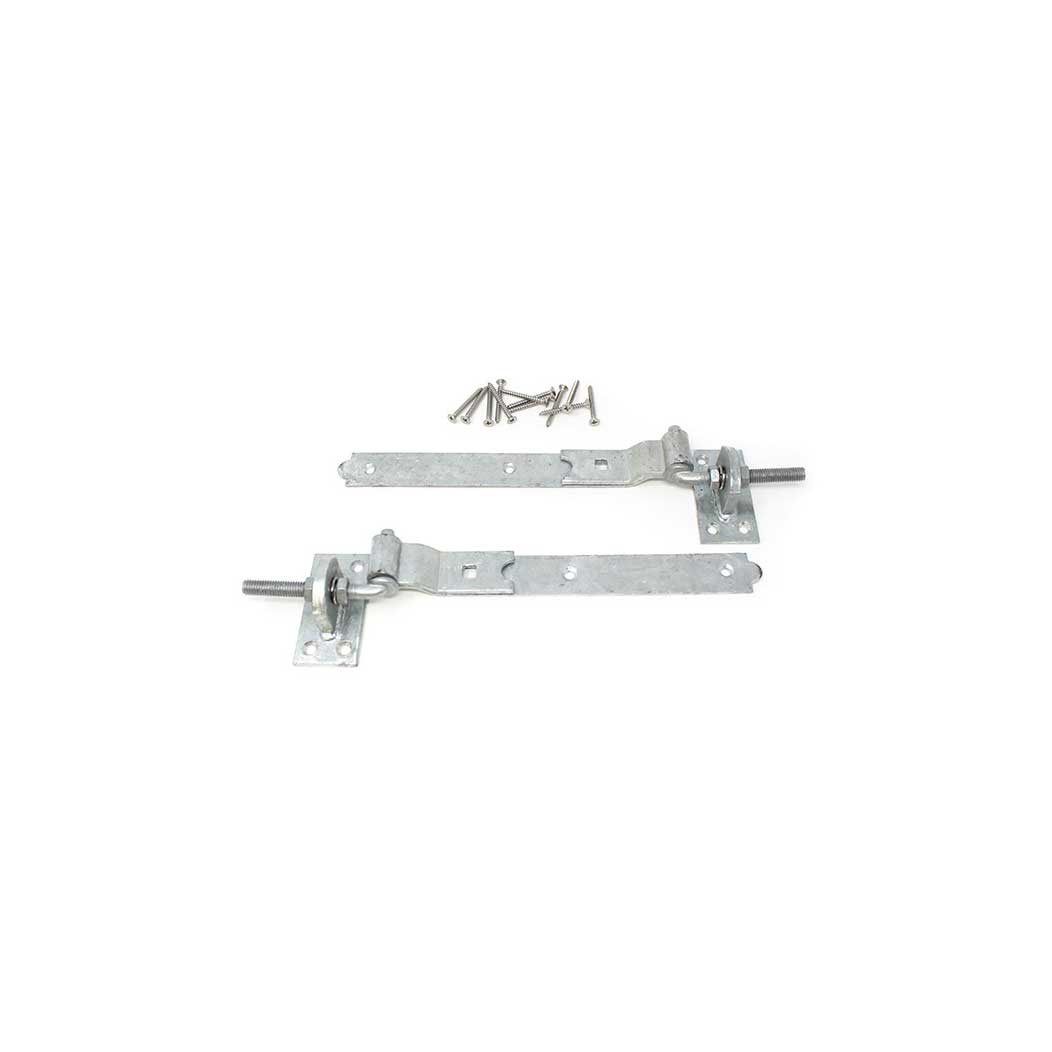

Snug Cottage [8295-12A2] Gate Strap Hinge:
Snug Cottage 8295-12A Gate Strap Hinge Specifications:
Snug Cottage 8295-12A Gate Strap Hinge Typical Installaion:
