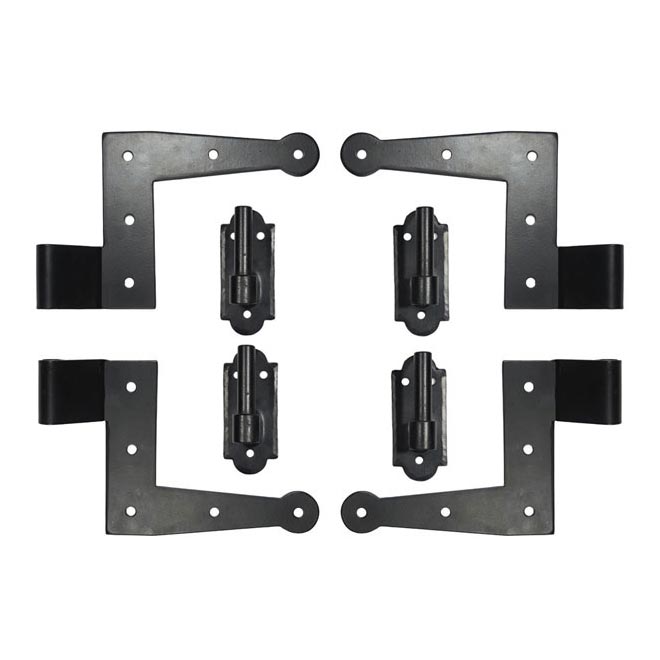

Stainless Steel Shutter L Hinge Set
- Stainless Steel Suffolk Style "L" Hinge Set - Flat Mount
- Complete set for 1 window with 2 shutters
- 2 Pairs of "L" Hinges
- 2 Pairs of 3/4" Offset Rounded Plate Mount Pintles - Flat mount for minimum projection in opened position (See Diagram Below).
- Includes: (20) #8 x 3/4" Panhead Phillips Black SS
- Includes: (12) #8 x 1 1/2" Panhead Phillips Black SS
SET INCLUDES

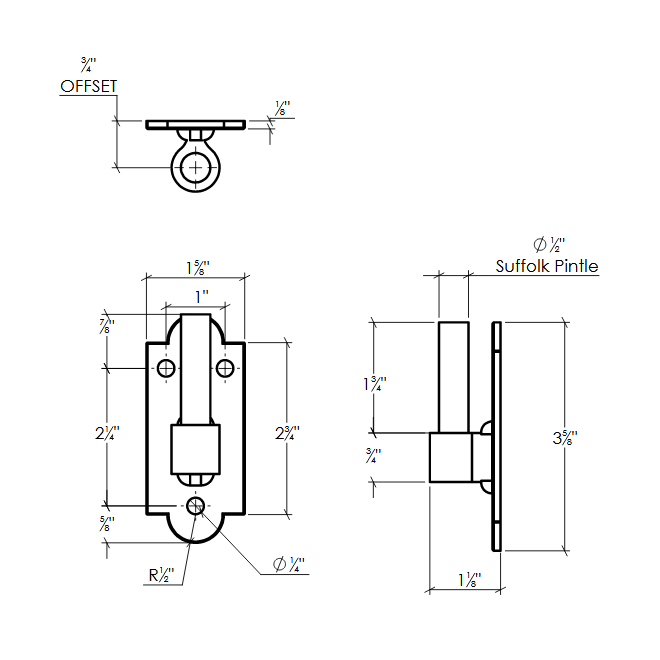

- 2 Pairs - EHP SS 0.75 - Rounded Plate Pintles

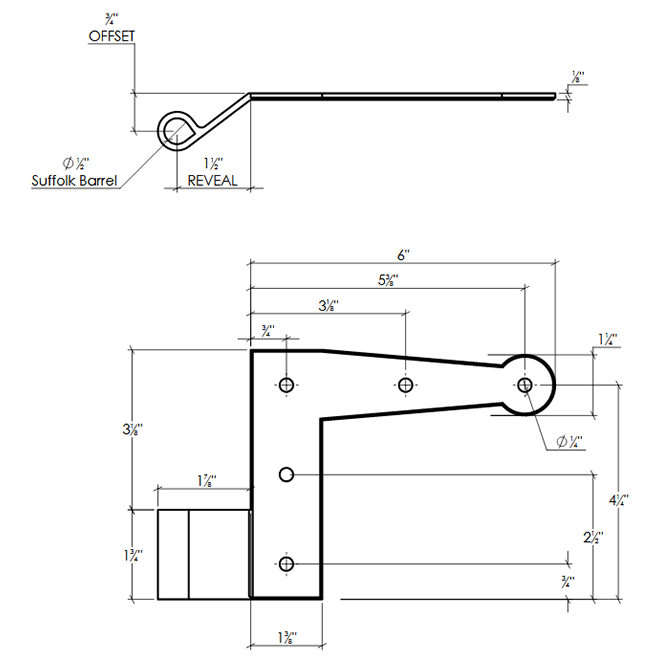

- 2 Pairs - EHL SS 0.75 - Suffolk Style Strap Hinges
SF200SS Specifications

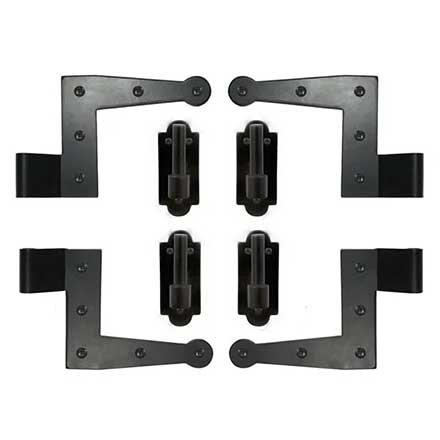

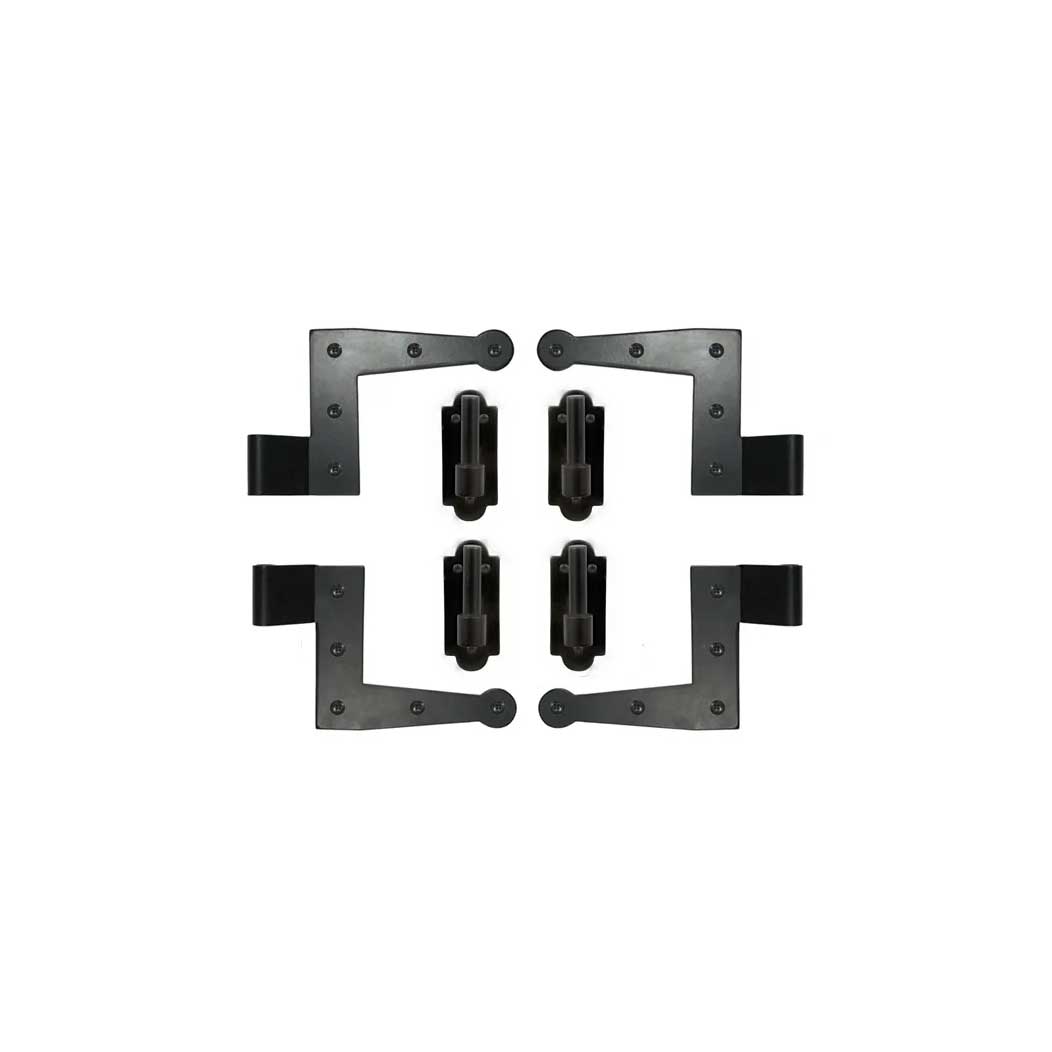

Lynn Cove Foundry [SF200SS] Shutter Hinge Set
Typical Installation
