Sliding Bahama Shutter Hinge Set

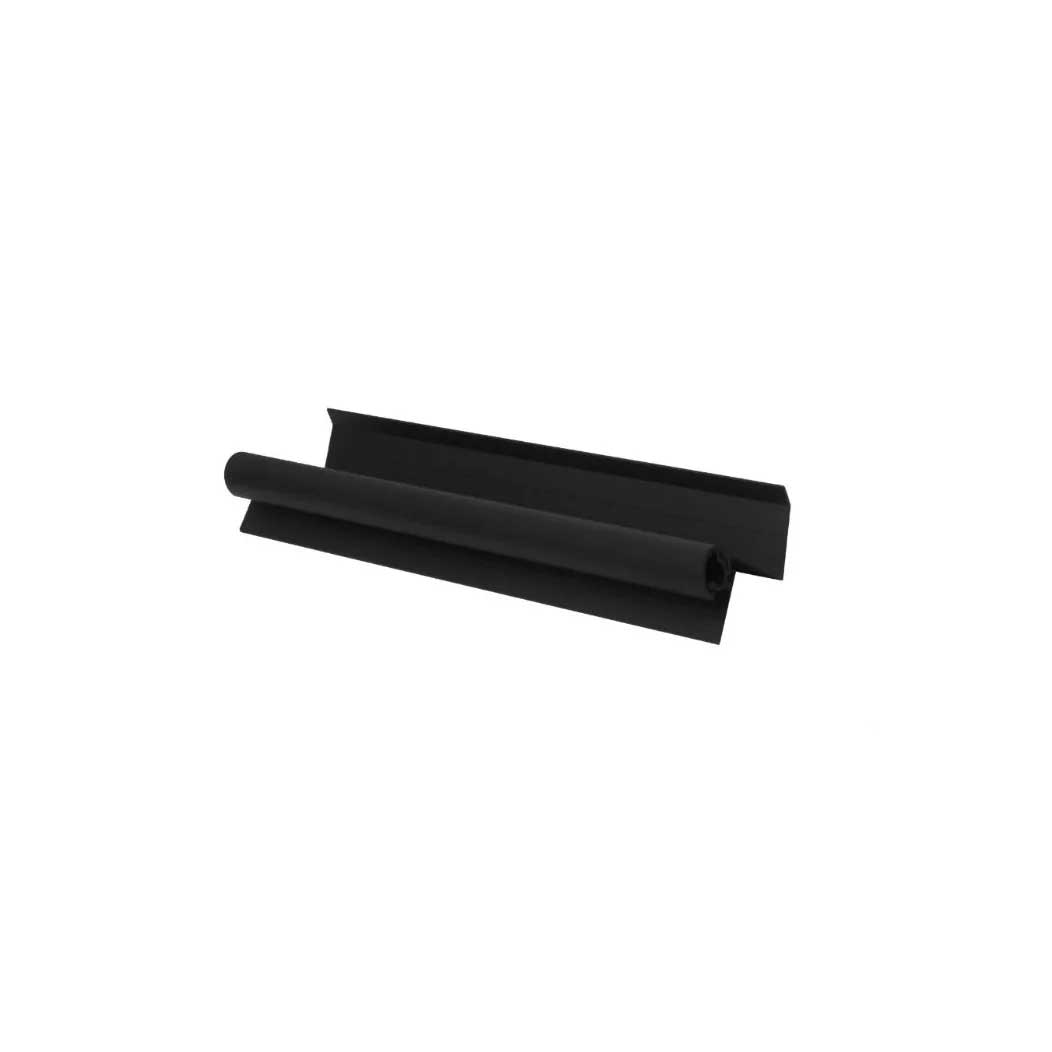

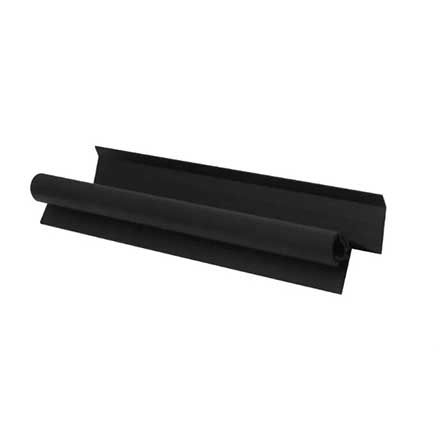

- Extruded Aluminum Sliding Bahama Shutter Hinge Set - Powder Coat Black
- 48" Long - Field Cut To Length
- FASTENERS NOT INCLUDED
- FASTENER HOLES NOT PRE-DRILLED - Field Drill to Suit

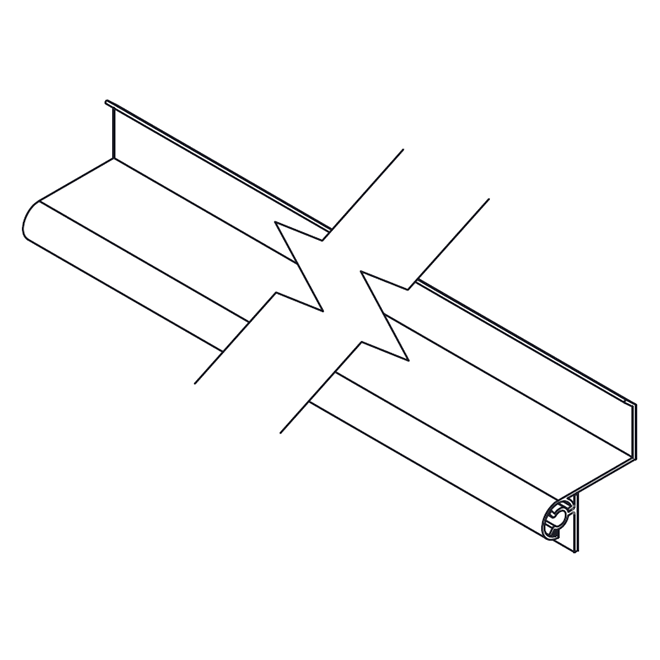

- Set consists of 2 components - when combined, assembly provides 1 1/2" gap from surface (see diagram below for typical installation)

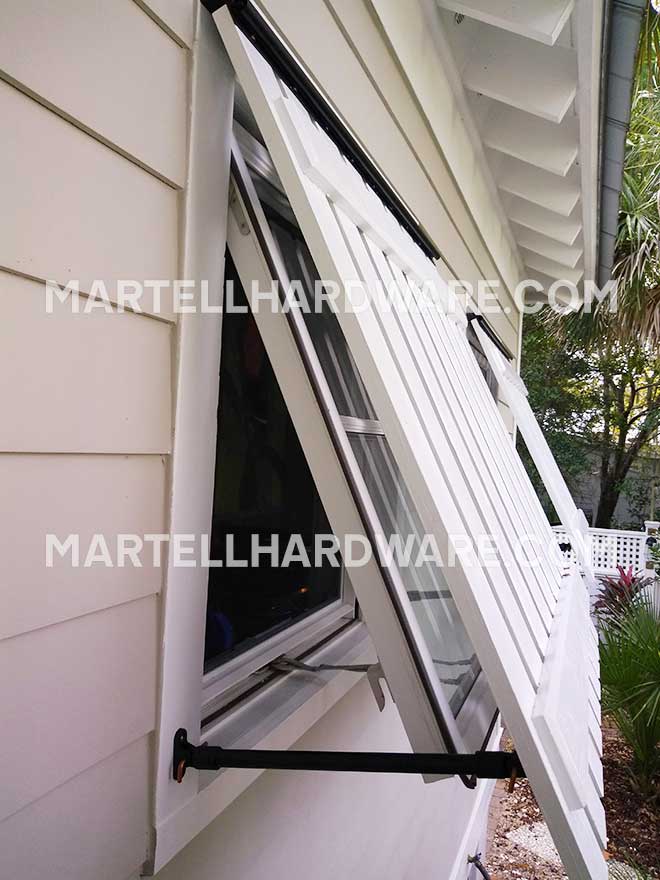

- Traditional installation mounts bar to face of shutter
INSTALLATION SUGGESTIONS:
- Hinge Set will support a shutter weight of up to 200 lbs.
- Structure Hinge - Recommend a screw along the length mounting to the structure every 9”
with at least 2” of penetration
- Shutter Hinge - Recommend a screw along the length mounting to the shutter every 12” with at least 3/4” penetration
- The structure & shutter hinge center-line is marked with small groove for fastener positioning

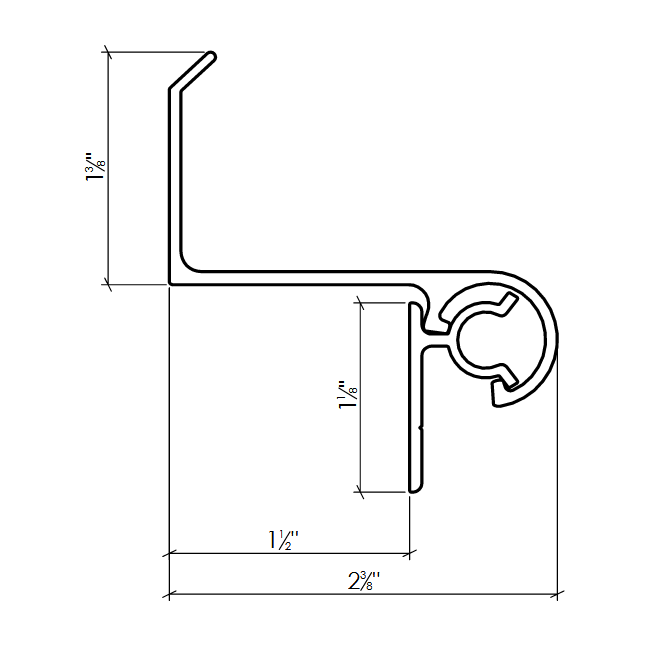

E-HNG-01 Specifications
Lynn Cove Foundry [E-HNG-01] Sliding Bahama Shutter Hinge Set

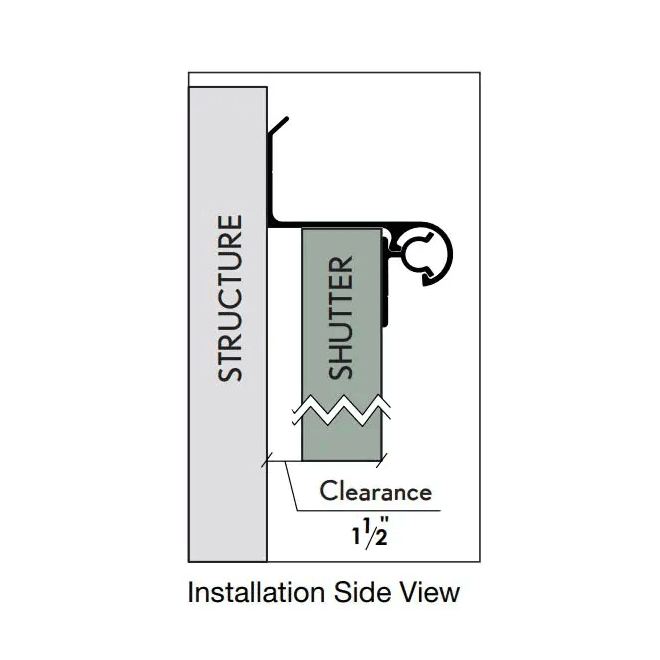

Bahama Shutter Set Typical Installation
